CRANKCASE
KZ1000P2 POLICE 1000 1983 USA

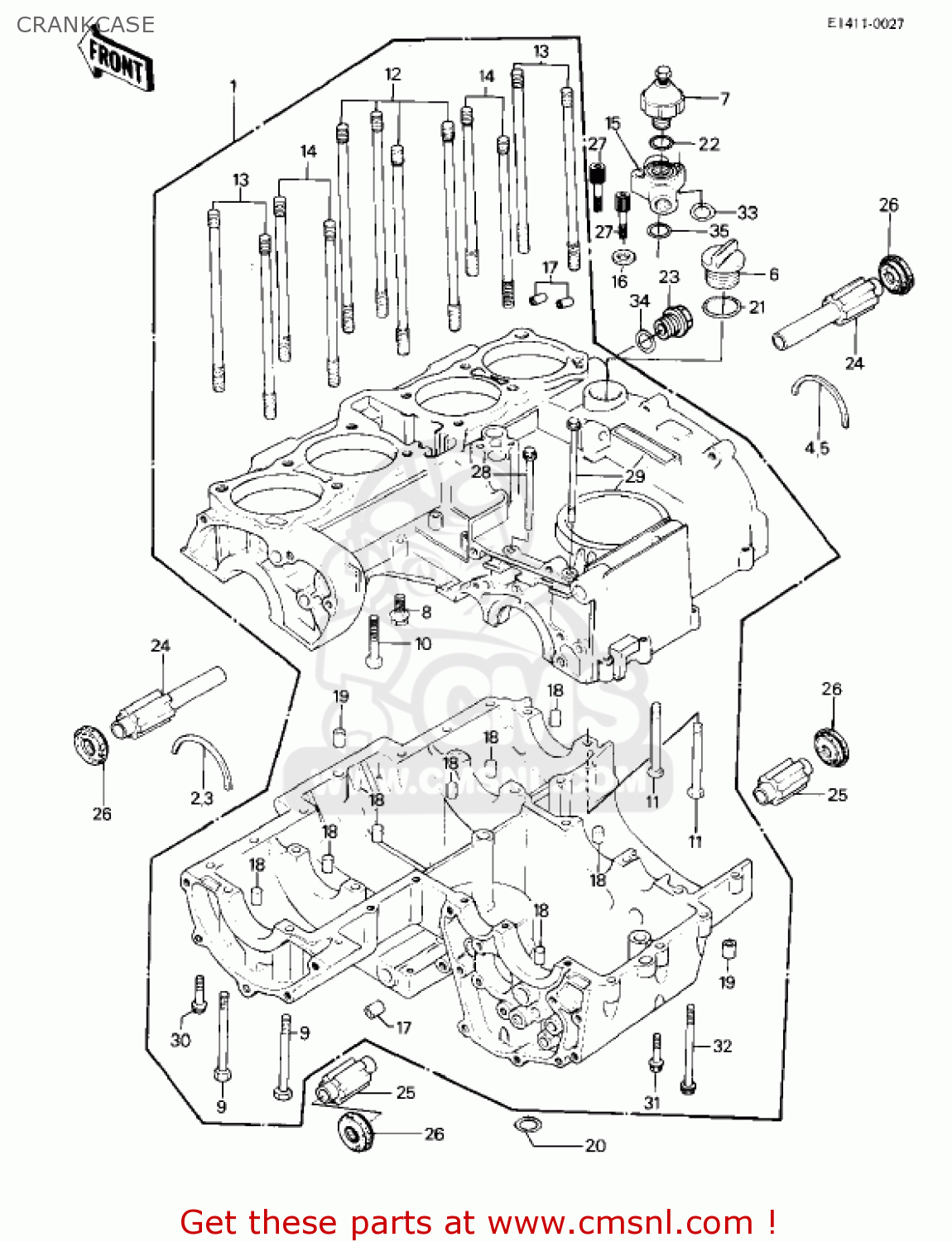

Crankcase diagram KZ1000P2 POLICE 1000 1983 USA
CRANKCASE KZ1000P2 POLICE 1000 1983 USA
×
prices are in EUR
ref
part #
description
quantity
1
140015099
ref: 1
SET-CRANKCASE,SILVER
€ 2,315.50
2
14013013
ref: 2
RING-POSITION,T=1.90
€ 7.50
3
140131004
ref: 3
RING-POSITION,CRANK
€ 3.00
4
140131005
ref: 4
RING-POSITION
€ 3.00
5
140131006
ref: 5
RING-POSITION,T=1.90
€ 3.50
6
16115013
ref: 6
PLUG-OIL FILLER
€ 13.50
7
270101013
ref: 7
SWITCH,OIL PRESSURE
€ 28.50
8
920011349
ref: 8
BOLT,FLANGED,8X16
€ 3.50
9
130P0895
ref: 9
KZ1000-P1
BOLT-FLANGED,8X95
€ 7.00
9
130P0895
ref: 9
KZ1000-P2/P3
BOLT-FLANGED,8X95
€ 7.00
9
920021077
ref: 9
KZ1000-P4/P5
BOLT,8X95
€ 7.50
10
92003107
ref: 10
KZ1000-P1/P2/P3
BOLT-HEX HEAD,8X72
€ 10.00
11
920021329
ref: 11
KZ1000-P4/P5
BOLT,8X72
€ 6.50
11
92003108
ref: 11
KZ1000-P1/P2/P3
BOLT-HEX HEAD,8X81
€ 4.50
11
920021330
ref: 11
KZ1000-P4/P5
BOLT,8X80
€ 4.50
12
920041002
ref: 12
STUD, 10X167
€ 10.50
13
920041003
ref: 13
STUD, 10X158
€ 10.50
14
920041004
ref: 14
STUD, 10X133
€ 11.50
15
920051030
ref: 15
FITTING,OIL PRESSURE
€ 45.50
16
920221086
ref: 16
WASHER,8.2X16X1
€ 2.50
17
92042007
ref: 17
PIN-DOWEL
€ 4.00
18
92042016
ref: 18
PIN,DOWEL,6X16
€ 3.50
19
920431037
ref: 19
PIN,DOWEL,10X8.2X14
€ 0.50
20
92055048
ref: 20
RING-O,OD=18
€ 3.00
21
92055049
ref: 21
'0'RING,31MM
€ 2.50
22
92055055
ref: 22
'0'RING
€ 2.50
23
92066021
ref: 23
PLUG,14X12
€ 15.00
24
920751272
ref: 24
DAMPER,ENGINE MOUNT,U
€ 32.50
25
920751273
ref: 25
DAMPER,ENGINE MOUNT,L
€ 19.00
26
920751274
ref: 26
DAMPER,ENG MOUNT,SIDE
€ 11.00
27
120P0835
ref: 27
KZ1000-P1/P2/P3
BOLT-SOCKET,8X35
€ 2.00
27
120Z0835
ref: 27
KZ1000-P4/P5/P6
BOLT-SOCKET
€ 2.50
28
130G06100
ref: 28
KZ1000-P1/P2/P3
BOLT-FLANGED,6X100
€ 2.50
28
130Y06100
ref: 28
KZ1000-P4/P5
BOLT-FLANGED
€ 4.50
29
130G06115
ref: 29
KZ1000-P1/P2/P3
BOLT-FLANGED,6X115
€ 2.50
29
130Y06115
ref: 29
KZ1000-P4/P5
BOLT-FLANGED
€ 3.50
30
130G0640
ref: 30
KZ1000-P1/P2/P3
BOLT,FLANGED,6X40
€ 0.50
30
130Y0640
ref: 30
KZ1000-P4/P5
BOLT-FLANGED
€ 3.00
31
130Y0655
ref: 31
BOLT-FLANGED
€ 3.00
32
130Y0695
ref: 32
BOLT-FLANGED
€ 3.50
33
670B1509
ref: 33
O RING,9MM
€ 1.00
34
670B2015
ref: 34
O RING,15MM
€ 1.00
35
670B2018
ref: 35
O RING,18MM
€ 1.00
