REAR HUB/CHAIN ('77-'78 A1/A2/A2
KZ1000A3A KZ1000 1979 CANADA

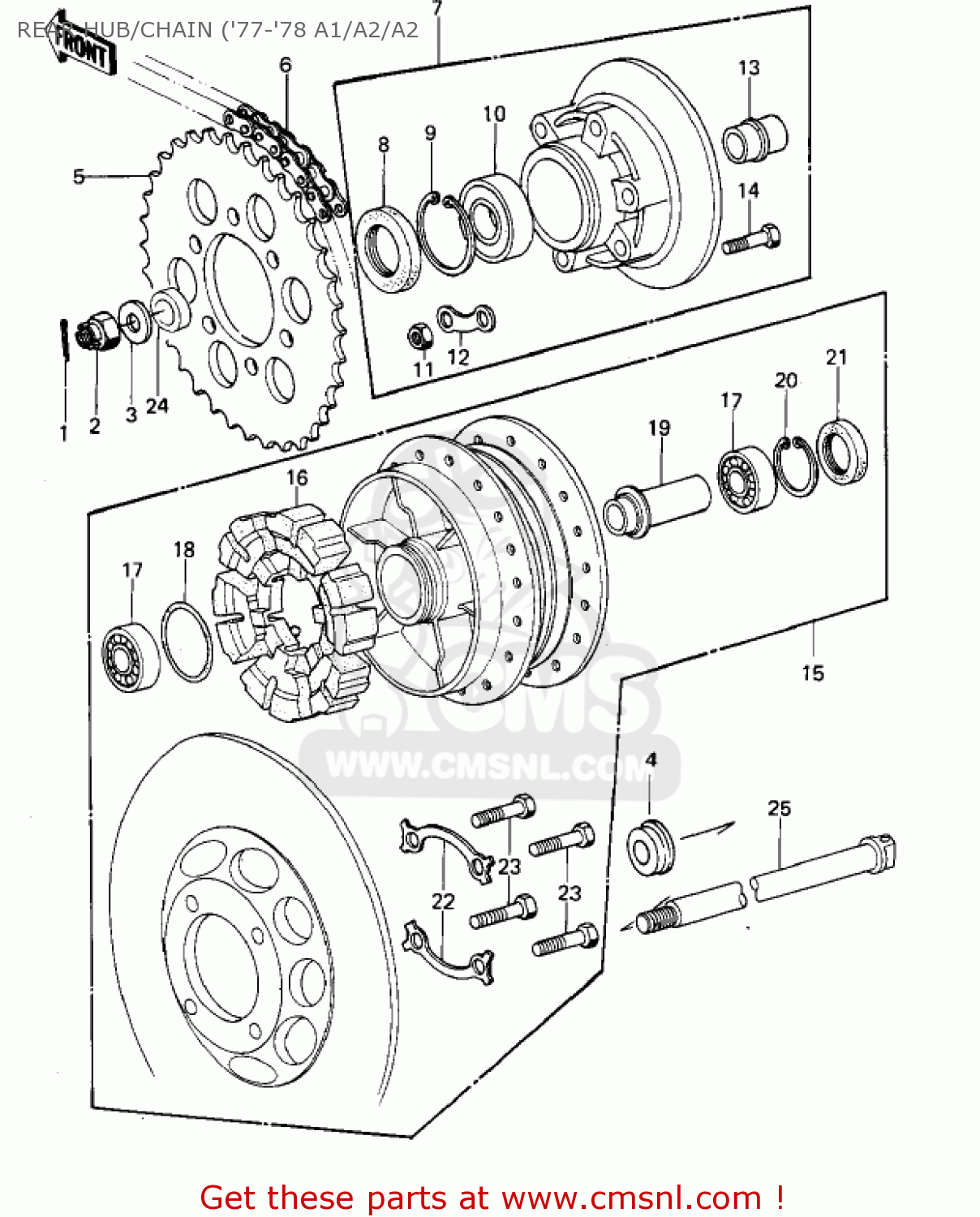

Rear hub/chain ('77-'78 a1/a2/a2 diagram KZ1000A3A KZ1000 1979 CANADA
REAR HUB/CHAIN ('77-'78 A1/A2/A2 KZ1000A3A KZ1000 1979 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
550D4035
ref: 1
PIN-COTTER,4.0X35
€ 1.00
2
42045018
ref: 2
NUT,18MM
€ 7.50
3
92022248
ref: 3
WASHER,20.3X34X4.5
€ 7.50
4
42032070
ref: 4
COLLAR,L=31
€ 46.00
5
420411010
ref: 5
REAR SPROCKET,33T
€ 51.00
6
92057107
ref: 6
CHAIN ASSY, DRIVE
€ 168.00
7
42008034
ref: 7
COUPLING ASSY, REAR
€ 132.50
8
92050027
ref: 8
OIL SEAL
€ 13.50
9
920331044
ref: 9
CIRCLIP 62 M/M
€ 7.50
10
601B6206
ref: 10
BEARING-BALL,#6206C3
€ 19.50
11
42045005
ref: 11
NUT,10MM
€ 5.00
12
92088007
ref: 12
WASHER,LOCK
€ 8.00
13
42036024
ref: 13
SLEEVE,RR HUB COUPLIN
€ 43.50
14
920011208
ref: 14
BOLT,TORQUE ROD,FRONT
€ 3.50
15
42005053
ref: 15
DRUM ASSY, REAR BRAKE
€ 348.00
16
42014028
ref: 16
DAMPER,RR HUB SHOCK
€ 89.50
17
601B6304
ref: 17
BEARING-BALL,#6304C3
€ 31.00
18
671B2560
ref: 18
O RING,60MM
€ 1.50
19
42010030
ref: 19
COLLAR,BEARING
€ 14.50
20
920331043
ref: 20
RING,SNAP,56.2M/M
€ 6.00
21
92052006
ref: 21
OIL SEAL WTC35527
€ 6.50
22
92088023
ref: 22
WASHER,LOCK
€ 6.00
23
92001158
ref: 23
BOLT
€ 2.00
24
42032071
ref: 24
COLLAR, REAR AXLE
€ 8.00
25
42031034
ref: 25
AXLE,RR
€ 87.50
