CLUTCH ('77-'78 A1/A2/A2A)
KZ1000A3A KZ1000 1979 CANADA

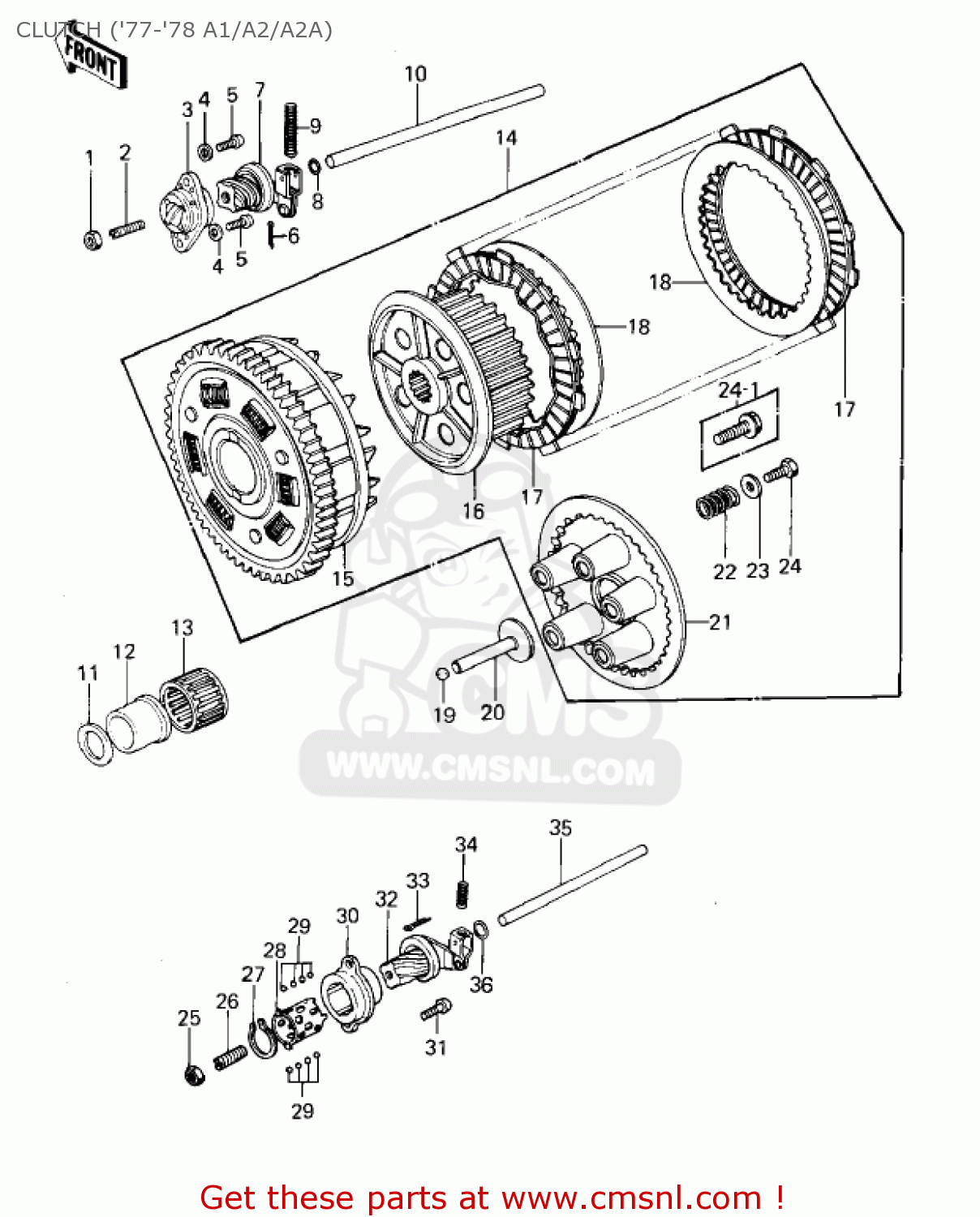

Clutch ('77-'78 a1/a2/a2a) diagram KZ1000A3A KZ1000 1979 CANADA
CLUTCH ('77-'78 A1/A2/A2A) KZ1000A3A KZ1000 1979 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
315B0800
ref: 1
NUT,8MM
€ 0.50
2
92014014
ref: 2
SCREW-SLOTTED,8X25
€ 4.00
3
13118007
ref: 3
OUTER-CLUTCH RELEASE
€ 16.00
4
411B0600
ref: 4
WASHER-PLAIN,6MM
€ 0.50
5
220B0616
ref: 5
SCREW-PAN HEAD,6X16
€ 2.50
6
550D1615
ref: 6
E/NO. 1~025467
PIN-COTTER,1.6X15
€ 1.50
7
13102013
ref: 7
1NNER-CLUTCH RELEASE
€ 56.50
8
670B1507
ref: 8
O RING,7MM
€ 1.00
9
92081069
ref: 9
SPRING-CLUTCH RELEASE
€ 4.50
10
13116021
ref: 10
ROD-PUSH,CLUTCH
€ 15.50
11
92026022
ref: 11
SPACER,25.5X47X2.5
€ 6.50
12
92028135
ref: 12
BUSHING,CLUTCH
€ 35.50
13
92046028
ref: 13
KTV323723
BEARING-NEEDLE,KTV323
€ 20.50
14
130811014
ref: 14
WHN EXH USE 13081-10
CLUTCH ASSY
€ 636.50
14
130811014
ref: 14
CLUTCH ASSY
€ 636.50
15
130811367
ref: 15
CLUTCH-ASSY
€ 636.50
16
130811367
ref: 16
CLUTCH-ASSY
€ 636.50
17
13088030
ref: 17
PLATE-FRICTION (NAS)
€ 14.50
18
13089022
ref: 18
PLATE-CLUTCH (NAS)
€ 8.50
19
600A1200
ref: 19
BALL-STEEL,3/8
€ 0.50
20
13116022
ref: 20
ROD-PUSH,CLUTCH SPRIN
€ 15.50
21
13187006
ref: 21
PLATE-CLUTCH OPERATIN (NAS)
€ 44.50
22
920811033
ref: 22
WHN EXH USE 92081-10
SPRING,CLUTCH
€ 6.50
22
920811033
ref: 22
SPRING,CLUTCH
€ 6.50
23
13091011
ref: 23
NOT USE FOR P/NO. 92
HOLDER,CLUTCH SPRING
€ 2.50
24
112G0618
ref: 24
BOLT-UPSET
€ 0.50
24-1
920011066
ref: 24-1
BOLT, CLUTCH SPR FITT
€ 4.00
25
318B0800
ref: 25
NUT,8MM
€ 0.50
26
92014014
ref: 26
SCREW-SLOTTED,8X25
€ 4.00
27
480J1500
ref: 27
CIRCLIP-TYPE-C,15MM
€ 1.00
28
13197004
ref: 28
RETAINER
€ 1.00
29
600A0400
ref: 29
BALL-STEEL,1/8
€ 2.00
30
13118011
ref: 30
E/NO. 025468~
OUTER,CLUTCH REREASEL
€ 14.00
31
220B0616
ref: 31
SCREW-PAN HEAD,6X16
€ 2.50
32
13102019
ref: 32
INNER,CLUTCH RELEASE
€ 48.00
33
550D1615
ref: 33
PIN-COTTER,1.6X15
€ 1.50
34
92081069
ref: 34
SPRING-CLUTCH RELEASE
€ 4.50
35
13116021
ref: 35
ROD-PUSH,CLUTCH
€ 15.50
36
670B1507
ref: 36
O RING,7MM
€ 1.00
