FRONT HUB ('77-'78 A1/A2/A2A)
KZ1000A1 1977 CANADA

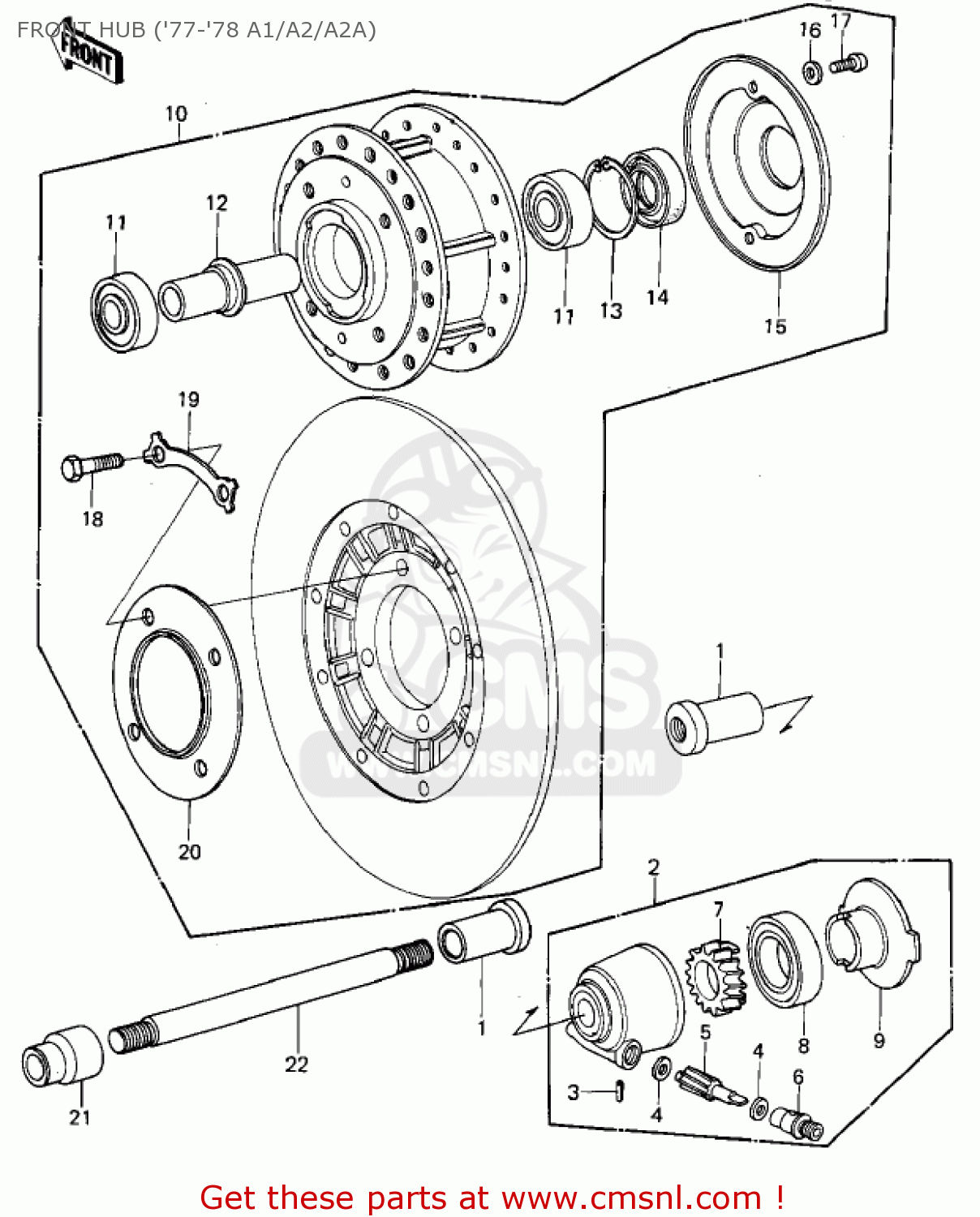

Front hub ('77-'78 a1/a2/a2a) diagram KZ1000A1 1977 CANADA
FRONT HUB ('77-'78 A1/A2/A2A) KZ1000A1 1977 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
41069033
ref: 1
COLLAR,FRONT AXLE
€ 22.00
2
41078008
ref: 2
CASE-ASSY-METER GEAR
€ 118.00
3
41082001
ref: 3
PIN-SPRING
€ 2.50
4
41063001
ref: 4
WASHER-THRST SPD PINI
€ 3.00
5
41060017
ref: 5
PINION,SPEEDOMETER
€ 33.50
6
41062005
ref: 6
BUSHING,SPEEDOMETER C
€ 12.00
7
41059026
ref: 7
GEAR,SPEEDOMETER
€ 27.00
8
920491057
ref: 8
OIL SEAL,BJN30427-C3
€ 7.50
9
41064013
ref: 9
RECEIVER-SPEEDOMETER
€ 11.50
10
41034041
ref: 10
DRUM ASSY,FRONT BRAKE
€ 165.50
11
601B6203
ref: 11
BEARING-BALL,#6203C3
€ 10.50
12
41039028
ref: 12
COLLAR,BEARING
€ 19.50
13
920331040
ref: 13
RING,SNAP,40M/M
€ 4.00
14
654A254008
ref: 14
OIL SEAL
€ 13.00
15
41042016
ref: 15
DUST COVER
€ 19.50
16
411B0500
ref: 16
WASHER-PLAIN,5MM
€ 0.50
17
220B0512
ref: 17
SCREW-PAN-CROS
€ 0.50
18
92001158
ref: 18
BOLT
€ 2.00
19
92088023
ref: 19
WASHER,LOCK
€ 6.00
20
41042014
ref: 20
DUST COVER
€ 20.00
21
41069032
ref: 21
COLLAR,FRONT AXLE
€ 13.50
22
41068049
ref: 22
AXLE,FR
€ 71.00
