CHASSIS ELECTRICAL EQUIPMENT ('7
KZ1000A1 1977 CANADA

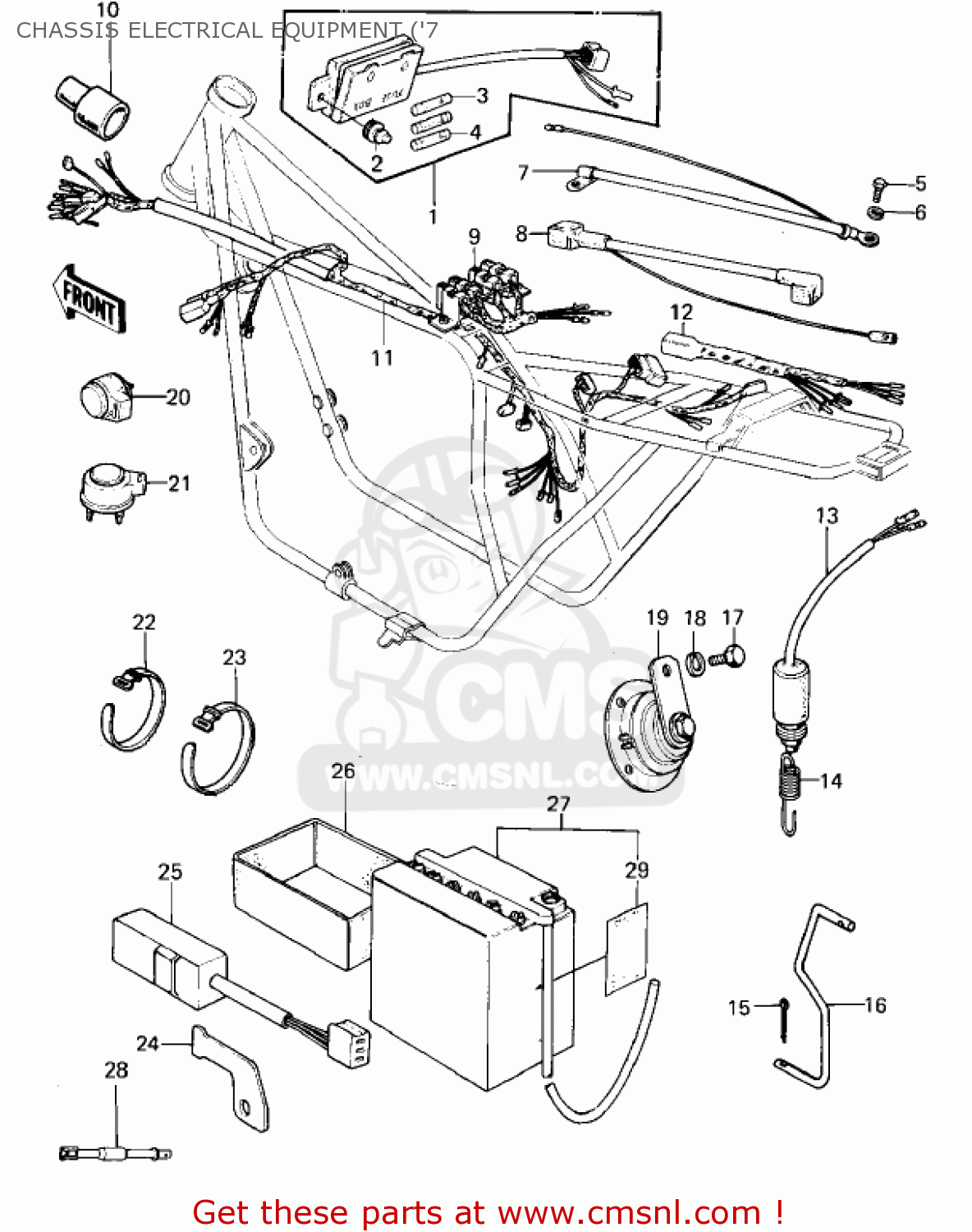

Chassis electrical equipment ('7 diagram KZ1000A1 1977 CANADA
CHASSIS ELECTRICAL EQUIPMENT ('7 KZ1000A1 1977 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
26004035
ref: 1
FUSE-ASSY
€ 53.50
2
92075279
ref: 2
DAMPER,FUSE
€ 3.50
3
26006005
ref: 3
FUSE 20A
€ 3.50
4
26006003
ref: 4
FUSE 10A
€ 3.00
5
92001137
ref: 5
BOLT,HEX HEAD,6M/M
€ 4.00
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
26010054
ref: 7
WIRE-LEAD,BATTERY GRO
€ 17.00
8
26010053
ref: 8
WIRE-LEAD,STARTER MOT
€ 18.50
9
26002057
ref: 9
WIRING HARNESS,CENTER
€ 101.50
10
26009003
ref: 10
COVER-WIRING HARNESS
€ 2.00
11
26001145
ref: 11
KZ1000-A1
WIRING HARNESS, MAIN
€ 190.00
11
260011035
ref: 11
KZ1000-A2
WIRING HARNESS,MAIN
€ 236.00
12
26002031
ref: 12
HARNESS,RR
€ 36.50
13
27010017
ref: 13
SWITCH,BRAKE LAMP
€ 23.50
14
27011009
ref: 14
SPRING-BRAKE LAMP SW
€ 4.50
15
550D1610
ref: 15
PIN-COTTER,1.6X10
€ 2.00
16
27012010
ref: 16
HOOK,BRAKE LAMP SWITC
€ 9.00
17
115G0816
ref: 17
BOLT-HEX,HEAD 8X16
€ 0.50
18
461F0800
ref: 18
WASHER-SPRING,8MM
€ 0.50
19
270031006
ref: 19
HORN
€ 99.00
20
27002011
ref: 20
12V (23W X 2 + 3.4W
RELAY-ASSY,TURN SIGNA
€ 69.50
21
27002016
ref: 21
12V 23W X 4
RELAY-ASSY,HAZARD
€ 26.50
22
92072030
ref: 22
KZ1000-A1
BAND,SHORT
€ 3.00
22
92072030
ref: 22
KZ1000-A2
BAND,SHORT
€ 3.00
23
92072056
ref: 23
KZ1000-A2
BAND,RUBBER
€ 3.00
23
92072056
ref: 23
KZ1000-A2
BAND,RUBBER
€ 3.00
24
32060014
ref: 24
BRACKET,OUTAGE SWITCH
€ 7.50
25
28019001
ref: 25
SWITCH,OUTAGE INDICTR
€ 46.00
26
32099015
ref: 26
CASE,BATTERY
€ 9.00
27
260121008
ref: 27
YB-14
BATTERY,12V13AH W/LAB
€ 101.50
27
260121008
ref: 27
BATTERY,12V13AH W/LAB
€ 101.50
28
21066026
ref: 28
REGULATOR-VOLTAGE
€ 13.00
29
560401036
ref: 29
USE FOR KZ1000-A1 MO
WARNING, BATTERY
€ 2.00
