RADIATOR
KX85A6F KX85 2006 USA CANADA

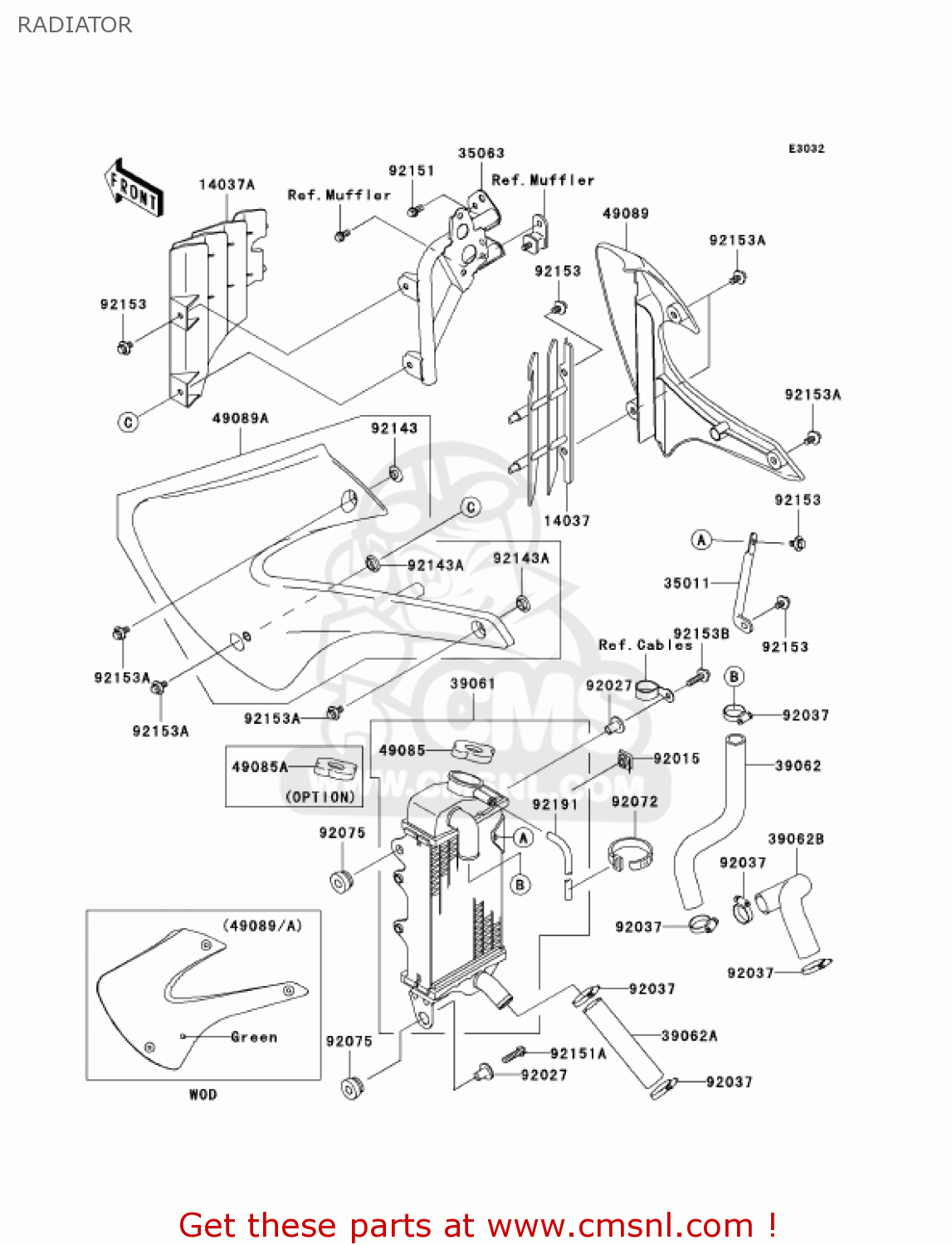

Radiator diagram KX85A6F KX85 2006 USA CANADA
RADIATOR KX85A6F KX85 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
14037
140371249RZ
ref: 14037
SCREEN,RH,WHITE
€ 25.50
14037A
140371282RZ
ref: 14037A
SCREEN,LH,WHITE
€ 26.50
35011
350111845
ref: 35011
STAY
€ 9.00
35063
350631137
ref: 35063
STAY
€ 65.00
39061
390611245
ref: 39061
RADIATOR-ASSY
€ 298.50
39062
390621425
ref: 39062
HOSE-COOLING,HEAD-RAD
€ 24.50
39062A
390621711
ref: 39062A
HOSE-COOLING,RADIATOR
€ 10.50
39062B
390621712
ref: 39062B
HOSE-COOLING,CYLINDER
€ 17.00
49085
490851070
ref: 49085
CAP-ASSY-PRESSURE
€ 37.50
49085A
490851073
ref: 49085A
(OPTION)
CAP-ASSY-PRESSURE
€ 37.50
49089
490891139290A
ref: 49089
SHROUD-ENGINE,RH,L.GR
€ 23.50
49089A
490891146290A
ref: 49089A
SHROUD-ENGINE,LH,L.GR
€ 23.50
92015
920151487
ref: 92015
NUT
€ 3.00
92027
920271183
ref: 92027
COLLAR,6.5X10X14.1
€ 3.50
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92072
92072056
ref: 92072
BAND,RUBBER
€ 3.00
92075
920751352
ref: 92075
DAMPER,RADIATOR
€ 4.00
92143
921431087
ref: 92143
COLLAR
€ 2.50
92143A
921431196
ref: 92143A
COLLAR
€ 3.00
92151
921511133
ref: 92151
BOLT,6X12
€ 1.50
92151A
921511930
ref: 92151A
BOLT,6X25
€ 2.00
92153
921530503
ref: 92153
BOLT,6X12
€ 2.00
92153A
921530936
ref: 92153A
BOLT,FLANGED,6X14
€ 2.00
92153B
921531008
ref: 92153B
BOLT,FLANGED WP,M6X25
€ 1.50
92191
921911211
ref: 92191
TUBE,6X9X700
€ 7.50
