ENGINE COVER(S)(A4/A5)
KX85-A5 KX85 2005 USA CANADA

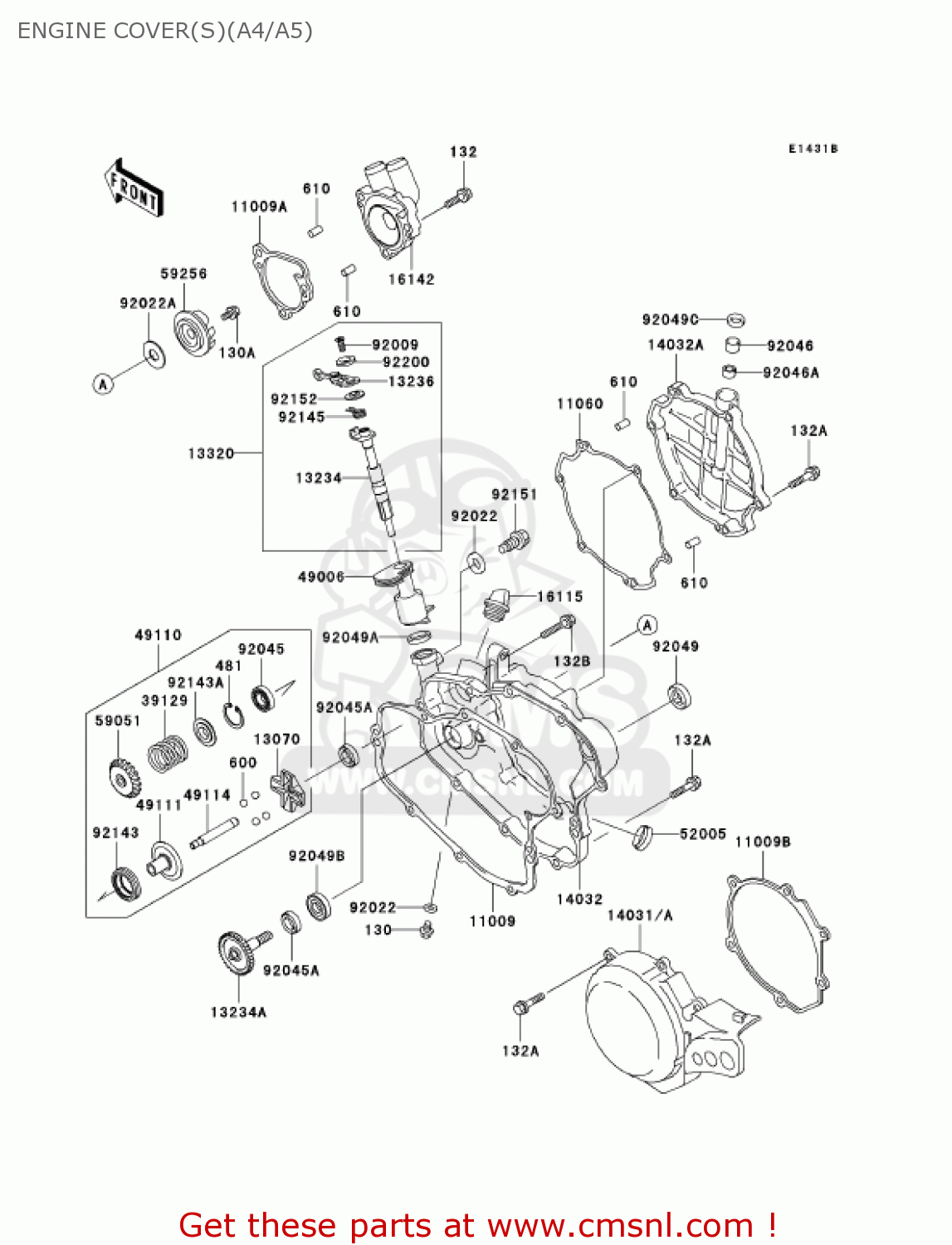

Engine cover(s)(a4/a5) diagram KX85-A5 KX85 2005 USA CANADA
ENGINE COVER(S)(A4/A5) KX85-A5 KX85 2005 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130B0608
ref: 130
BOLT,FLANGED,6X8
€ 0.50
11009
110091971
ref: 11009
GASKET,CLUTCH COVER (NAS)
€ 5.00
11009A
110091972
ref: 11009A
GASKET,PUMP COVER (NAS)
€ 5.00
11009B
110091973
ref: 11009B
GASKET,GENERATOR COVE (NAS)
€ 13.00
11060
110601795
ref: 11060
GASKET,CLUTCH COVER (NAS)
€ 11.00
13070
130701309
ref: 13070
GUIDE,GOVERNOR
€ 39.50
13234
132340008
ref: 13234
SHAFT-COMP
€ 65.00
13234A
132341103
ref: 13234A
SHAFT-COMP,WATER PUMP
€ 54.50
13236
132360023
ref: 13236
LEVER-COMP
€ 4.00
13320
133200002
ref: 13320
LEVER ASSY
€ 75.00
14031
140310029
ref: 14031
COVER-GENERATOR
€ 51.50
14032
140320041
ref: 14032
COVER-CLUTCH,INSIDE
€ 195.00
14032A
140321463
ref: 14032A
COVER-CLUTCH,OUTSIDE
€ 62.50
16115
16115018
ref: 16115
PLUG,OIL FILLER
€ 7.00
16142
161421144
ref: 16142
COVER-PUMP,WATER
€ 57.00
39129
391291022
ref: 39129
SPRING-GOVERNOR
€ 4.50
49006
490061313
ref: 49006
BOOT,GOVERNOR
€ 6.00
49110
491100001
ref: 49110
GOVERNOR-ASSY
€ 152.00
49111
491111064
ref: 49111
HOLDER-GOVERNOR WEIGH
€ 20.00
49114
491141106
ref: 49114
SHAFT-GOVERNOR
€ 13.50
52005
520051055
ref: 52005
GAUGE,OIL LEVEL
€ 10.50
59051
590511412
ref: 59051
GEAR-SPUR
€ 23.00
59256
592561064
ref: 59256
IMPELLER
€ 25.50
92009
920091958
ref: 92009
SCREW,6X14
€ 1.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92022A
920221380
ref: 92022A
WASHER,5.2X13X1
€ 2.50
92045
920450010
ref: 92045
BEARING-BALL
€ 32.50
92045A
920451305
ref: 92045A
BEARING-BALL,608MC3
€ 11.50
92046
920461160
ref: 92046
BEARING-NEEDLE,HK1010
€ 14.00
92046A
920461217
ref: 92046A
BEARING-NEEDLE,6BTM10
€ 18.00
92049
92049002
ref: 92049
OIL SEAL SB16244
€ 6.00
92049A
920491262
ref: 92049A
SEAL-OIL
€ 4.00
92049B
920491366
ref: 92049B
SEAL-OIL,MHSD8X18X10J
€ 12.50
92049C
920491414
ref: 92049C
SEAL-OIL
€ 3.50
92143
921431932
ref: 92143
COLLAR
€ 16.50
92143A
921431933
ref: 92143A
COLLAR
€ 6.50
92145
921450089
ref: 92145
SPRING
€ 3.00
92151
921511180
ref: 92151
BOLT
€ 1.50
92152
921520085
ref: 92152
COLLAR,LEVER
€ 2.50
92200
922000040
ref: 92200
WASHER,LEVER
€ 2.00
130A
130P0510
ref: 130A
BOLT-FLANGED
€ 1.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132G0630
ref: 132B
BOLT-FLANGED-SMALL
€ 1.50
481
481J2400
ref: 481
CIRCLIP-TYPE-C,24MM
€ 1.00
600
600A1000
ref: 600
BALL-STEEL,5/16
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
