CRANKCASE
KX85-A5 KX85 2005 USA CANADA

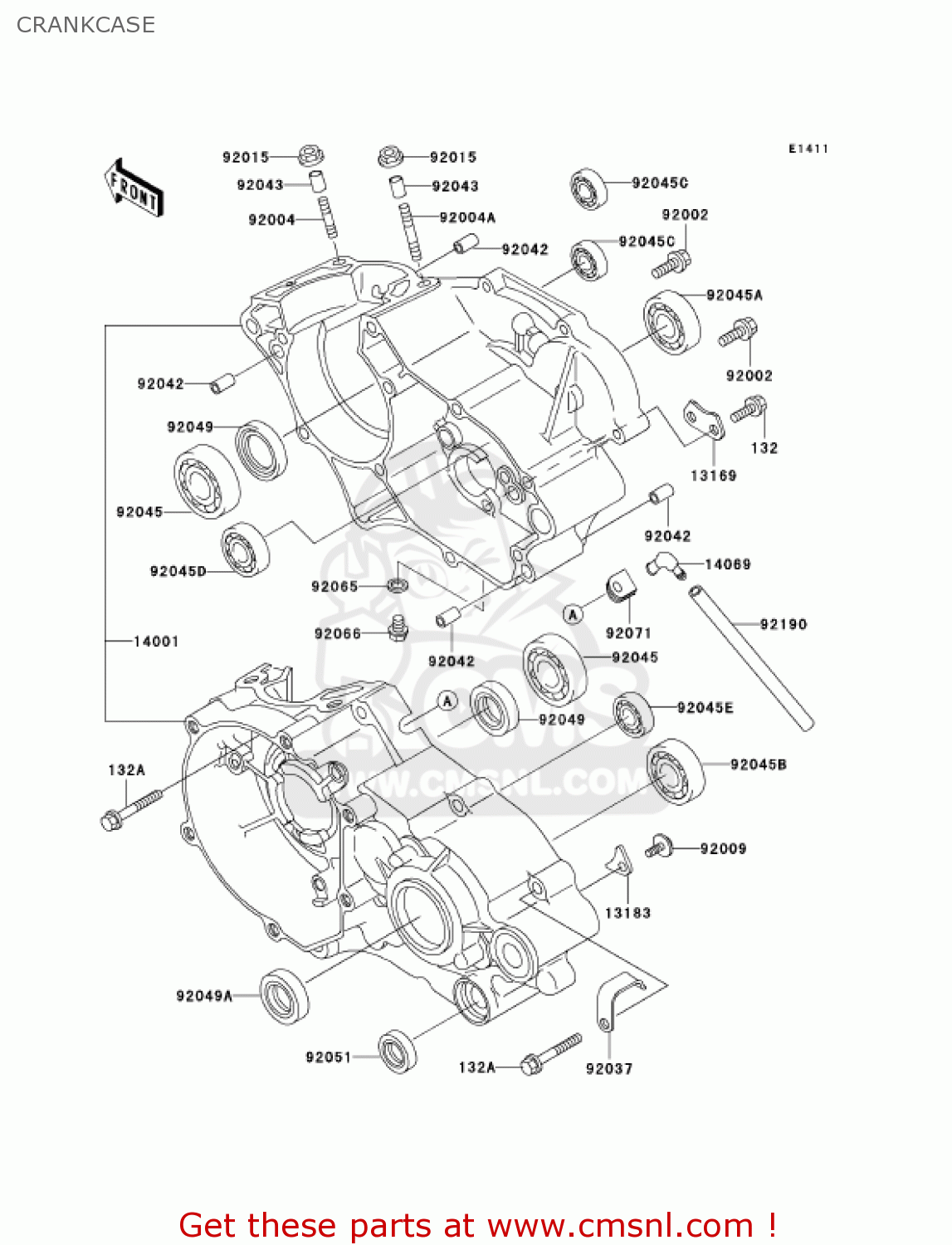

Crankcase diagram KX85-A5 KX85 2005 USA CANADA
CRANKCASE KX85-A5 KX85 2005 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0635
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
13169
13169012
ref: 13169
PLATE,CHANGE DRAM
€ 11.50
13183
131831182
ref: 13183
PLATE
€ 3.00
14001
140011313
ref: 14001
SET-CRANKCASE
€ 515.50
14069
14069002
ref: 14069
BREATHER
€ 17.50
92002
920021659
ref: 92002
BOLT
€ 3.00
92004
920041252
ref: 92004
STUD,8X28.5
€ 3.50
92004A
920041254
ref: 92004A
STUD,8X37
€ 3.00
92009
920091563
ref: 92009
SCREW,6X10
€ 2.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92043
920431264
ref: 92043
PIN,DOWEL,8.2X10X14
€ 0.50
92045
920451059
ref: 92045
BEARING-BALL,R-6304C3
€ 29.00
92045A
920451118
ref: 92045A
BEARING-BALL,6004TMB
€ 23.50
92045B
920451226
ref: 92045B
BEARING-BALL,6204
€ 25.00
92045C
920451304
ref: 92045C
BEARING-BALL,626MC3
€ 11.00
92045D
920451360
ref: 92045D
BEARING-BALL,TMB002
€ 16.50
92045E
920451450
ref: 92045E
BEARING-BALL,16101JRX
€ 28.50
92049
920491188
ref: 92049
SEAL-OIL,SD20407GS
€ 12.00
92049A
920491292
ref: 92049A
SEAL-OIL,TC25375
€ 7.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661437
ref: 92066
PLUG,DRAIN
€ 4.00
92071
92071042
ref: 92071
GROMMET
€ 2.50
92190
921901116
ref: 92190
TUBE,6X9X330
€ 8.00
