REAR HUB
KX80-T4 1994 USA

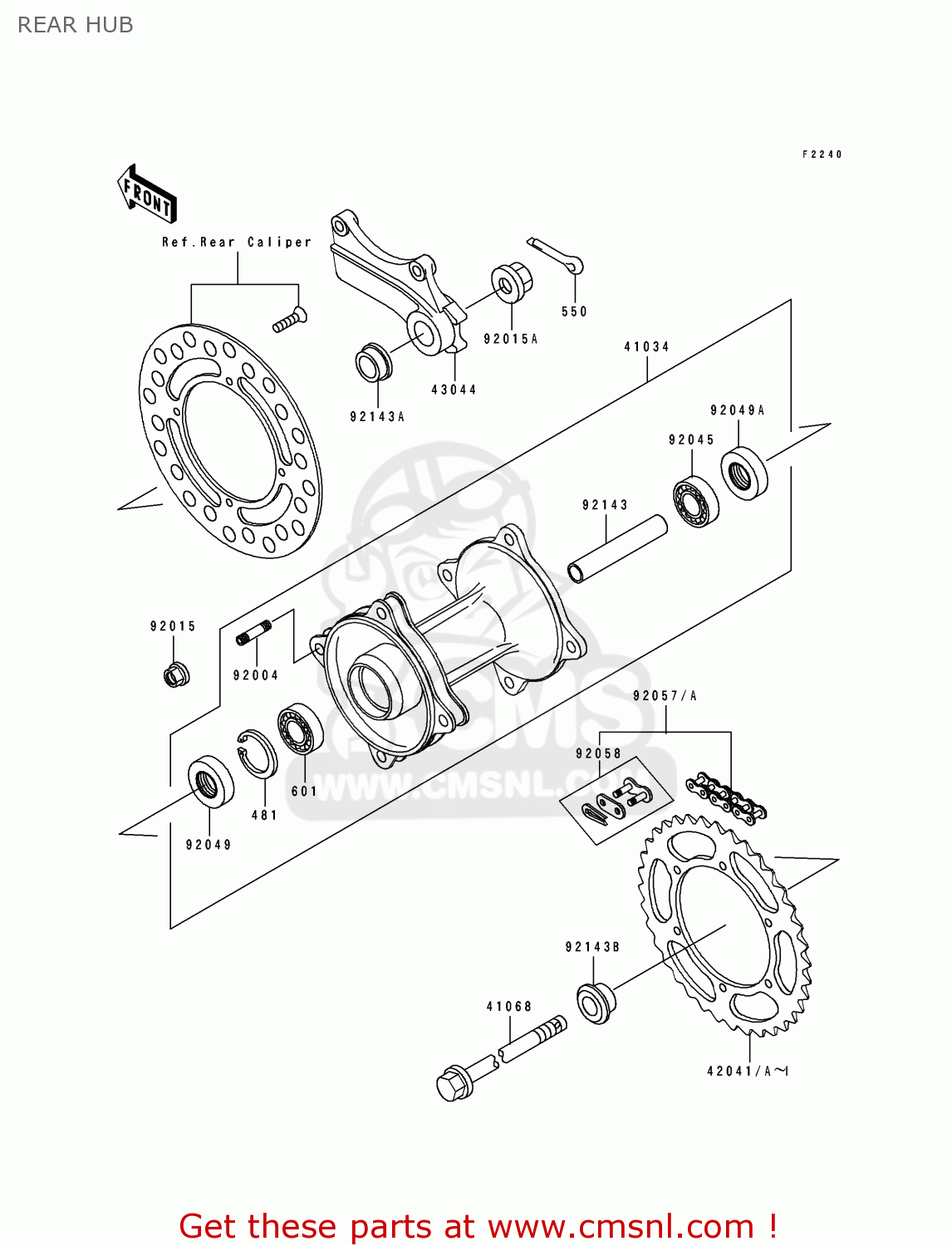

Rear hub diagram KX80-T4 1994 USA
REAR HUB KX80-T4 1994 USA
×
prices are in EUR
ref
part #
description
quantity
481
481J3700
ref: 481
CIRCLIP-TYPE-C,37MM
€ 1.50
550
550D2520
ref: 550
PIN-COTTER,2.5X20
€ 1.00
601
601B6301UU
ref: 601
BEARING-BALL,#6301UUC
€ 24.00
41034
410341194
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 237.50
41068
410681302
ref: 41068
AXLE,RR
€ 26.00
42041A
420411223
ref: 42041A
SPROCKET-HUB,54T
€ 28.50
42041F
420411245
ref: 42041F
SPROCKET-HUB,52T
€ 35.00
42041G
420411246
ref: 42041G
SPROCKET-HUB,53T
€ 35.00
42041H
420411247
ref: 42041H
SPROCKET-HUB,55T
€ 31.50
42041I
420411248
ref: 42041I
SPROCKET-HUB
€ 29.00
43044
430441073
ref: 43044
HOLDER-COMP-CALIPER
€ 73.50
92004
920041183
ref: 92004
STUD
€ 3.50
92015
920151432
ref: 92015
NUT,8MM
€ 4.50
92015A
920151433
ref: 92015A
NUT,12MM
€ 6.00
92045
920451062
ref: 92045
BEARING-BALL,TMB201LL
€ 24.50
92049
920491096
ref: 92049
SEAL-OIL,DD20377
€ 11.00
92049A
920491290
ref: 92049A
SEAL-OIL,DC17323.5
€ 6.00
92057A
920571315
ref: 92057A
CHAIN,DRIVE,DID420DSX
€ 67.00
92058
920581066
ref: 92058
JOINT-CHAIN
€ 7.00
92143
921431282
ref: 92143
COLLAR,12.2X17.3X107.
€ 14.00
92143A
921431284
ref: 92143A
COLLAR,REAR AXLE,L=12
€ 16.00
92143B
921431286
ref: 92143B
COLLAR,REAR AXLE,L=14
€ 10.00
