CARBURETOR
KX80-T4 1994 USA

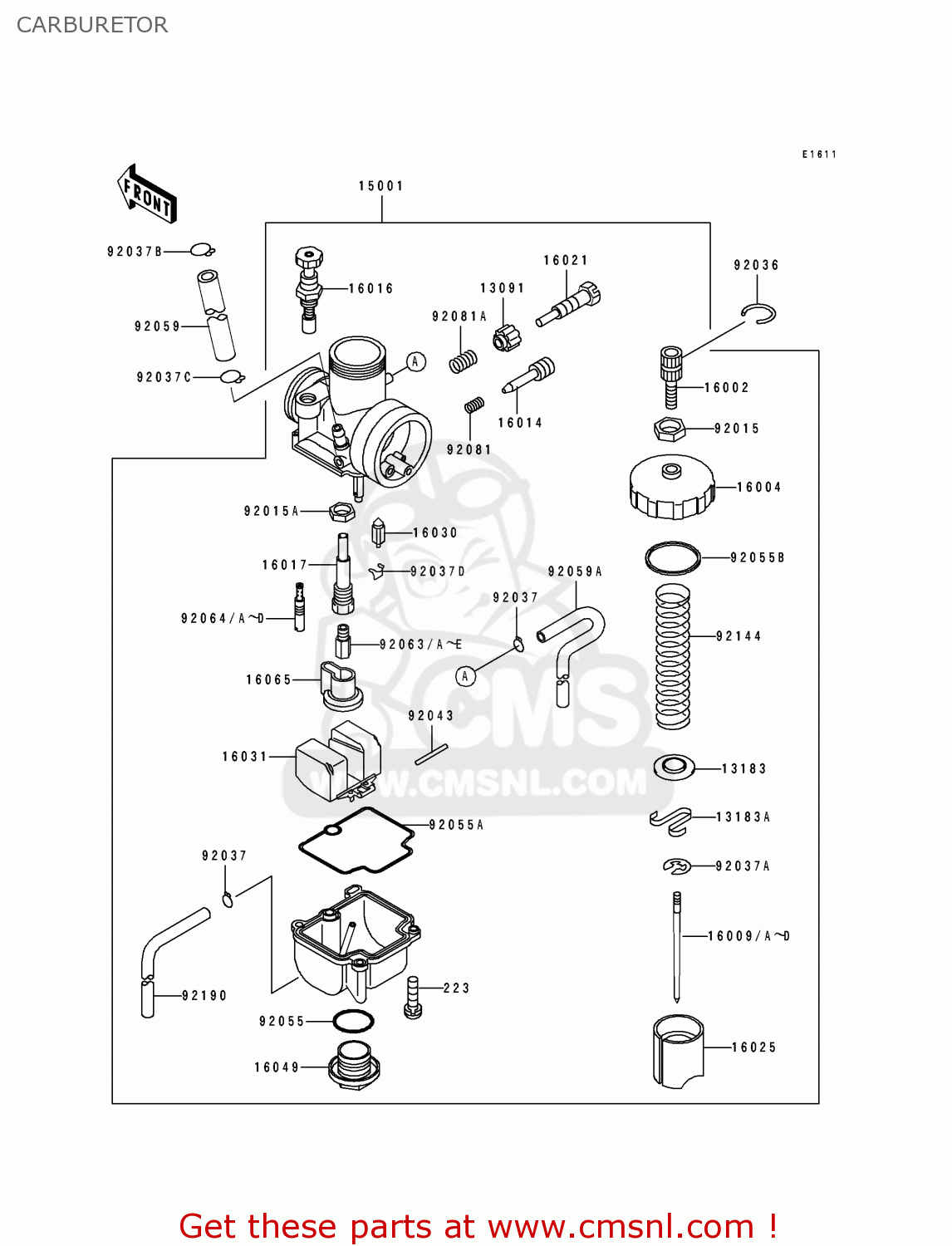

Carburetor diagram KX80-T4 1994 USA
CARBURETOR KX80-T4 1994 USA
×
prices are in EUR
ref
part #
description
quantity
13091
130911492
ref: 13091
HOLDER,STOP SCREW
€ 10.50
13183
131831162
ref: 13183
PLATE
€ 7.50
13183A
131831250
ref: 13183A
PLATE,THROTTLE
€ 9.00
15001
150011571
ref: 15001
CARBURETOR-ASSY
€ 193.50
16002
160021056
ref: 16002
ADJUSTER-CABLE
€ 16.00
16004
160041059
ref: 16004
CAP-CHAMBER,MIXING
€ 26.50
16009
160091573
ref: 16009
NEEDLE-JET,N68U
€ 29.00
16009A
160091574
ref: 16009A
NEEDLE-JET,N68S
€ 17.00
16009B
160091575
ref: 16009B
NEEDLE-JET,N68T
€ 20.00
16009C
160091576
ref: 16009C
NEEDLE-JET,N68V
€ 20.00
16009D
160091577
ref: 16009D
NEEDLE-JET,N68W
€ 20.00
16014
160141033
ref: 16014
SCREW-PILOT AIR
€ 13.50
16016
160161028
ref: 16016
PLUNGER,STARTER
€ 75.00
16017
160171365
ref: 16017
JET-NEEDLE
€ 38.50
16021
160211121
ref: 16021
SCREW-THROTTLE STOP
€ 8.50
16025
160251162
ref: 16025
VALVE-THROTTLE,CA3.0
€ 106.00
16030
160301064
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311071
ref: 16031
FLOAT
€ 43.00
16049
160491051
ref: 16049
COVER-MAIN JET
€ 23.50
16065
160651162
ref: 16065
HOLDER-CARBURETOR
€ 23.50
92015
920151574
ref: 92015
NUT,CABLE ADJUST LOCK
€ 4.50
92015A
920151674
ref: 92015A
NUT
€ 5.50
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
920371396
ref: 92037
CLAMP,TUBE
€ 3.50
92037A
920371401
ref: 92037A
CLAMP,JET NEEDLE
€ 2.50
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92037C
920371712
ref: 92037C
CLAMP
€ 3.00
92037D
920371991
ref: 92037D
CLAMP,FLOAT
€ 5.50
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551167
ref: 92055
RING-O,MAIN JET COVER
€ 6.50
92055A
920551389
ref: 92055A
RING-O,FLOAT CHAMBER
€ 6.50
92055B
920551390
ref: 92055B
RING-O,CHAMBER TOP
€ 5.00
92059
920591826
ref: 92059
TUBE
€ 22.50
92059A
920591941
ref: 92059A
TUBE,4X7X360
€ 10.00
92063
920631334
ref: 92063
JET-MAIN,#125
€ 11.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
92063A
920631335
ref: 92063A
JET-MAIN,#128
€ 9.00
92063B
920631356
ref: 92063B
JET-MAIN,#118
€ 10.50
92063C
920631357
ref: 92063C
JET-MAIN,#120
€ 10.00
92063D
920631358
ref: 92063D
JET-MAIN,#122
€ 10.00
92063E
920631361
ref: 92063E
JET-MAIN,#142
€ 9.50
92064
920641130
ref: 92064
JET-PILOT,#52
€ 11.00
92064A
920641144
ref: 92064A
JET-PILOT
€ 11.00
92064B
920641145
ref: 92064B
JET-PILOT,#55
€ 11.50
92064C
920641146
ref: 92064C
JET-PILOT,#58
€ 12.00
92064D
920641147
ref: 92064D
JET-PILOT,#60
€ 12.50
92081
920811555
ref: 92081
SPRING,ADJUST SCREW
€ 3.50
92081A
920811632
ref: 92081A
SPRING,STOP SCREW
€ 3.50
92144
921441177
ref: 92144
SPRING,THROTTLE VALVE
€ 10.50
92190
921901291
ref: 92190
TUBE,4X7X330
€ 10.00
