CYLINDER HEAD/CYLINDER

KX80-F2 1984

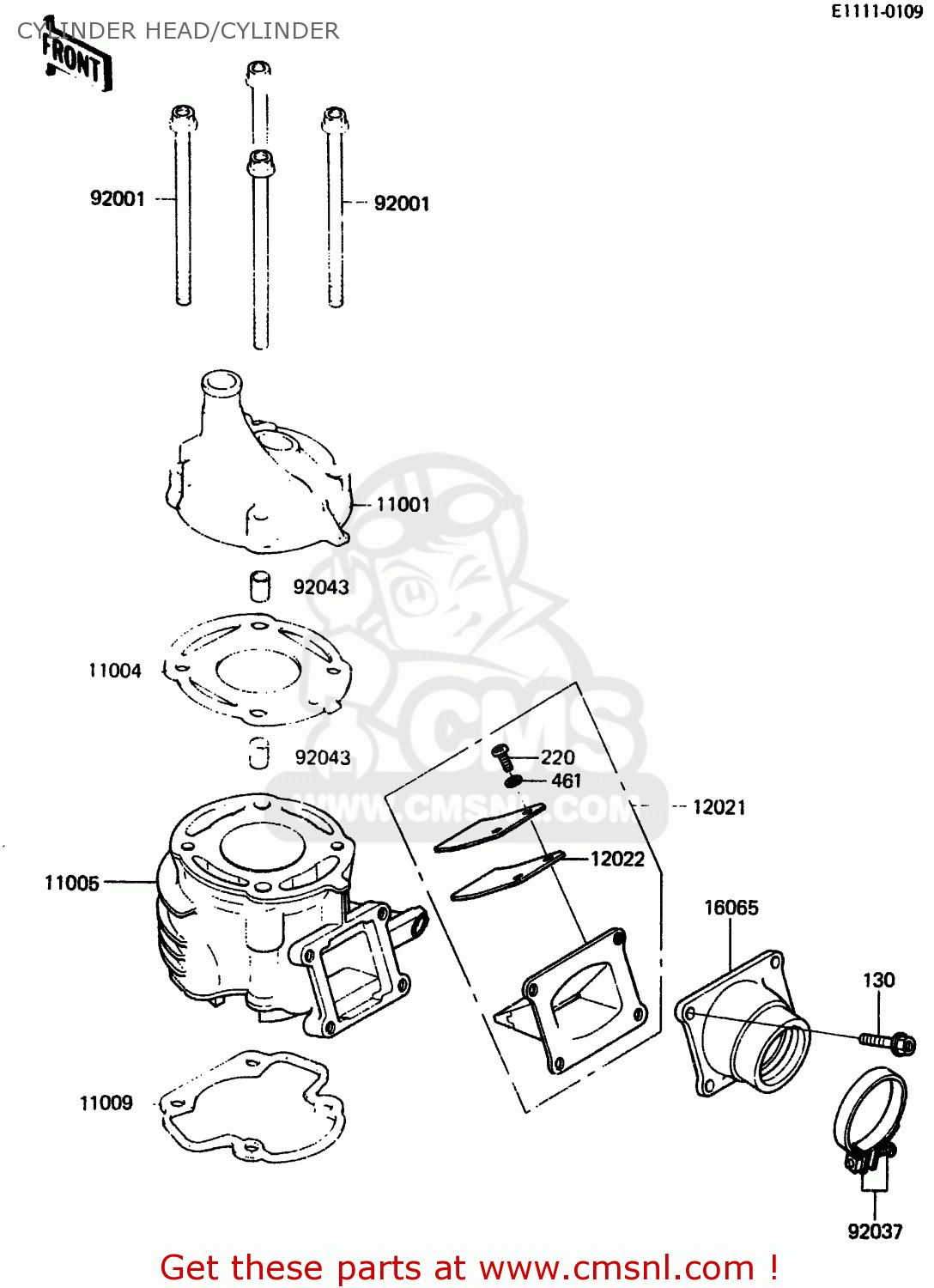

Cylinder head/cylinder diagram KX80-F2 1984

prices are in EUR

ref

part #

description

quantity

11001

110011144
ref: 11001

HEAD CYLINDER

€ 109.50

11004

110041058
ref: 11004

GASKET-HEAD,CYLINDER (MCA)

€ 24.50

11005

110051343
ref: 11005

CYLINDER-ENGINE

€ 535.00

11009

110091310
ref: 11009

GASKET,CYLINDER BASE (MCA)

€ 6.00

12021

120211052
ref: 12021

VALVE-ASSY-REED

€ 117.50

12022

120221052
ref: 12022

VALVE-REED

€ 12.00

16065

160651102
ref: 16065

HOLDER-CARBURETOR

€ 44.50

92001

920011990
ref: 92001

BOLT,FLANGED,8X120

€ 4.00

92037

920371172
ref: 92037

CLAMP

€ 5.50

92043

920431037
ref: 92043

PIN,DOWEL,10X8.2X14

€ 0.50

130

130G0620
ref: 130

BOLT,FLANGED,6X20

€ 2.50

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

461

461F0300
ref: 461

WASHER-SPRING,3MM

€ 0.50

CYLINDER HEAD/CYLINDER

all assemblies
