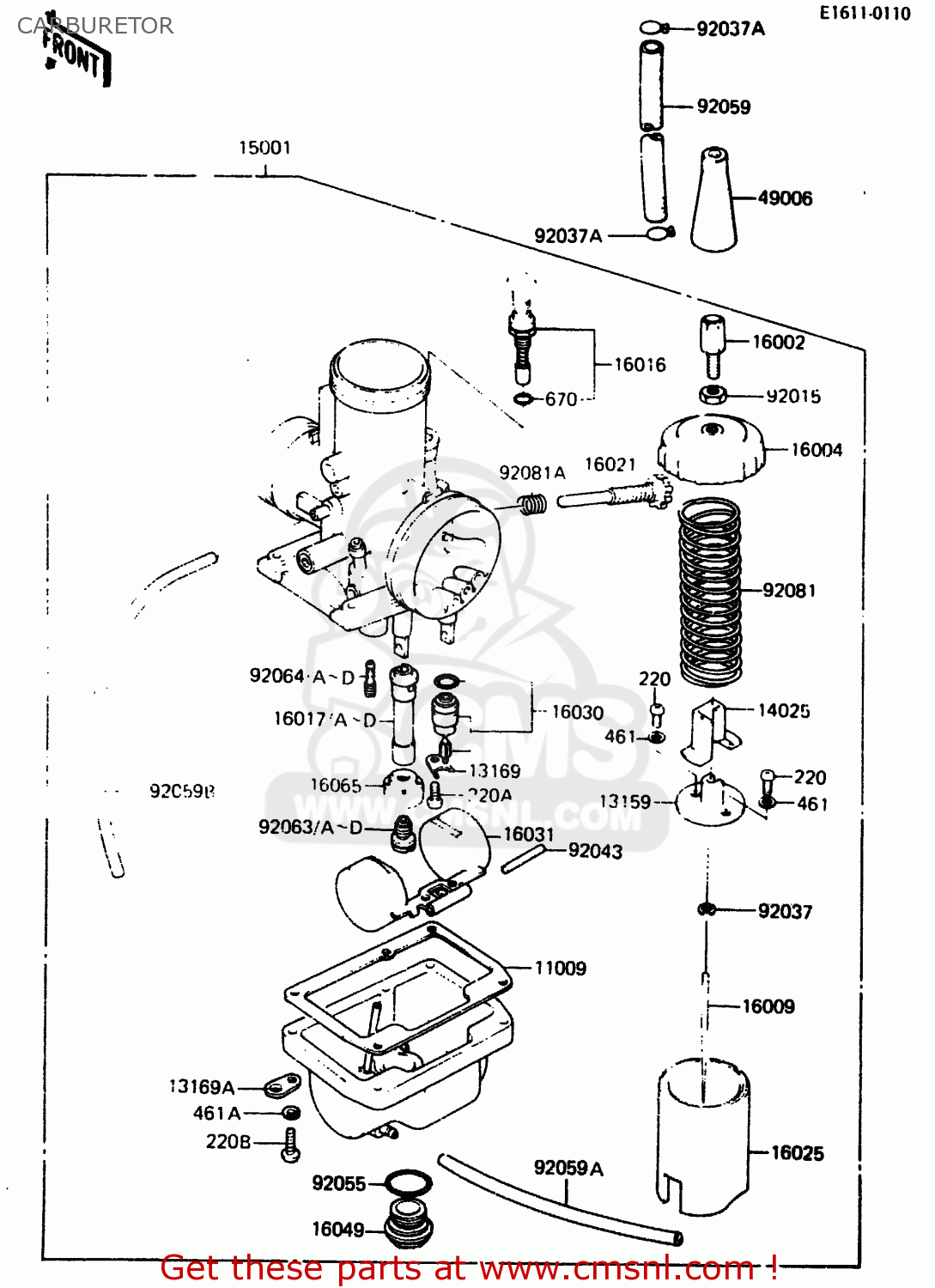

CARBURETOR

ref

part #

description

quantity

11009

110091178
ref: 11009

GASKET,FLOAT CHAMBER

€ 7.00

13159

131591004
ref: 13159

CONNECTOR,THROTTLE

€ 9.00

13169

131691190
ref: 13169

PLATE,LOCK

€ 3.50

13169A

131691226
ref: 13169A

PLATE,TUBE CLAMP

€ 5.00

14025

140251494
ref: 14025

COVER,THROTTLE VALVE

€ 6.00

15001

160011924
ref: 15001

CARBURETOR

€ 133.00

16002

16002017
ref: 16002

ADJUSTER-CABLE

€ 8.00

16004

16004025
ref: 16004

CAP,MIXING CHAMBER

€ 23.50

16009

160091223
ref: 16009

NEEDLE-JET,6EJ3

€ 20.00

16016

160161013
ref: 16016

PLUNGER,STARTER

€ 24.50

16017

160171223
ref: 16017

JET-NEEDLE,P-2

€ 18.50

16017A

160171224
ref: 16017A
(OPTION)

JET-NEEDLE,P-6

€ 25.00

16017B

160171225
ref: 16017B
(OPTION)

JET-NEEDLE,P-4

€ 26.50

16017C

160171226
ref: 16017C
(OPTION)

JET-NEEDLE,P-0

€ 25.00

16017D

160171227
ref: 16017D
(OPTION)

JET-NEEDLE,O-8

€ 25.00

16021

160211047
ref: 16021

SCREW-THROTTLE STOP

€ 11.50

16025

160251110
ref: 16025

VALVE-THROTTLE,C.A 2.

€ 51.00

16030

160301013
ref: 16030

VALVE-FLOAT,#2.5

€ 33.00

16031

160311007
ref: 16031

FLOAT

€ 35.00

16049

160491003
ref: 16049

COVER,MAIN JET

€ 8.00

16065

160651033
ref: 16065

HOLDER,MAIN JET RING

€ 10.50

49006

16036007
ref: 49006

BOOT,CABLE ADJUSTER

€ 10.50

92015

16003006
ref: 92015

NUT-CABLE ADJUST LOCK

€ 4.50

92037

16008010
ref: 92037

CLAMP,E-TYPE

€ 5.00

92037A

92037072
ref: 92037A

CLAMP,TUBE

€ 4.00

92043

16032003
ref: 92043

FLOAT PIN

€ 4.00

92055

920551076
ref: 92055

RING-O

€ 6.00

92059

920591129
ref: 92059

TUBE,5.3X10.5X150

€ 12.50

92059A

920591135
ref: 92059A

TUBE

€ 4.00

92059B

920591432
ref: 92059B

TUBE,3X5X250

€ 5.50

92063

92063020
ref: 92063
(OPTION)

JET-MAIN,#180

€ 9.50

92063A

92063021
ref: 92063A
(OPTION)

JET-MAIN,#190

€ 9.50

92063B

92063022
ref: 92063B

JET-MAIN,#200

€ 9.50

92063C

92063023
ref: 92063C
(OPTION)

JET-MAIN,#210

€ 9.50

92063D

92063024
ref: 92063D
(OPTION)

JET-MAIN,#220

€ 11.00

92064

92064022
ref: 92064
(OPTION)

PILOT JET #30 ISO

€ 11.50

92064A

92064023
ref: 92064A

JET-PILOT,#35

€ 13.00

92064B

92064024
ref: 92064B
(OPTION)

JET-PILOT,#40

€ 14.00

92064C

92064044
ref: 92064C
(OPTION)

JET-PILOT,#45

€ 13.00

92064D

920641033
ref: 92064D
(OPTION)

JET-PILOT,#27.5

€ 11.50

92081

16006023
ref: 92081

SPRING,THROTTLE VALV

€ 10.00

92081A

920811417
ref: 92081A

SPRING

€ 3.00

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220B0408
ref: 220A

SCREW-PAN-CROS

€ 0.50

220B

220B0416
ref: 220B

SCREW-PAN-CROS

€ 2.00

461

461F0300
ref: 461

WASHER-SPRING,3MM

€ 0.50

461A

461F0400
ref: 461A

WASHER-SPRING,4MM

€ 0.50

670

670B1509
ref: 670

O RING,9MM

€ 1.00

all assemblies
