TRANSMISSION
KX65-A5 KX65 2004 USA CANADA

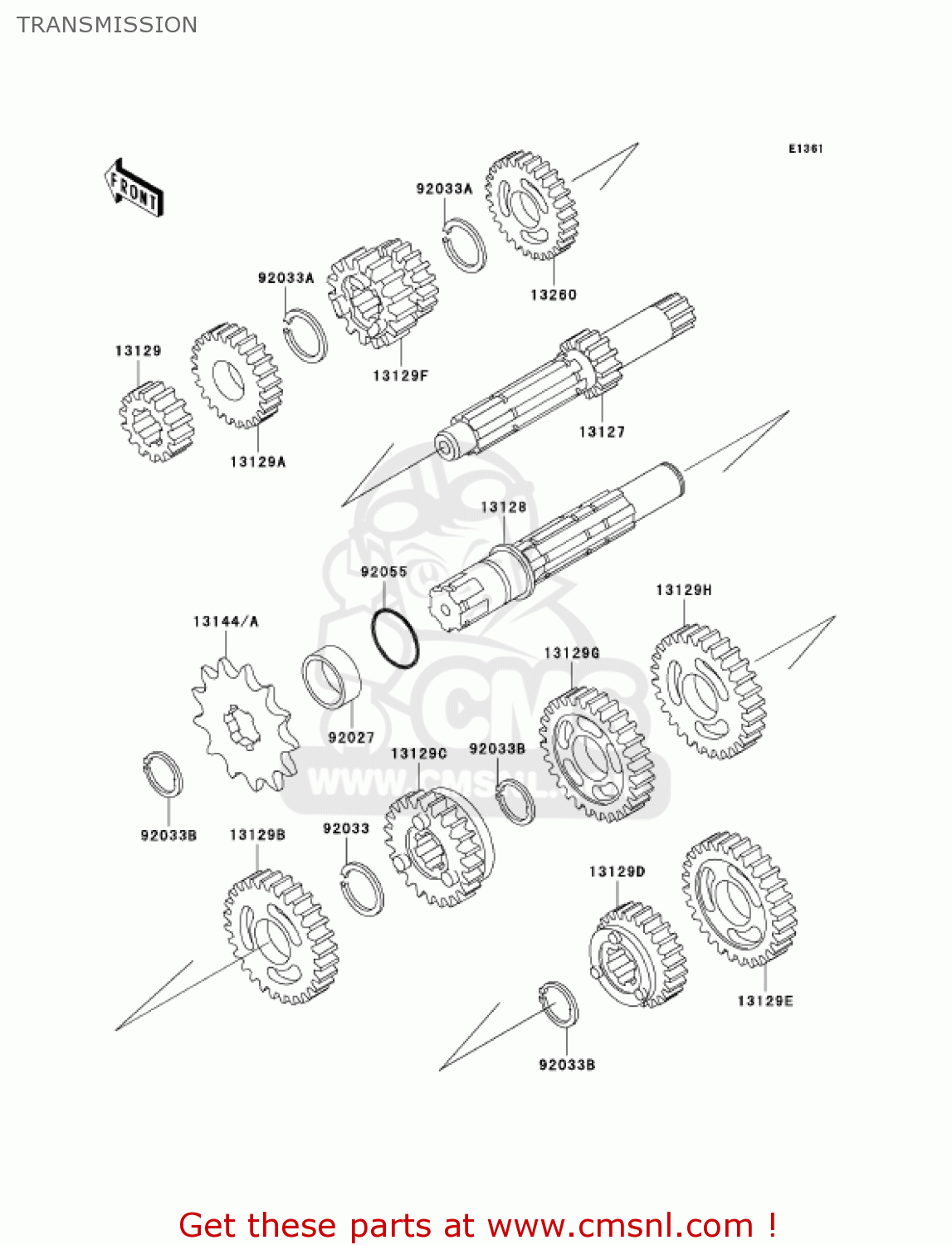

Transmission diagram KX65-A5 KX65 2004 USA CANADA
TRANSMISSION KX65-A5 KX65 2004 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
131271105
ref: 13127
SHAFT-TRANSMISSION IN
€ 110.00
13128
131281028
ref: 13128
SHAFT-TRANSMISSION OU
€ 109.50
13129
131291215
ref: 13129
2ND GEAR,DRIVE,16T
€ 47.50
13129A
131291343
ref: 13129A
GEAR,INPUT 5TH,23T
€ 57.50
13129B
131291345
ref: 13129B
GEAR,OUTPUT 2ND,34T
€ 62.50
13129C
131291348
ref: 13129C
GEAR,OUTPUT 5TH,28T
€ 60.50
13129D
131291349
ref: 13129D
GEAR,OUTPUT TOP,26T
€ 60.50
13129E
131291515
ref: 13129E
GEAR,OUTPUT LOW,37T
€ 57.50
13129F
131291611
ref: 13129F
GEAR,INPUT 3RD&4TH,21
€ 100.00
13129G
131291612
ref: 13129G
GEAR,OUTPUT 4TH,30T
€ 54.00
13129H
131291654
ref: 13129H
GEAR-OUTPUT 3RD,31T
€ 57.50
13144
131441022
ref: 13144
(OPTION)
SPROCKET,ENGINE,14T
€ 14.50
13144A
131441023
ref: 13144A
SPROCKET-OUTPUT,13T
€ 14.50
13260
132601542
ref: 13260
GEAR,INPUT TOP,24T
€ 50.50
92027
920271077
ref: 92027
COLLAR,20X25X12.5
€ 14.00
92033
92033029
ref: 92033
CIRCLIP,18MM
€ 6.50
92033A
920331060
ref: 92033A
RING,SNAP
€ 2.50
92033B
920331079
ref: 92033B
RING-SNAP,18MM
€ 2.50
92055
92055022
ref: 92055
'O' RING
€ 4.00
