CARBURETOR
KX65-A5 KX65 2004 USA CANADA

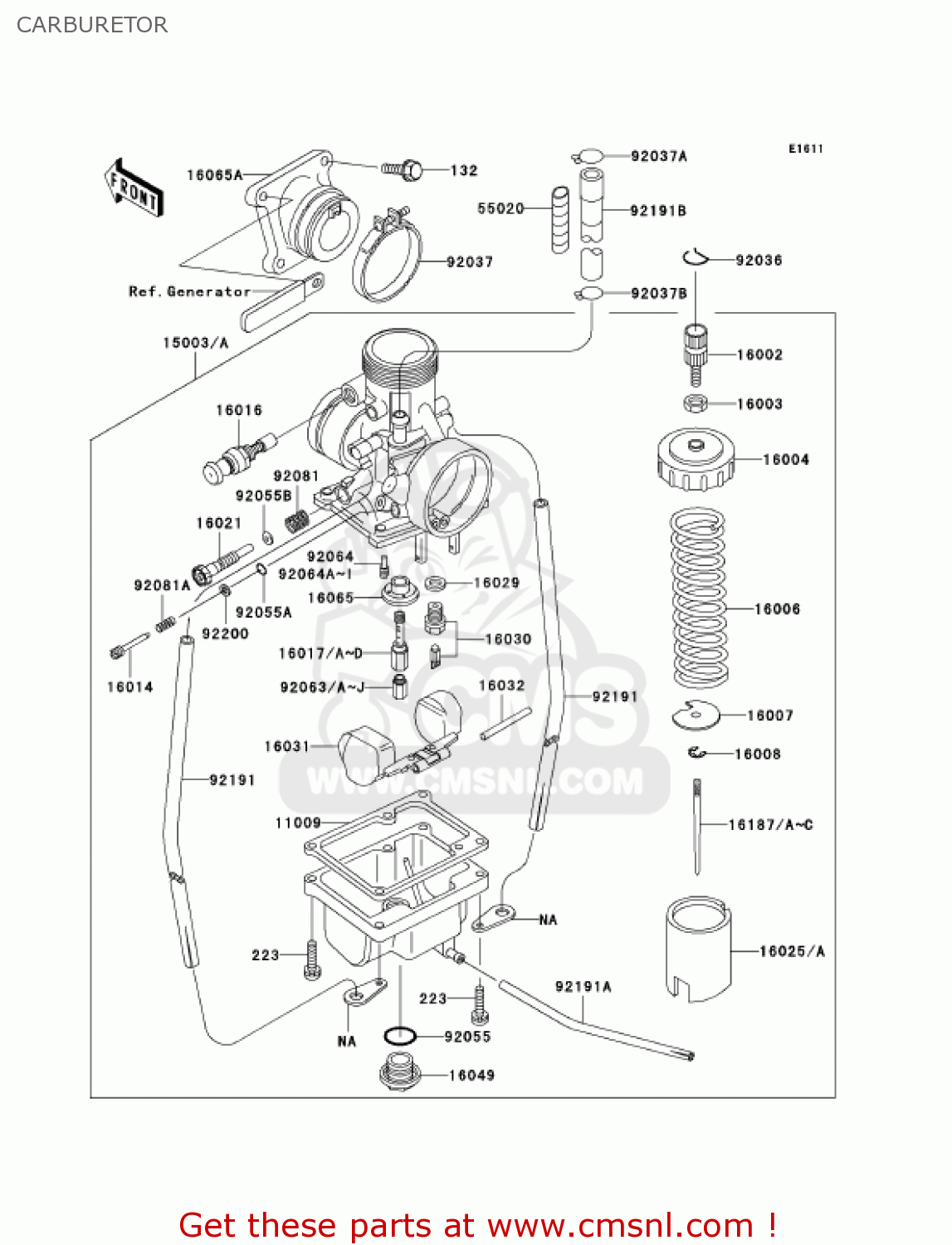

Carburetor diagram KX65-A5 KX65 2004 USA CANADA
CARBURETOR KX65-A5 KX65 2004 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091147
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 6.50
15003A
150031669
ref: 15003A
CARBURETOR-ASSY
€ 182.00
16002
16002011
ref: 16002
CABLE ADJUSTER
€ 9.50
16003
16003006
ref: 16003
NUT-CABLE ADJUST LOCK
€ 4.50
16004
16004025
ref: 16004
CAP,MIXING CHAMBER
€ 23.50
16006
16006023
ref: 16006
SPRING,THROTTLE VALV
€ 10.00
16007
16007023
ref: 16007
SPRING SEAT,THRTL VL
€ 7.00
16008
160081010
ref: 16008
CLAMP
€ 2.00
16014
160141116
ref: 16014
SCREW-PILOT AIR
€ 11.50
16016
160161052
ref: 16016
PLUNGER,STARTER
€ 31.50
16017
160171412
ref: 16017
(OPTION)
JET-NEEDLE,N-8
€ 33.00
16017A
160171413
ref: 16017A
JET-NEEDLE,O-0
€ 33.00
16017B
160171414
ref: 16017B
(OPTION)
JET-NEEDLE,O-2
€ 33.00
16017C
160171415
ref: 16017C
(OPTION)
JET-NEEDLE,O-4
€ 33.00
16017D
160171418
ref: 16017D
(OPTION)
JET-NEEDLE,N-6
€ 33.00
16021
160211224
ref: 16021
SCREW-THROTTLE STOP
€ 11.50
16025
160251040
ref: 16025
VALVE-THROTTLE
€ 45.50
16029
16029004
ref: 16029
WASHER-FLOAT VLV SEAT
€ 2.50
16030
160301095
ref: 16030
VALVE-FLOAT,#2.5
€ 39.00
16031
160311005
ref: 16031
FLOAT
€ 39.00
16032
16032003
ref: 16032
FLOAT PIN
€ 4.00
16049
160491001
ref: 16049
COVER,MAIN JET
€ 18.00
16065
160651020
ref: 16065
HOLDER,NEEDLE JET
€ 12.50
16065A
160651366
ref: 16065A
HOLDER-CARBURETOR
€ 47.50
16187B
161871226
ref: 16187B
NEEDLE-JET
€ 26.50
16187C
161871227
ref: 16187C
(OPTION)
NEEDLE-JET,5GSP69
€ 26.50
55020
550201787
ref: 55020
GUARD,FUEL TUBE
€ 3.00
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
920371305
ref: 92037
CLAMP
€ 8.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371712
ref: 92037B
CLAMP
€ 3.00
92055
920551061
ref: 92055
ORING,MAIN JET COVR
€ 5.50
92055A
920551658
ref: 92055A
RING-O,AIR SCREW
€ 4.50
92055B
920552068
ref: 92055B
RING-O
€ 1.50
92063
92063019
ref: 92063
(OPTION)
JET-MAIN,#170
€ 9.50
92063A
92063020
ref: 92063A
(OPTION)
JET-MAIN,#180
€ 9.50
92063B
92063021
ref: 92063B
JET-MAIN,#190
€ 9.50
92063C
92063022
ref: 92063C
(OPTION)
JET-MAIN,#200
€ 9.50
92063D
92063023
ref: 92063D
(OPTION)
JET-MAIN,#210
€ 9.50
92063G
92063025
ref: 92063G
(OPTION)
JET-MAIN,#230
€ 10.50
92064
92064021
ref: 92064
(OPTION)
PILOT JET #20 ISO
€ 12.00
92064A
92064022
ref: 92064A
(OPTION)
PILOT JET #30 ISO
€ 11.50
92064D
92064032
ref: 92064D
PILOT JET #25
€ 12.50
92064E
92064040
ref: 92064E
(OPTION)
JET-PILOT,#22.5
€ 11.50
92064G
920641033
ref: 92064G
(OPTION)
JET-PILOT,#27.5
€ 11.50
92081
920811152
ref: 92081
SPRING,THROTTLE ADJST
€ 4.00
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
223
223B0416
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
92081A
920811153
ref: 92081A
SPRING,AIR SCREW
€ 3.00
92191
921911495
ref: 92191
TUBE,3X5X280
€ 4.00
92191A
921911496
ref: 92191A
TUBE,3X5X220
€ 3.50
92191B
921911611
ref: 92191B
TUBE
€ 2.00
92200
922001564
ref: 92200
WASHER,PILOT AIR SCRE
€ 2.00
