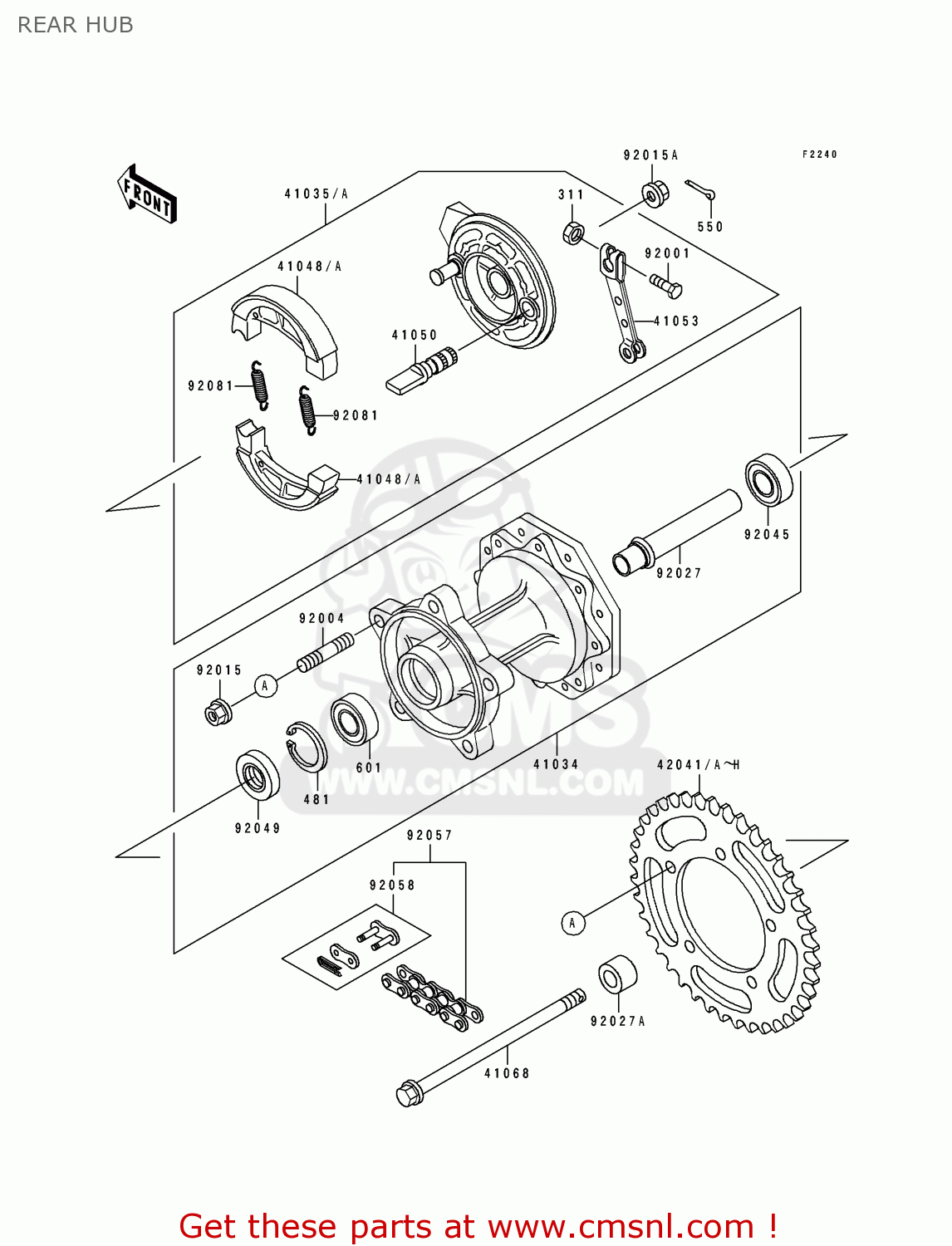

REAR HUB

ref

part #

description

quantity

311

311G0500
ref: 311

NUT-HEX

€ 2.50

481

481J3700
ref: 481

CIRCLIP-TYPE-C,37MM

€ 1.50

550

550D2520
ref: 550

PIN-COTTER,2.5X20

€ 1.00

601

601B6301UU
ref: 601

BEARING-BALL,#6301UUC

€ 24.00

41034

410341169
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 314.50

41035A

410351286
ref: 41035A

PANEL-ASSY-BRAKE,RR

€ 165.50

41048A

410481083
ref: 41048A

SHOE-BRAKE (NAS)

€ 13.00

41050

410501031
ref: 41050

CAM-BRAKE

€ 17.50

41053

410531058
ref: 41053

LEVER-BRAKE CAM,RR

€ 36.00

41068

410681306
ref: 41068

AXLE,RR

€ 26.00

42041

420411114
ref: 42041

SPROCKET-HUB,44T

€ 33.00

42041A

420411116
ref: 42041A

SPROCKET-HUB,43T

€ 31.00

42041B

420411117
ref: 42041B

SPROCKET-HUB,45T

€ 33.00

42041C

420411121
ref: 42041C

SPROCKET-HUB,49T

€ 31.00

42041D

420411122
ref: 42041D

SPROCKET-HUB,48T

€ 38.00

42041E

420411123
ref: 42041E

SPROCKET-HUB,50T

€ 33.00

42041F

420411129
ref: 42041F

SPROCKET HUB 47T KIT

€ 32.50

42041G

420411178
ref: 42041G

SPROCKET-HUB,46T

€ 32.50

42041H

420411181
ref: 42041H

SPROCKET-HUB,51T

€ 36.00

92001

920011695
ref: 92001

BOLT,5X25

€ 3.00

92004

920041182
ref: 92004

STUD,8X16

€ 3.00

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92015A

920151433
ref: 92015A

NUT,12MM

€ 6.00

92027

920271471
ref: 92027

COLLAR,REAR DRUM,L=11

€ 13.00

92027A

920271473
ref: 92027A

COLLAR,REAR AXLE,L=14

€ 13.50

92045

920451062
ref: 92045

BEARING-BALL,TMB201LL

€ 24.50

92049

920491096
ref: 92049

SEAL-OIL,DD20377

€ 11.00

92057

920571155
ref: 92057

CHAIN,DID420M,104L

€ 15.00

92058

920581053
ref: 92058

JOINT-CHAIN

€ 5.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50
