ENGINE COVER
KX60-B8 1992 EUROPE AS

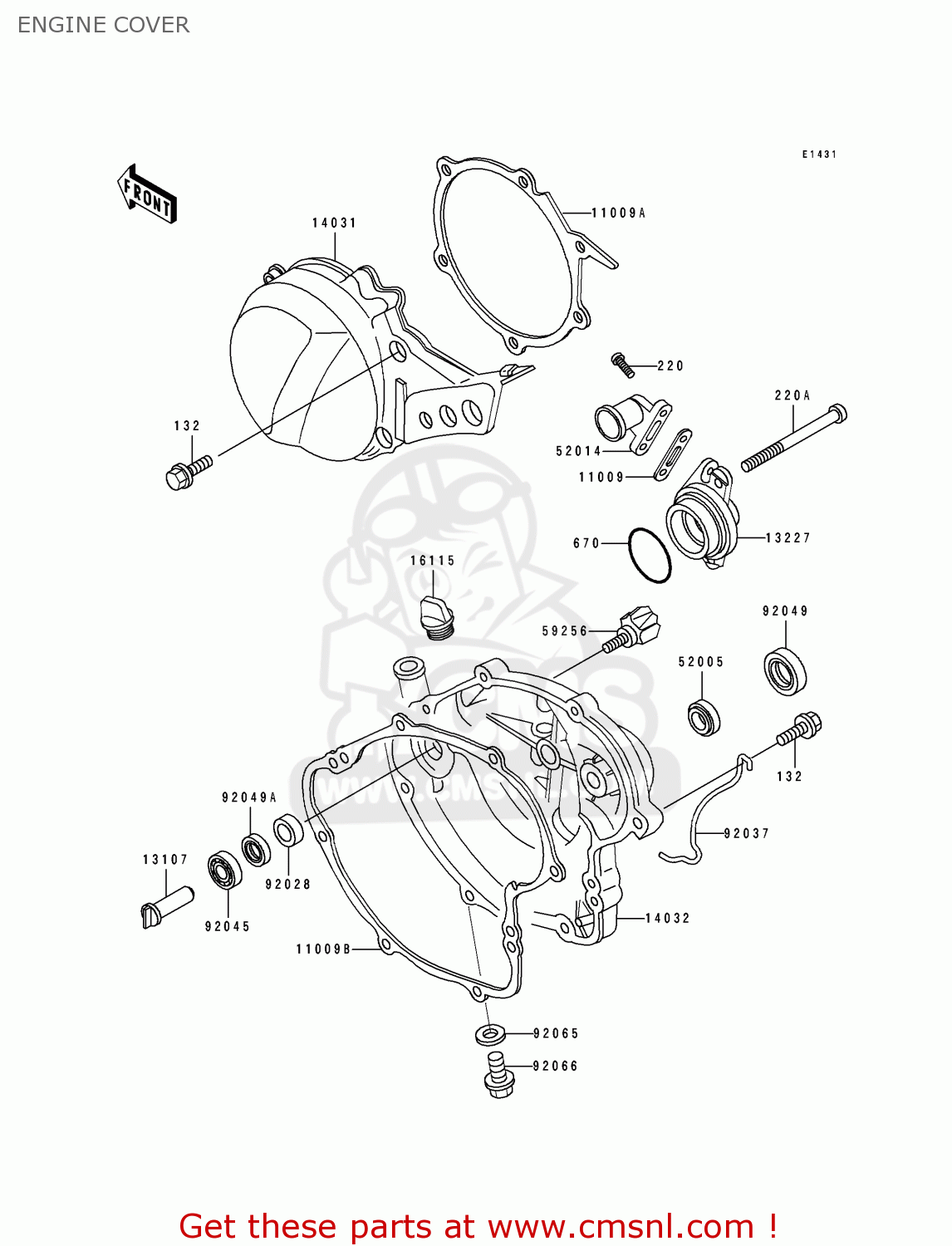

Engine cover diagram KX60-B8 1992 EUROPE AS
ENGINE COVER KX60-B8 1992 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
220
220B0520
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0675
ref: 220A
SCREW,PAN HEAD,6X75
€ 3.00
670
670B3039
ref: 670
O RING,39MM
€ 3.50
11009
110091952
ref: 11009
GASKET,ELBOW (NAS)
€ 3.50
11009A
110091974
ref: 11009A
GASKET,GENERATOR COVE (NAS)
€ 13.00
11009B
110091976
ref: 11009B
GASKET,CLUTCH COVER (NAS)
€ 16.50
13107
131071123
ref: 13107
SHAFT,WATER PUMP
€ 32.00
13227
132271069
ref: 13227
HOUSING,WATER PUMP
€ 55.50
14031
140311215
ref: 14031
COVER-GENERATOR
€ 40.00
14032
140321246
ref: 14032
COVER-CLUTCH
€ 222.50
16115
16115018
ref: 16115
PLUG,OIL FILLER
€ 7.00
52005
520051055
ref: 52005
GAUGE,OIL LEVEL
€ 10.50
52014
520141067
ref: 52014
ELBOW
€ 10.50
59256
592561052
ref: 59256
IMPELLER,WATER PUMP
€ 24.50
92028
920281317
ref: 92028
BUSHING
€ 7.00
92037
920371236
ref: 92037
CLAMP,TUBE
€ 7.00
92045
920451212
ref: 92045
BEARING-BALL
€ 11.50
92049
92049002
ref: 92049
OIL SEAL SB16244
€ 6.00
92049A
920491366
ref: 92049A
SEAL-OIL,MHSD8X18X10J
€ 12.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661241
ref: 92066
PLUG
€ 4.00
