CARBURETOR
KX500-E8 1996 EUROPE AS

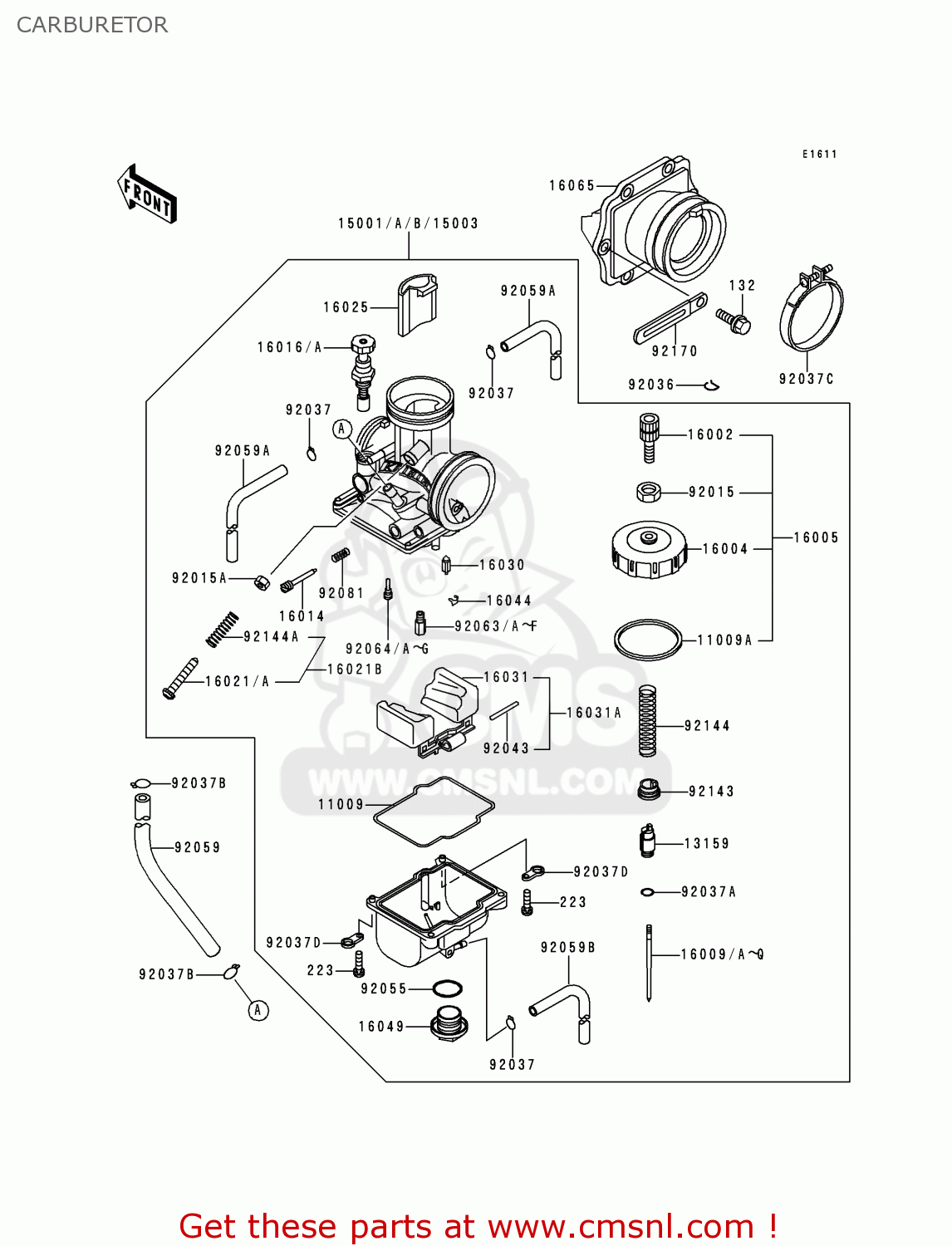

Carburetor diagram KX500-E8 1996 EUROPE AS
CARBURETOR KX500-E8 1996 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
11009
110091716
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
13159
131591063
ref: 13159
CONNECTOR,THROTTLE CA
€ 13.50
15003
150031250
ref: 15003
CARBURETOR-ASSY
€ 489.00
16005
160051068
ref: 16005
TOP-CHAMBER
€ 35.50
16009
160091578
ref: 16009
NEEDLE-JET,N82K
€ 26.50
16009A
160091579
ref: 16009A
NEEDLE-JET,N82L
€ 23.00
16009B
160091580
ref: 16009B
NEEDLE-JET,N82M
€ 26.50
16009C
160091581
ref: 16009C
NEEDLE-JET,N82N
€ 23.00
16009D
160091582
ref: 16009D
NEEDLE-JET,N82P
€ 25.00
16009E
160091609
ref: 16009E
NEEDLE-JET,N89Z
€ 27.50
16009F
160091610
ref: 16009F
NEEDLE-JET,N89A
€ 27.50
16009G
160091611
ref: 16009G
NEEDLE-JET,N89B
€ 27.50
16009H
160091612
ref: 16009H
NEEDLE-JET,N89C
€ 23.50
16009I
160091613
ref: 16009I
NEEDLE-JET,N89D
€ 23.00
16014
160141058
ref: 16014
SCREW-PILOT AIR
€ 14.00
16016A
160161085
ref: 16016A
PLUNGER
€ 30.00
16021B
160211198
ref: 16021B
SCREW-THROTTLE STOP
€ 14.00
16025
160251163
ref: 16025
VALVE-THROTTLE,CA7
€ 140.00
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031A
160311084
ref: 16031A
FLOAT
€ 51.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16049
160491051
ref: 16049
COVER-MAIN JET
€ 23.50
16065
160651180
ref: 16065
HOLDER-CARBURETOR
€ 68.00
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
920371396
ref: 92037
CLAMP,TUBE
€ 3.50
92037A
920371401
ref: 92037A
CLAMP,JET NEEDLE
€ 2.50
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92037C
920371486
ref: 92037C
CLAMP,55MM
€ 5.50
92055
920551167
ref: 92055
RING-O,MAIN JET COVER
€ 6.50
92059
920591888
ref: 92059
TUBE
€ 4.50
92059A
920591898
ref: 92059A
TUBE,4X7X480
€ 10.00
92059B
920591899
ref: 92059B
TUBE,3.5X6.5X390
€ 7.50
92063
920631369
ref: 92063
JET-MAIN,#162
€ 9.50
92063A
920631370
ref: 92063A
JET-MAIN,#165
€ 9.50
92063B
920631371
ref: 92063B
JET-MAIN,#168
€ 10.00
92063C
920631372
ref: 92063C
JET-MAIN,#170
€ 9.50
92063D
920631373
ref: 92063D
JET-MAIN,#172
€ 10.50
92063E
920631375
ref: 92063E
JET-MAIN,#178
€ 10.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
92064
920641130
ref: 92064
JET-PILOT,#52
€ 11.00
92064A
920641145
ref: 92064A
JET-PILOT,#55
€ 11.50
92064B
920641146
ref: 92064B
JET-PILOT,#58
€ 12.00
92064E
920641147
ref: 92064E
JET-PILOT,#60
€ 12.50
92064F
920641148
ref: 92064F
JET-PILOT,#62
€ 11.50
92081
920811555
ref: 92081
SPRING,ADJUST SCREW
€ 3.50
92143
921431201
ref: 92143
COLLAR,THROTTLE VALVE
€ 15.00
92144
921441494
ref: 92144
SPRING,THROTTLE VALVE
€ 13.00
92170
921701514
ref: 92170
CLAMP
€ 2.50
