SEAT

KX500-E4 1992 USA CANADA

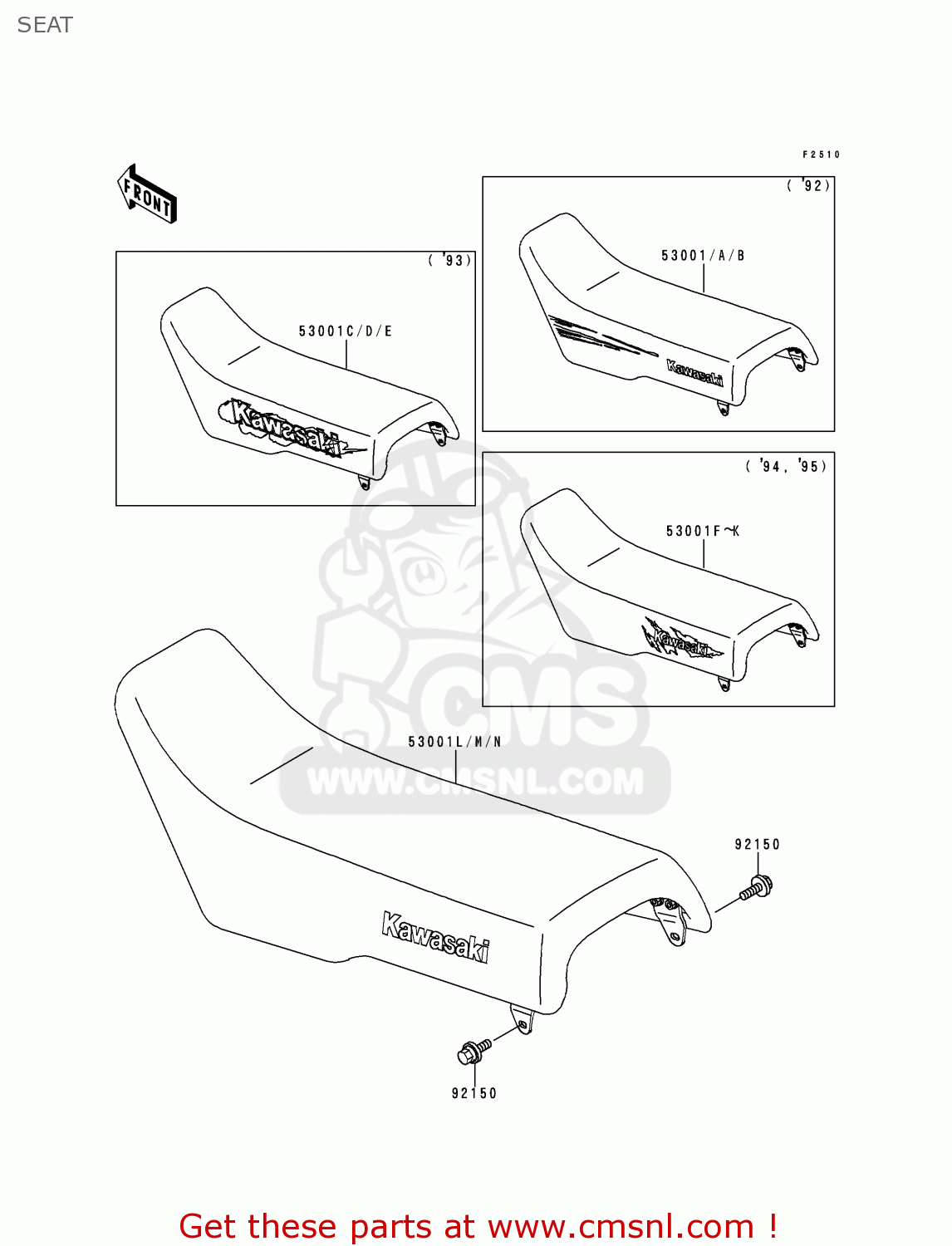

Seat diagram KX500-E4 1992 USA CANADA

SEAT KX500-E4 1992 USA CANADA

SEAT KX500-E4 1992 USA CANADA

prices are in EUR

ref

part #

description

quantity

53001

530011664MY
ref: 53001

SEAT-ASSY,MIDDLE HEIG

€ 269.00

53001A

530011665MY
ref: 53001A

SEAT-ASSY,LOW HEIGHT,

€ 170.50

53001B

530011666MY
ref: 53001B

SEAT-ASSY,HIGH HEIGHT

€ 170.50

92150

921501339
ref: 92150

BOLT,6X20

€ 2.50
