KICKSTARTER MECHANISM

KX500-E4 1992 USA CANADA

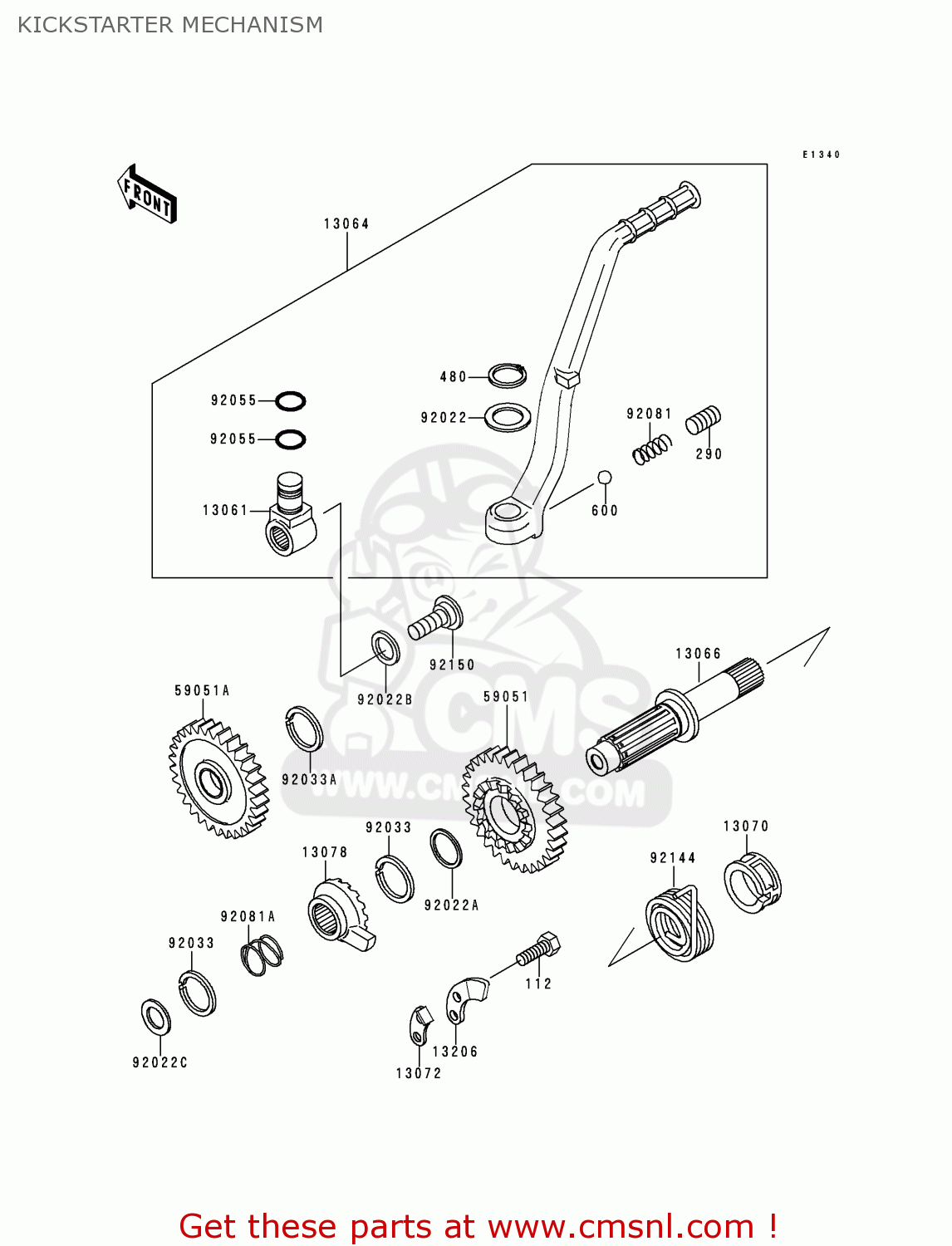

Kickstarter mechanism diagram KX500-E4 1992 USA CANADA

KICKSTARTER MECHANISM KX500-E4 1992 USA CANADA
KICKSTARTER MECHANISM KX500-E4 1992 USA CANADA
KICKSTARTER MECHANISM KX500-E4 1992 USA CANADA
prices are in EUR
ref
part #
description
quantity
112
112G0618
ref: 112
BOLT-UPSET
112G0618
€ 0.50
290
290P0812
ref: 290
SCREW-SET-SOCKET
290P0812
€ 2.00
480
480J1500
ref: 480
CIRCLIP-TYPE-C,15MM
480J1500
€ 1.00
600
600A0800
ref: 600
BALL-STEEL,1/4
600A0800
€ 0.50
13061
130611408
ref: 13061
BOSS,KICK PEDAL
130611408
€ 56.50
13064
130641165
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 188.50
13066
130661056
ref: 13066
SHAFT-KICK
130661056
€ 95.50
13070
13070011
ref: 13070
GUIDE,KICKSTARTER SPR
13070011
€ 6.50
13072
13072014
ref: 13072
STOPPER,KICKSTARTER
13072014
€ 6.50
13078
13078007
ref: 13078
RATCHET
13078007
€ 50.00
13206
132061003
ref: 13206
GUIDE-KICK
132061003
€ 7.00
59051
590511149
ref: 59051
GEAR-SPUR,KICKSTARTER
590511149
€ 114.00
59051A
590511150
ref: 59051A
GEAR-SPUR,IDLE,26T
590511150
€ 90.50
92022
920221205
ref: 92022
WASHER,16.3X24X1
920221205
€ 2.50
92022A
92022159
ref: 92022A
WASHER-THRUST,25MM
92022159
€ 5.50
92022B
920221944
ref: 92022B
WASHER,10X22X3.2
920221944
€ 3.00
92022C
92022252
ref: 92022C
WASHER
92022252
€ 4.00
92033
92033026
ref: 92033
CIRCLIP
92033026
€ 6.00
92033A
92033029
ref: 92033A
CIRCLIP,18MM
92033029
€ 6.50
92055
92055061
ref: 92055
RING-O,10X1.5
92055061
€ 3.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
92081020
€ 2.50
92081A
92081097
ref: 92081A
SPRING
92081097
€ 7.50
92144
921441115
ref: 92144
SPRING,KICKSTARTER
921441115
€ 18.00
92150
921501800
ref: 92150
BOLT
921501800
€ 4.50
