REAR MASTER CYLINDER
KX500-E3 1991 USA CANADA

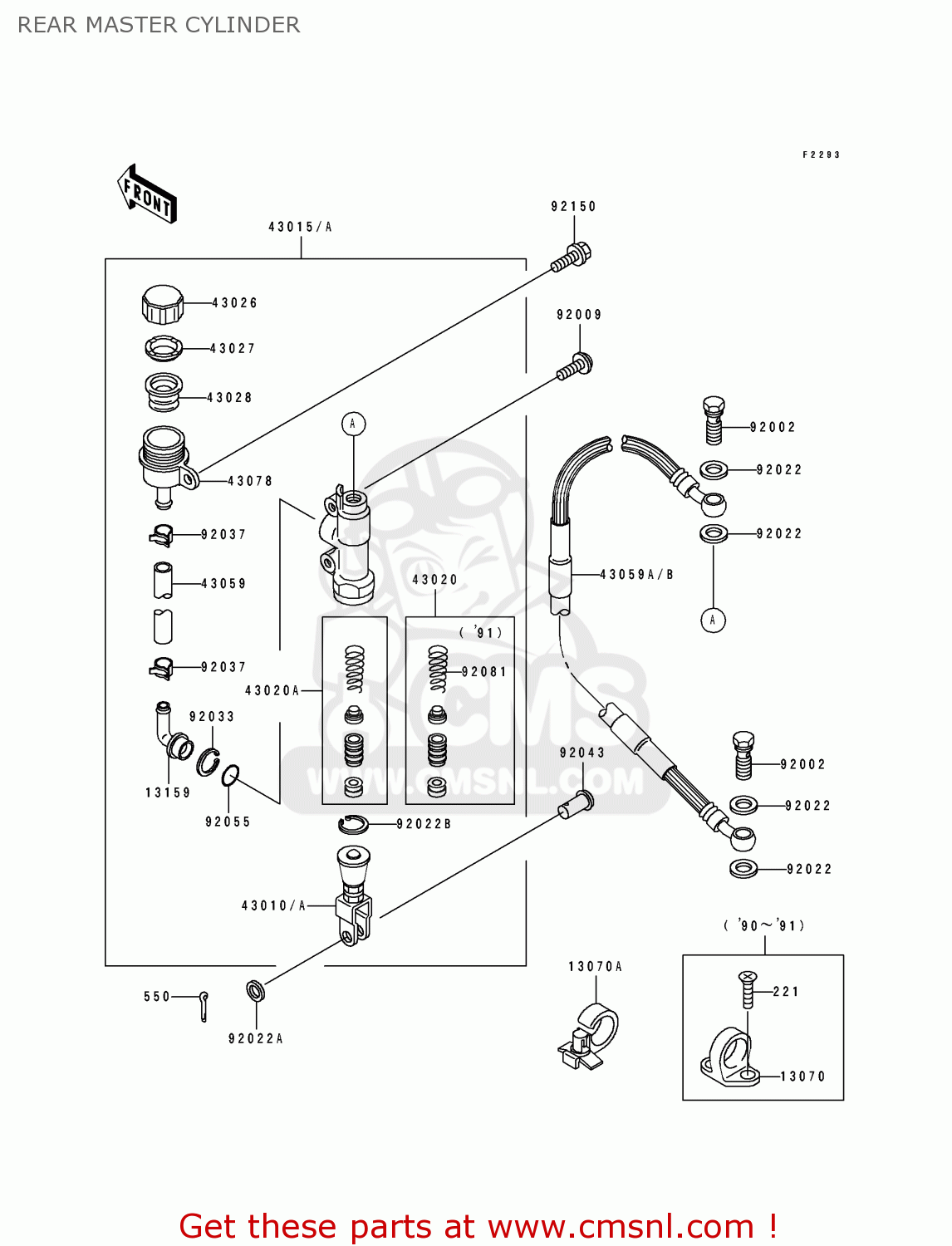

Rear master cylinder diagram KX500-E3 1991 USA CANADA
REAR MASTER CYLINDER KX500-E3 1991 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13070
130701144
ref: 13070
GUIDE,HOSE
€ 5.50
13159
131591056
ref: 13159
CONNECTOR
€ 9.50
43010A
430101068
ref: 43010A
ROD-ASSY-BRAKE
€ 38.50
43015A
430151441
ref: 43015A
CYLINDER-ASSY-MASTER,
€ 300.00
43020
430201057
ref: 43020
PISTON-COMP-BRAKE
€ 47.50
43026
430261058
ref: 43026
CAP-BRAKE
€ 24.50
43027
430271052
ref: 43027
PLATE-DIAPHRAGM
€ 3.00
43028
430281060
ref: 43028
DIAPHRAGM
€ 11.50
43059
430591380
ref: 43059
HOSE-BRAKE,RR MASTER
€ 24.50
43059B
430591682
ref: 43059B
HOSE-BRAKE,RR
€ 72.00
43078
430781068
ref: 43078
RESERVOIR
€ 19.00
92002
920021888
ref: 92002
BOLT,OIL,L=23
€ 3.50
92009
920091287
ref: 92009
SCREW,6X14
€ 1.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
€ 1.50
92022A
920221028
ref: 92022A
WASHER,8.5X13X1
€ 2.50
92022B
920221601
ref: 92022B
WASHER,CIRCRIP
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
€ 3.00
92037
920371710
ref: 92037
CLAMP
€ 6.50
92043
920431039
ref: 92043
PIN
€ 6.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
€ 2.50
92081
920811737
ref: 92081
SPRING
€ 8.50
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
221
221B0610
ref: 221
SCREW-CNTSNK HD,6X10
€ 2.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
