CYLINDER HEAD/CYLINDER
KX500-E3 1991 USA CANADA

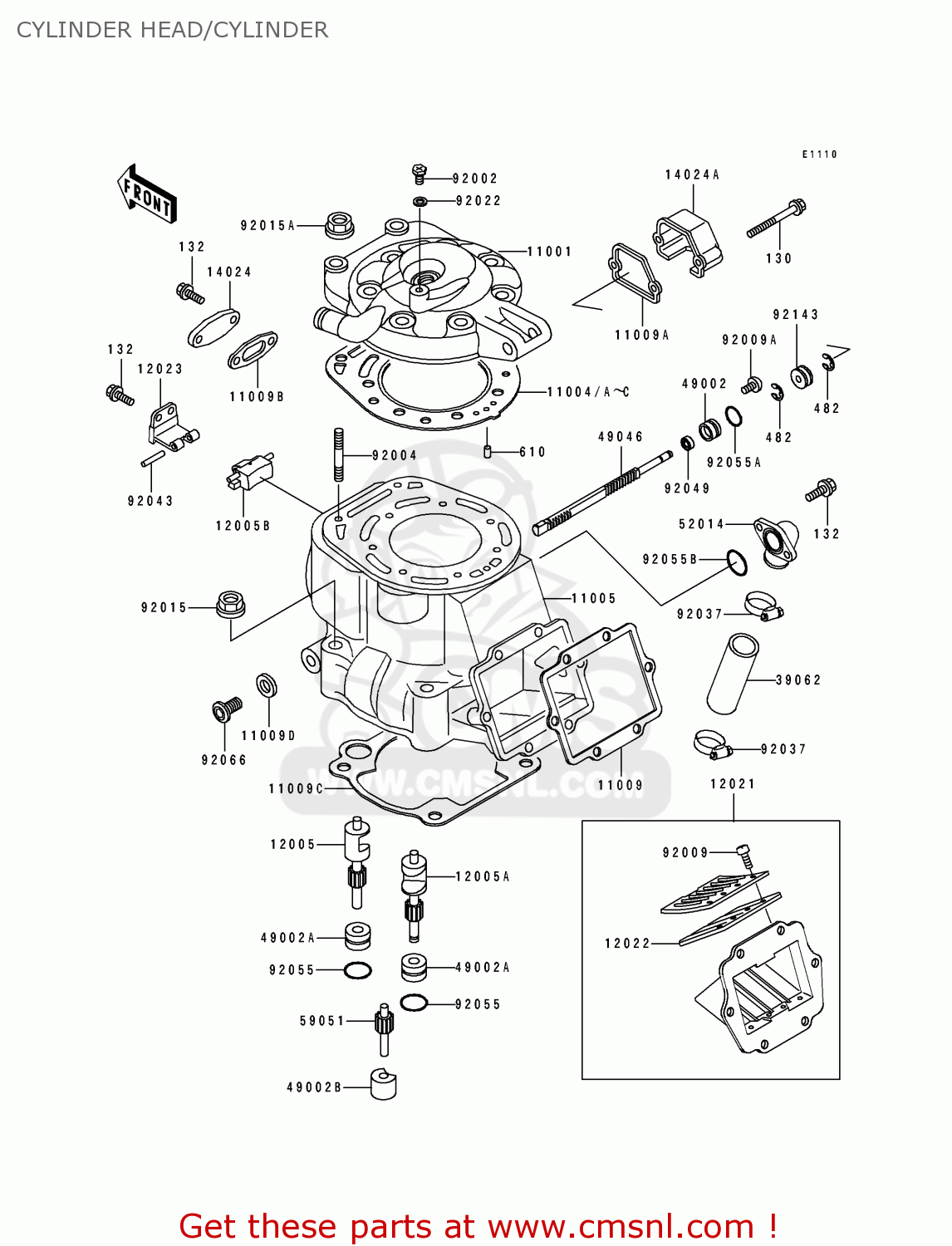

Cylinder head/cylinder diagram KX500-E3 1991 USA CANADA
CYLINDER HEAD/CYLINDER KX500-E3 1991 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11001
110011288
ref: 11001
HEAD-CYLINDER
€ 251.50
11004A
110041186
ref: 11004A
GASKET-HEAD,T=1.0 (MCA)
€ 55.50
11004B
110041187
ref: 11004B
GASKET-HEAD,STEEL,T=0 (NAS)
€ 42.50
11004C
110041209
ref: 11004C
GASKET-HEAD,STEEL,T=0 (NAS)
€ 28.50
11005
110051564
ref: 11005
CYLINDER-ENGINE
€ 925.00
11009
110091252
ref: 11009
GASKET,REED VALVE (MCA)
€ 7.50
11009A
110091539
ref: 11009A
GASKET,GOVERNOR COVER
€ 3.50
11009B
110091701
ref: 11009B
GASKET,VALVE COVER (MCA)
€ 3.50
11009C
110091758
ref: 11009C
GASKET,CYLINDER BASE (MCA)
€ 11.50
11009D
92065073
ref: 11009D
GASKET,12.5X18X1,DRAI (NAS)
€ 2.50
12005
120051109
ref: 12005
VALVE-EXHAUST,LH
€ 69.00
12005A
120051110
ref: 12005A
VALVE-EXHAUST,RH
€ 85.00
12005B
120051111
ref: 12005B
VALVE-EXHAUST,CENTER
€ 59.00
12021
120211070
ref: 12021
VALVE-ASSY-REED
€ 107.50
12022
120221017
ref: 12022
VALVE-REED
€ 19.50
12023
120231058
ref: 12023
HOLDER-VALVE,CENTER
€ 70.50
14024
140241588
ref: 14024
COVER,CENTER VALVE
€ 7.50
14024A
140241611
ref: 14024A
COVER,GOVERNOR
€ 9.00
39062
390621137
ref: 39062
HOSE-COOLING,19X25X75
€ 17.00
49002
490021062
ref: 49002
GUIDE-VALVE,ROD
€ 11.50
49002A
490021093
ref: 49002A
GUIDE-VALVE
€ 11.50
49002B
490021094
ref: 49002B
GUIDE-VALVE,IDLE GEAR
€ 11.50
49046
490461064
ref: 49046
ROD-GOVERNOR
€ 59.00
52014
520141065
ref: 52014
ELBOW
€ 25.50
59051
590511205
ref: 59051
GEAR-SPUR,IDLE
€ 27.00
92002
920021222
ref: 92002
BOLT,6X10
€ 5.50
92004
920041009
ref: 92004
STUD, 8X35
€ 4.00
92009
920091371
ref: 92009
SCREW,3X6
€ 2.50
92009A
920091502
ref: 92009A
SCREW
€ 2.50
92015
92015077
ref: 92015
NUT, 10MM
€ 3.00
92015A
920151143
ref: 92015A
NUT,8MM
€ 0.50
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92043
920431373
ref: 92043
PIN,4X23.8
€ 2.50
92049
920491206
ref: 92049
SEAL-OIL,RSO-5.5 11 4
€ 7.50
92055
92055022
ref: 92055
'O' RING
€ 4.00
92055A
92055025
ref: 92055A
'O' RING
€ 3.00
92055B
92055055
ref: 92055B
'0'RING
€ 2.50
92066
920661222
ref: 92066
PLUG,12X10
€ 8.00
92143
921431056
ref: 92143
COLLAR
€ 6.50
130
130G0535
ref: 130
BOLT-FLANGED
€ 2.50
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
482
482J4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
