RADIATOR
KX500-E3 1991 EUROPE UK AL AS

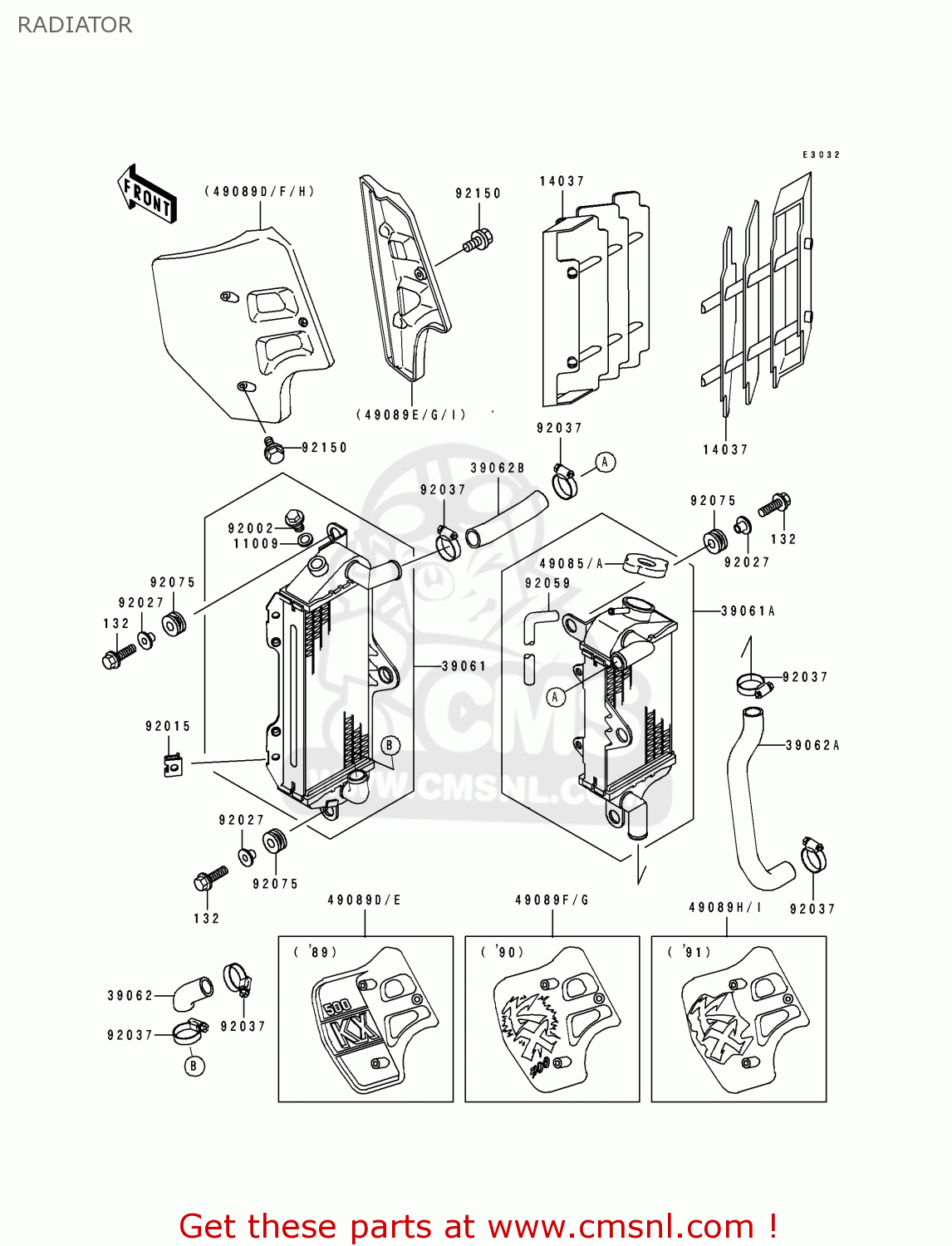

Radiator diagram KX500-E3 1991 EUROPE UK AL AS
RADIATOR KX500-E3 1991 EUROPE UK AL AS
×
prices are in EUR
ref
part #
description
quantity
11009
110091152
ref: 11009
GASKET,DRAIN BOLT (NAS)
€ 4.50
14037
1403710996W
ref: 14037
SCREEN,L.GREEN
€ 16.50
39061
390611112
ref: 39061
RADIATOR-ASSY
€ 359.00
39061A
390611113
ref: 39061A
RADIATOR-ASSY
€ 359.00
39062
390621138
ref: 39062
HOSE-COOLING,RADIATOR
€ 8.00
39062A
390621209
ref: 39062A
HOSE-COOLING,RADIATOR
€ 23.50
39062B
390621274
ref: 39062B
HOSE-COOLING,RADIATOR
€ 17.00
49085
490851003
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49085A
490851059
ref: 49085A
CAP-ASSY-PRESSURE
€ 39.50
49089H
4908951146W
ref: 49089H
SHROUD-ENGINE,LH,L.GR
€ 85.00
49089I
4908951156W
ref: 49089I
SHROUD-ENGINE,RH,L.GR
€ 85.00
92002
920021682
ref: 92002
BOLT,RADIATOR DRAIN
€ 13.50
92015
920151487
ref: 92015
NUT
€ 3.00
92027
92027194
ref: 92027
COLLAR
€ 3.50
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92059
920591383
ref: 92059
TUBE,5X9X800
€ 7.50
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
92150
921501435
ref: 92150
BOLT
€ 2.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
