CRANKSHAFT/PISTON

KX500-E3 1991 EUROPE UK AL AS

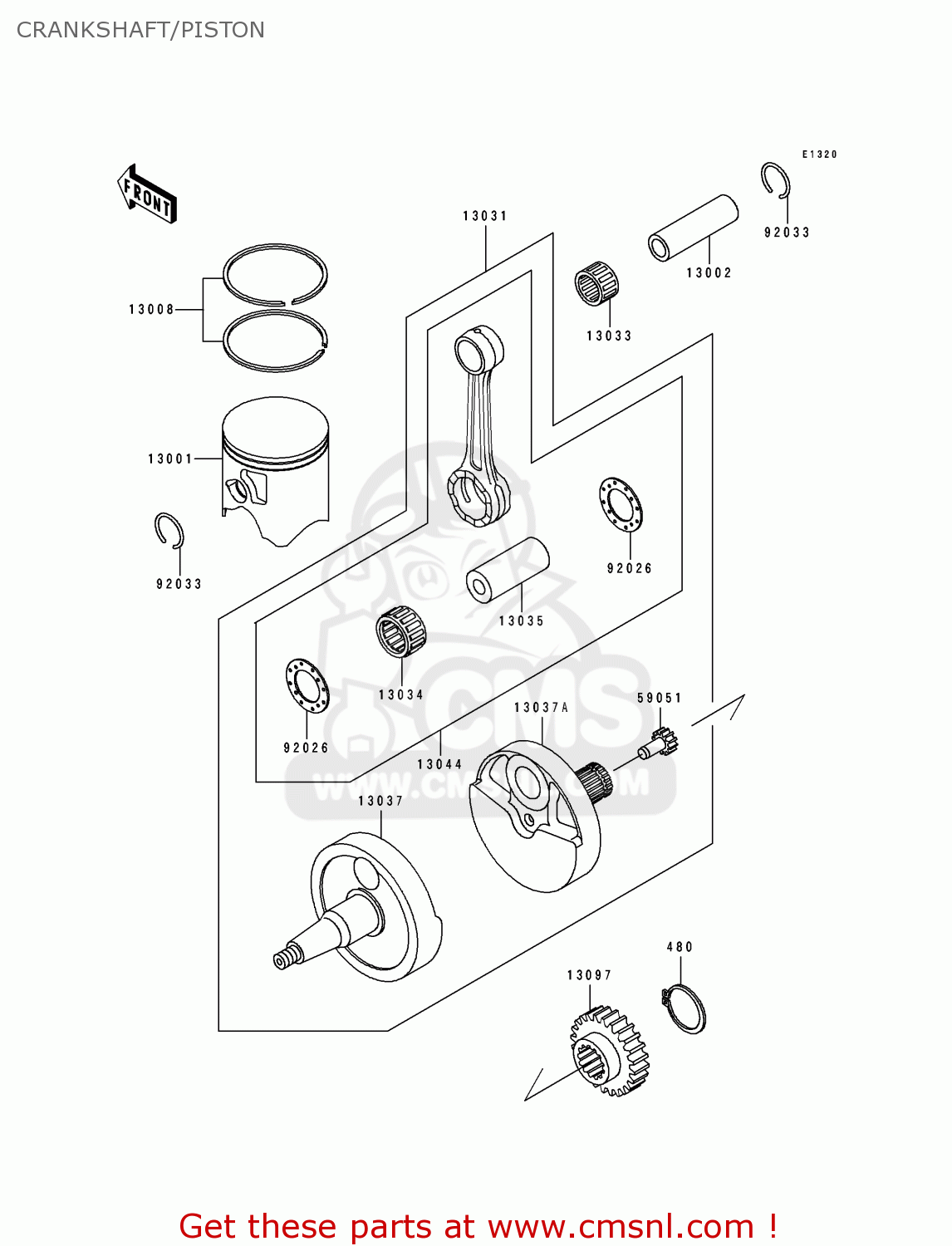

Crankshaft/piston diagram KX500-E3 1991 EUROPE UK AL AS

CRANKSHAFT/PISTON KX500-E3 1991 EUROPE UK AL AS
CRANKSHAFT/PISTON KX500-E3 1991 EUROPE UK AL AS
CRANKSHAFT/PISTON KX500-E3 1991 EUROPE UK AL AS
prices are in EUR
ref
part #
description
quantity
13001
130011327
ref: 13001
PISTON-ENGINE,(B)
€ 146.50
13002
130021067
ref: 13002
PIN-PISTON
130021067
€ 21.50
13008
130081103
ref: 13008
RING-SET-PISTON
130081103
€ 65.50
13031
130311325
ref: 13031
CRANKSHAFT-COMP
€ 818.00
13033
130331055
ref: 13033
BEARING-SMALL END,KTV
130331055
€ 26.00
13034
130341083
ref: 13034
BEARING-BIG END
130341083
€ 62.00
13035
130351008
ref: 13035
PIN-CRANK
130351008
€ 50.50
13037
130371358
ref: 13037
CRANKSHAFT,LH
130371358
€ 382.00
13037A
130371359
ref: 13037A
CRANKSHAFT,RH
€ 382.00
13044
130445076
ref: 13044
SET-CONNECTING ROD
€ 134.50
13097
130971205
ref: 13097
GEAR-PRIMARY SPUR,26T
€ 78.00
59051
590511128
ref: 59051
GEAR-SPUR,WATER PUMP,
590511128
€ 27.50
92026
920261346
ref: 92026
SPACER,26X44X1.0
920261346
€ 17.50
92033
92036008
ref: 92033
CIRCLIP-PISTON PIN
92036008
€ 0.50
480
480J2400
ref: 480
CIRCLIP-TYPE-C,24MM
480J2400
€ 3.50
