RADIATOR
KX250T7F KX250F 2007 USA CANADA

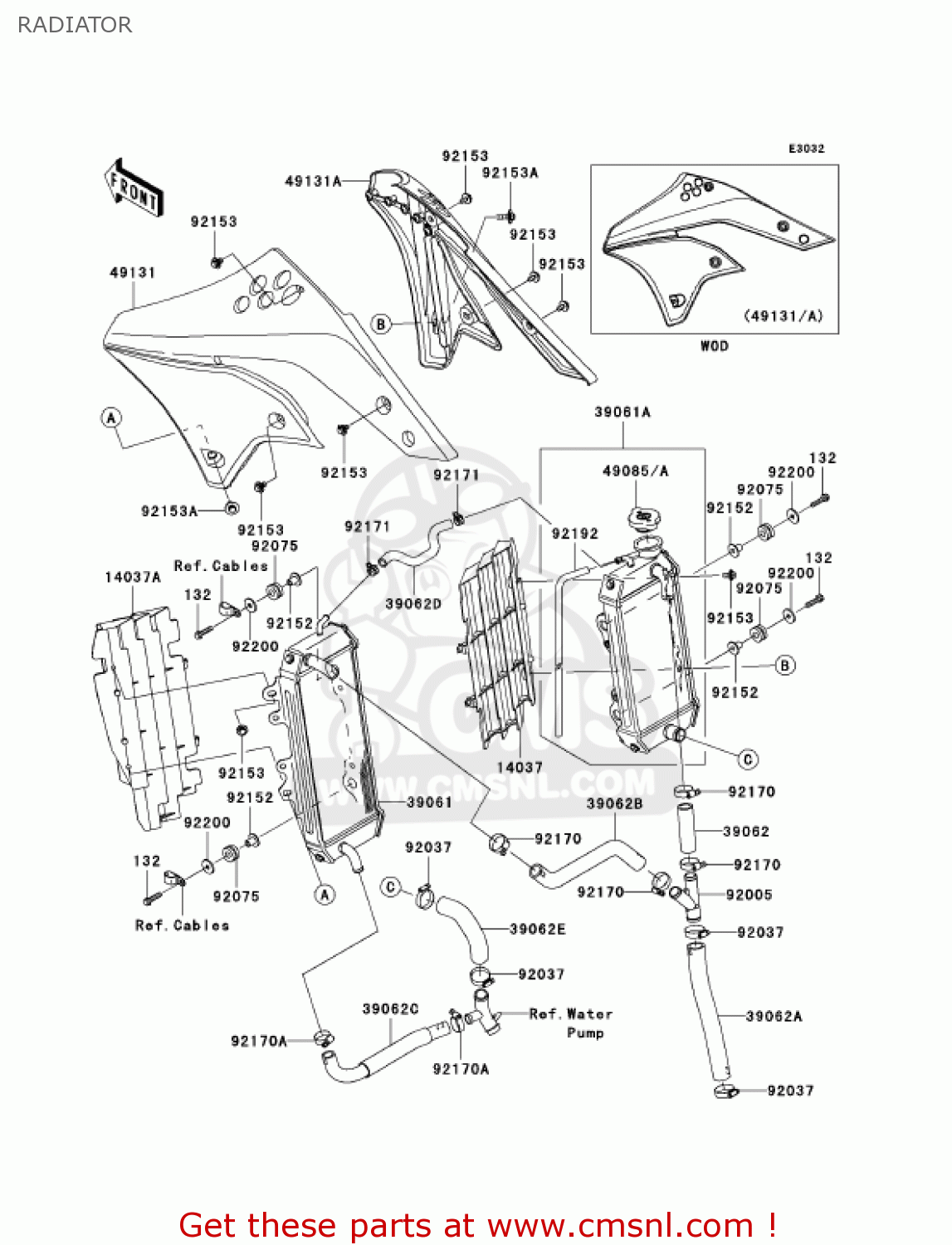

Radiator diagram KX250T7F KX250F 2007 USA CANADA
RADIATOR KX250T7F KX250F 2007 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132L0625
ref: 132
BOLT-FLANGED-SMALL,6X
€ 2.00
14037
140370058RZ
ref: 14037
SCREEN,RH,WHITE
€ 17.50
14037A
140370063RZ
ref: 14037A
SCREEN,LH,WHITE
€ 17.50
39061
390610054
ref: 39061
RADIATOR-ASSY,LH
€ 220.50
39061A
390610074
ref: 39061A
RADIATOR-ASSY,RH
€ 254.00
39062
390620091
ref: 39062
HOSE-COOLING
€ 7.00
39062A
390620126
ref: 39062A
HOSE-COOLING,HEAD-FIT
€ 22.00
39062B
390620127
ref: 39062B
HOSE-COOLING,RAD LH-F
€ 20.50
39062C
390620129
ref: 39062C
HOSE-COOLING,RAD LH-W
€ 32.50
39062D
390620130
ref: 39062D
HOSE-COOLING,RAD LH-R
€ 15.00
39062E
390620153
ref: 39062E
HOSE-COOLING,RAD RH-W
€ 13.00
49085
490851070
ref: 49085
CAP-ASSY-PRESSURE
€ 37.50
49085A
490851073
ref: 49085A
(OPTION)
CAP-ASSY-PRESSURE
€ 37.50
49131
491315095
ref: 49131
SHROUD-ENGINE,LH
€ 62.50
49131A
491315096
ref: 49131A
SHROUD-ENGINE,RH
€ 62.50
92005
920050065
ref: 92005
FITTING
€ 22.50
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
92152
921520379
ref: 92152
COLLAR,L=12.6,T=1.6
€ 4.00
92153
921530503
ref: 92153
BOLT,6X12
€ 2.00
92153A
921530864
ref: 92153A
BOLT,6X20
€ 5.00
92170
921701077
ref: 92170
CLAMP,COOLING HOSE
€ 6.50
92170A
921701283
ref: 92170A
CLAMP
€ 9.00
92171
921710372
ref: 92171
CLAMP
€ 2.00
92192
921920167
ref: 92192
TUBE,6X9X640
€ 9.00
92200
922000271
ref: 92200
WASHER,6.5X22X2.3
€ 2.00
