FRONT FORK
KX250T7F KX250F 2007 USA CANADA

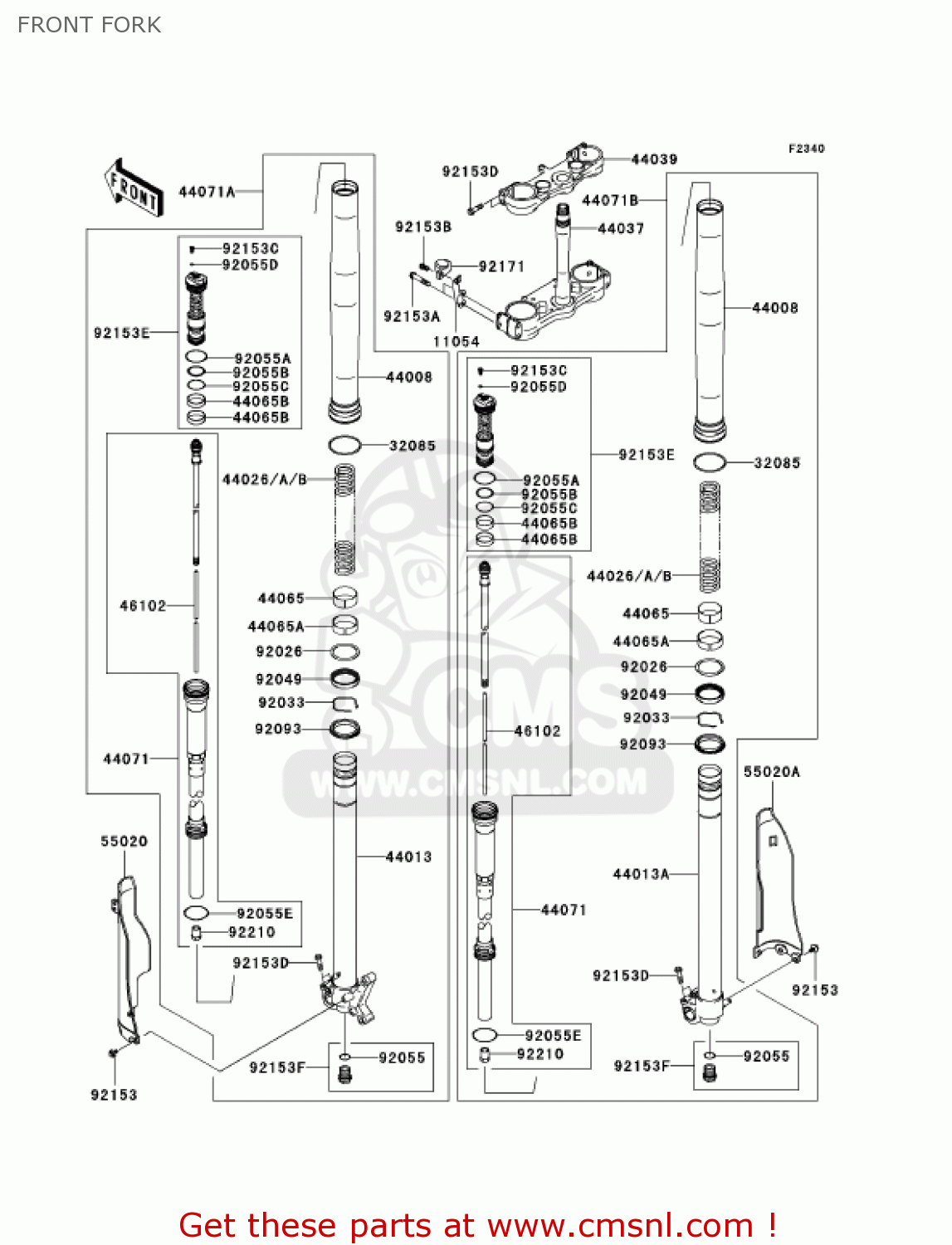

Front fork diagram KX250T7F KX250F 2007 USA CANADA
FRONT FORK KX250T7F KX250F 2007 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11054
110540111
ref: 11054
BRACKET
€ 7.50
32085
320850073
ref: 32085
STOPPER,RING
€ 4.00
44008
440080029828
ref: 44008
PIPE-FORK OUTER,GOLD
€ 458.50
44013
440130040
ref: 44013
PIPE-FORK INNER,LH
€ 233.50
44013
440130041
ref: 44013
PIPE-FORK INNER,RH
€ 258.00
44026
440260075
ref: 44026
(OPTION)
SPRING-FRONT FORK,K=4
€ 79.00
44026
440260076
ref: 44026
SPRING-FRONT FORK,K=4
€ 79.00
44026
440260077
ref: 44026
(OPTION)
SPRING-FRONT FORK,K=4
€ 79.00
44037
44037003410Y
ref: 44037
HOLDER-FORK UNDER,M.M
€ 419.00
44039
44039003610Y
ref: 44039
HOLDER-FORK UPPER,M.M
€ 215.50
44065
440650016
ref: 44065
BUSHING-FRONT FORK,SL
€ 14.00
44065
440650017
ref: 44065
BUSHING-FRONT FORK,GU
€ 14.00
44065
440650018
ref: 44065
BUSHING-FRONT FORK,SL
€ 4.50
44071
440710382
ref: 44071
DAMPER-ASSY,FORK
€ 393.00
44071
440715015
ref: 44071
DAMPER-ASSY,FORK,LH
€ 740.50
44071
440715016
ref: 44071
DAMPER-ASSY,FORK,RH
€ 740.50
46102
461020075
ref: 46102
ROD,PUSH
€ 18.50
55020
550200172RZ
ref: 55020
GUARD,FORK,LH,WHITE
€ 45.50
55020
550200173RZ
ref: 55020
GUARD,FORK,RH,WHITE
€ 42.00
92026
920260089
ref: 92026
SPACER,SEAL
€ 7.50
92033
920330039
ref: 92033
RING-SNAP
€ 3.50
92049
920490074
ref: 92049
SEAL-OIL
€ 15.00
92055
920550090
ref: 92055
RING-O,CENTER BOLT
€ 2.50
92055
920550091
ref: 92055
RING-O
€ 2.50
92055
920550092
ref: 92055
RING-O
€ 2.50
92055
920550093
ref: 92055
RING-O
€ 2.50
92055
920550094
ref: 92055
RING-O
€ 2.00
92055
920550095
ref: 92055
RING-O
€ 3.00
92093
920930059
ref: 92093
SEAL,DUST
€ 13.00
92153
921530936
ref: 92153
BOLT,FLANGED,6X14
€ 2.00
92153
921530990
ref: 92153
BOLT,FLANGED
€ 3.00
92153
921531397
ref: 92153
BOLT,FLANGED
€ 2.50
92153
921531398
ref: 92153
BOLT,PLUG
€ 2.00
92153
921531399
ref: 92153
BOLT,FLANGED
€ 3.00
92153
92153170110J
ref: 92153
BOLT,FORK,GOLD
€ 140.50
92153
921531778
ref: 92153
BOLT,CENTER
€ 38.50
92171
921710506
ref: 92171
CLAMP,BRAKE HOSE
€ 14.50
92210
922100268
ref: 92210
NUT,LOCK
€ 10.50
