CRANKCASE
KX250-M2 KX250 2004 USA CANADA

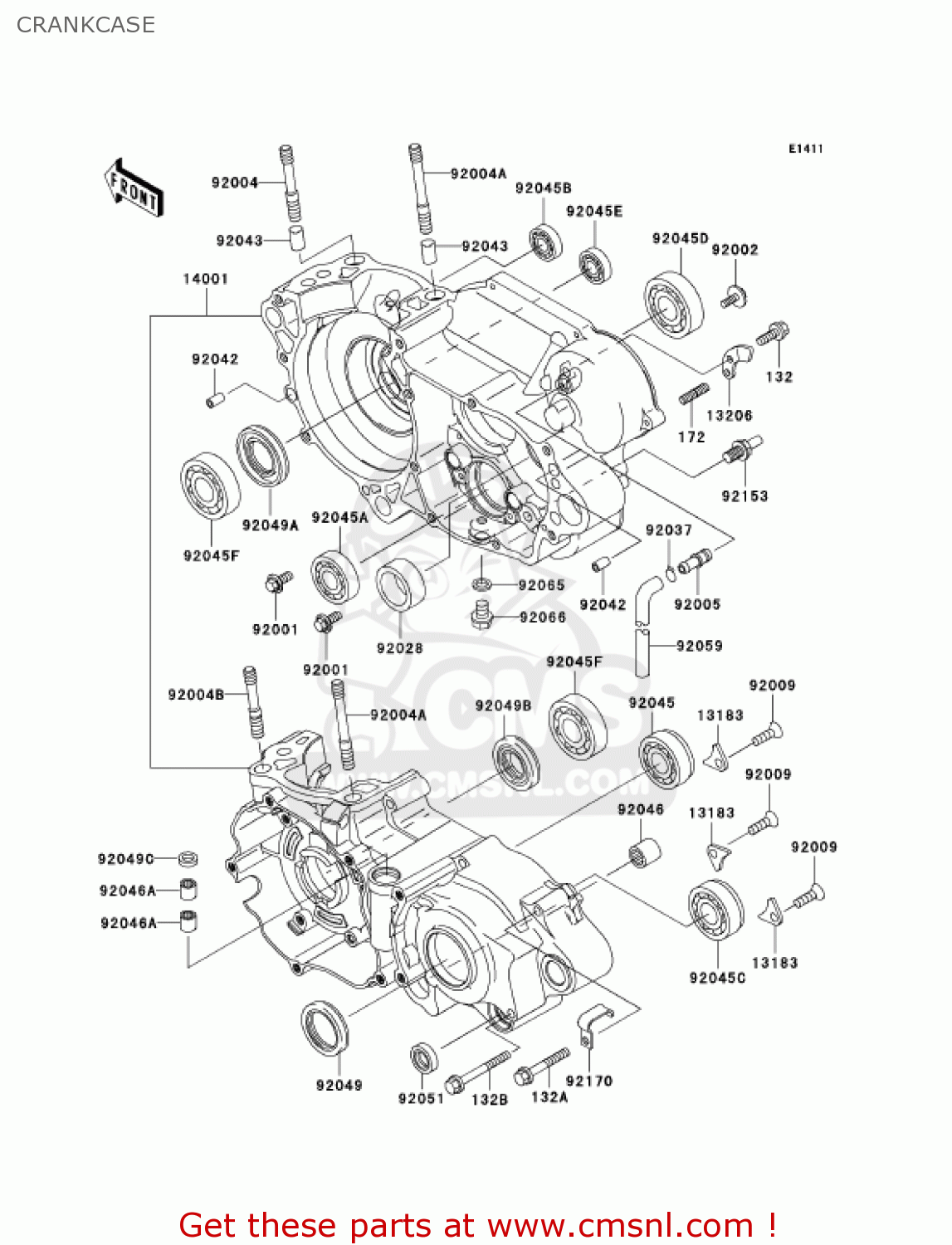

Crankcase diagram KX250-M2 KX250 2004 USA CANADA
CRANKCASE KX250-M2 KX250 2004 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0645
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132G0675
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
172
172G0612
ref: 172
BOLT-STUD,6X12
€ 1.00
13183
131831182
ref: 13183
PLATE
€ 3.00
13206
132061062
ref: 13206
GUIDE-KICK
€ 7.00
14001
140010014
ref: 14001
SET-CRANKCASE
€ 703.50
92001
920011829
ref: 92001
BOLT,W/WASHER,6X14
€ 2.50
92002
920021659
ref: 92002
BOLT
€ 3.00
92004
920041165
ref: 92004
STUD,10X53
€ 6.50
92004A
920041203
ref: 92004A
STUD,10X88
€ 8.50
92004B
920041250
ref: 92004B
STUD,10X47
€ 7.50
92005
920051210
ref: 92005
FITTING,BREATHER
€ 8.50
92009
920091563
ref: 92009
SCREW,6X10
€ 2.50
92028
92028131
ref: 92028
BUSHING
€ 28.00
92037
920371610
ref: 92037
CLAMP
€ 1.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92043
920431266
ref: 92043
PIN,11X14X12.3
€ 1.00
92045
920450013
ref: 92045
BEARING-BALL,3TM-SX03
€ 32.00
92045A
920451058
ref: 92045A
BEARING-BALL,6905Z
€ 36.50
92045B
920451123
ref: 92045B
BEARING-BALL,#628
€ 23.50
92045C
920451240
ref: 92045C
BEARING-BALL,TMB205/5
€ 52.50
92045D
920451300
ref: 92045D
BEARING-BALL,63/22/25
€ 36.00
92045E
920451345
ref: 92045E
BEARING-BALL,626BUMC3
€ 11.00
92045F
920451445
ref: 92045F
BEARING-BALL,CRANK MA
€ 66.00
92046
92046037
ref: 92046
BEARING-NEEDLE,7E-HK1
€ 17.00
92046A
920461010
ref: 92046A
BEARING-NEEDLE,HK1210
€ 17.00
92049
920490030
ref: 92049
SEAL-OIL
€ 14.00
92049A
920490031
ref: 92049A
SEAL-OIL,TCJ 25 45 7
€ 21.00
92049B
920490032
ref: 92049B
SEAL-OIL,TCJ 20 40 7
€ 18.00
92049C
920491262
ref: 92049C
SEAL-OIL
€ 4.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92059
92059103
ref: 92059
TUBE,BREATHER
€ 9.00
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661437
ref: 92066
PLUG,DRAIN
€ 4.00
92153
921531201
ref: 92153
BOLT,RETURN
€ 6.50
92170
921701555
ref: 92170
CLAMP
€ 4.50
