CARBURETOR
KX250-M2 KX250 2004 USA CANADA

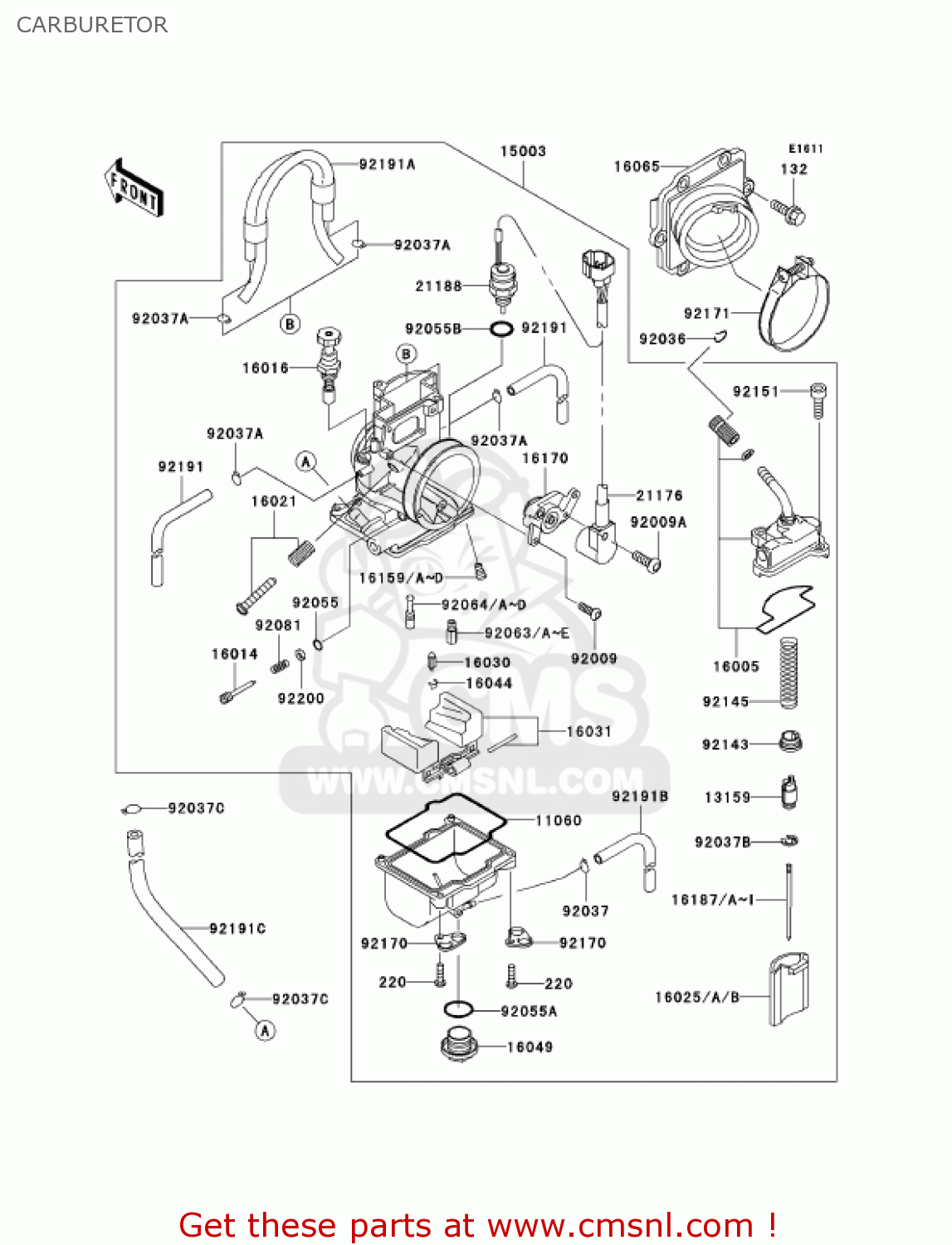

Carburetor diagram KX250-M2 KX250 2004 USA CANADA
CARBURETOR KX250-M2 KX250 2004 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11060
110601254
ref: 11060
GASKET,FLOAT CHAMBER (NAS)
€ 11.50
13159
131591063
ref: 13159
CONNECTOR,THROTTLE CA
€ 13.50
15003
150030009
ref: 15003
CARBURETOR-ASSY
€ 579.50
16005
160051083
ref: 16005
TOP-CHAMBER
€ 38.50
16014
160141058
ref: 16014
SCREW-PILOT AIR
€ 14.00
16016
160161085
ref: 16016
PLUNGER
€ 30.00
16021
160211198
ref: 16021
SCREW-THROTTLE STOP
€ 14.00
16025
160251215
ref: 16025
(OPTION)
VALVE-THROTTLE,#6
€ 89.50
16025A
160251216
ref: 16025A
(OPTION)
VALVE-THROTTLE,#7
€ 85.50
16025B
160251217
ref: 16025B
VALVE-THROTTLE,#8
€ 89.50
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311100
ref: 16031
FLOAT
€ 40.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16049
160491051
ref: 16049
COVER-MAIN JET
€ 23.50
16065
160650002
ref: 16065
HOLDER-CARBURETOR
€ 81.50
16159
161591053
ref: 16159
JET-POWER,#50
€ 10.00
16159A
161591054
ref: 16159A
(OPTION)
JET-POWER,#55
€ 9.50
16159B
161591055
ref: 16159B
(OPTION)
JET-POWER,#52
€ 10.00
16159C
161591058
ref: 16159C
(OPTION)
JET-POWER,#48
€ 9.50
16159D
161591060
ref: 16159D
(OPTION)
JET-POWER,#45
€ 11.50
16170
161700001
ref: 16170
LINK-ASSY
€ 74.50
16187
161871154
ref: 16187
(OPTION)
NEEDLE-JET,NALD 2.685
€ 24.50
16187A
161871155
ref: 16187A
(OPTION)
NEEDLE-JET,NALE 2.695
€ 24.50
16187B
161871156
ref: 16187B
NEEDLE-JET,NALF
€ 24.50
16187C
161871157
ref: 16187C
(OPTION)
NEEDLE-JET,NALG 2.715
€ 24.50
16187D
161871158
ref: 16187D
(OPTION)
NEEDLE-JET,NALH 2.725
€ 28.00
16187E
161871159
ref: 16187E
(OPTION)
NEEDLE-JET,NAFD 2.685
€ 28.00
16187F
161871160
ref: 16187F
(OPTION)
NEEDLE-JET,NAFE 2.695
€ 24.50
16187G
161871161
ref: 16187G
(OPTION)
NEEDLE-JET,NAFF 2.705
€ 24.50
16187H
161871162
ref: 16187H
(OPTION)
NEEDLE-JET,NAFG 2.715
€ 28.00
16187I
161871163
ref: 16187I
(OPTION)
NEEDLE-JET,NAFH 2.725
€ 28.00
21176
211760014
ref: 21176
SENSOR
€ 85.00
21188
211880002
ref: 21188
SOLENOID
€ 71.00
92009
920091889
ref: 92009
SCREW
€ 1.50
92009A
920091981
ref: 92009A
SCREW,THROTTLE SENSOR
€ 1.50
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
920371142
ref: 92037
CLAMP,TUBE
€ 2.50
92037A
920371396
ref: 92037A
CLAMP,TUBE
€ 3.50
92037B
920371401
ref: 92037B
CLAMP,JET NEEDLE
€ 2.50
92037C
92037147
ref: 92037C
CLAMP,CHAIN OILER
€ 4.50
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551167
ref: 92055A
RING-O,MAIN JET COVER
€ 6.50
92055B
920551580
ref: 92055B
RING-O
€ 1.50
92063
920631368
ref: 92063
(OPTION)
JET-MAIN,#160
€ 10.00
92063A
920631369
ref: 92063A
(OPTION)
JET-MAIN,#162
€ 9.50
92063B
920631370
ref: 92063B
JET-MAIN,#165
€ 9.50
92063C
920631371
ref: 92063C
(OPTION)
JET-MAIN,#168
€ 10.00
92063D
920631372
ref: 92063D
(OPTION)
JET-MAIN,#170
€ 9.50
92063E
920631374
ref: 92063E
(OPTION)
JET-MAIN,#175
€ 9.50
92064
920641130
ref: 92064
JET-PILOT,#52
€ 11.00
92064A
920641143
ref: 92064A
(OPTION)
JET-PILOT,#48
€ 11.50
92064B
920641144
ref: 92064B
(OPTION)
JET-PILOT
€ 11.00
92064C
920641145
ref: 92064C
(OPTION)
JET-PILOT,#55
€ 11.50
92064D
920641146
ref: 92064D
(OPTION)
JET-PILOT,#58
€ 12.00
92081
920811555
ref: 92081
SPRING,ADJUST SCREW
€ 3.50
92143
921431201
ref: 92143
COLLAR,THROTTLE VALVE
€ 15.00
92145
921450012
ref: 92145
SPRING,THROTTLE VALVE
€ 12.50
92151
921511507
ref: 92151
BOLT
€ 2.00
92170
921701582
ref: 92170
CLAMP
€ 2.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
220
220D0414
ref: 220
SCREW-PAN-CROS
€ 2.00
92171
921711105
ref: 92171
CLAMP
€ 9.00
92191
921911254
ref: 92191
TUBE,4X7X480
€ 11.00
92191A
921911255
ref: 92191A
TUBE,AIR VENT
€ 11.50
92191B
921911256
ref: 92191B
TUBE,3.5X6.5X330
€ 7.00
92191C
921911743
ref: 92191C
TUBE,5.3X10.5X160
€ 7.00
92200
922001466
ref: 92200
WASHER
€ 1.50
