TRANSMISSION
KX250-M1 KX250 2003 USA CANADA

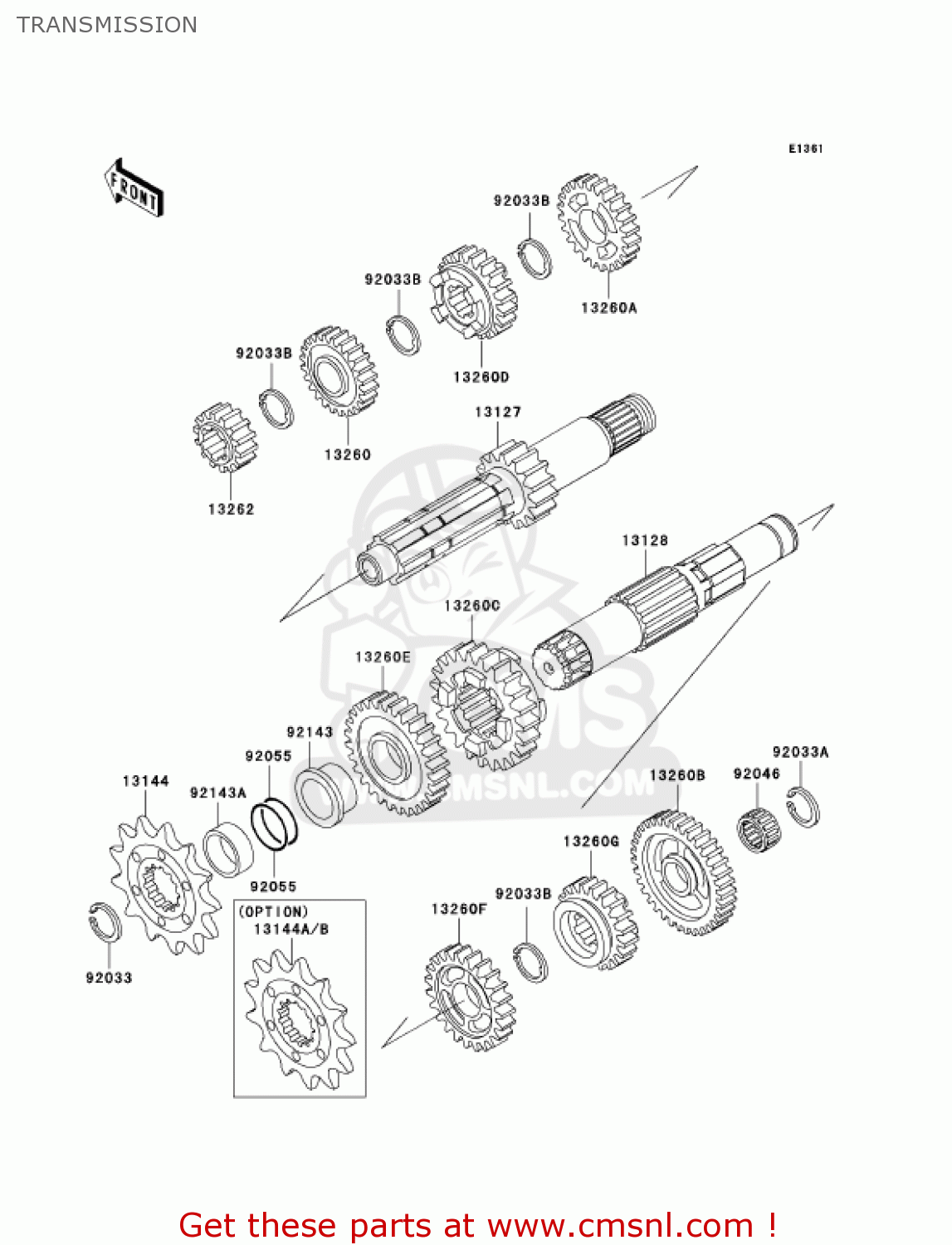

Transmission diagram KX250-M1 KX250 2003 USA CANADA
TRANSMISSION KX250-M1 KX250 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
131271303
ref: 13127
SHAFT-TRANSMISSION IN
€ 185.00
13128
131281265
ref: 13128
SHAFT-TRANSMISSION OU
€ 139.50
13144
131441294
ref: 13144
SPROCKET-OUTPUT,13T
€ 30.50
13144A
131441295
ref: 13144A
(OPTION)
SPROCKET-OUTPUT,14T
€ 30.50
13144B
131441296
ref: 13144B
(OPTION)
SPROCKET-OUTPUT,15T
€ 30.00
13260
132601928
ref: 13260
GEAR,INPUT 4TH,21T
€ 114.50
13260A
132601929
ref: 13260A
GEAR,INPUT TOP,23T
€ 102.50
13260B
132601930
ref: 13260B
GEAR,OUTPUT LOW,27T
€ 114.50
13260C
132601933
ref: 13260C
GEAR,OUTPUT 4TH,21T
€ 101.50
13260D
132601964
ref: 13260D
GEAR,INPUT 3RD,17T
€ 108.00
13260E
132601965
ref: 13260E
GEAR,OUTPUT 2ND,23T
€ 114.50
13260F
132601966
ref: 13260F
GEAR,OUTPUT 3RD,20T
€ 93.50
13260G
132601967
ref: 13260G
GEAR,OUTPUT TOP,20T
€ 130.00
13262
132621075
ref: 13262
GEAR,INPUT 2ND,16T
€ 104.50
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033029
ref: 92033A
CIRCLIP,18MM
€ 6.50
92033B
920331089
ref: 92033B
RING-SNAP,25MM
€ 3.50
92046
920461170
ref: 92046
BEARING-NEEDLE,KT2026
€ 9.00
92055
92055035
ref: 92055
O RING
€ 3.00
92143
921431361
ref: 92143
COLLAR
€ 20.00
92143A
921431441
ref: 92143A
COLLAR,SPROCKET
€ 17.50
