GEAR CHANGE MECHANISM

KX250-K4 1997 EUROPE FR AS

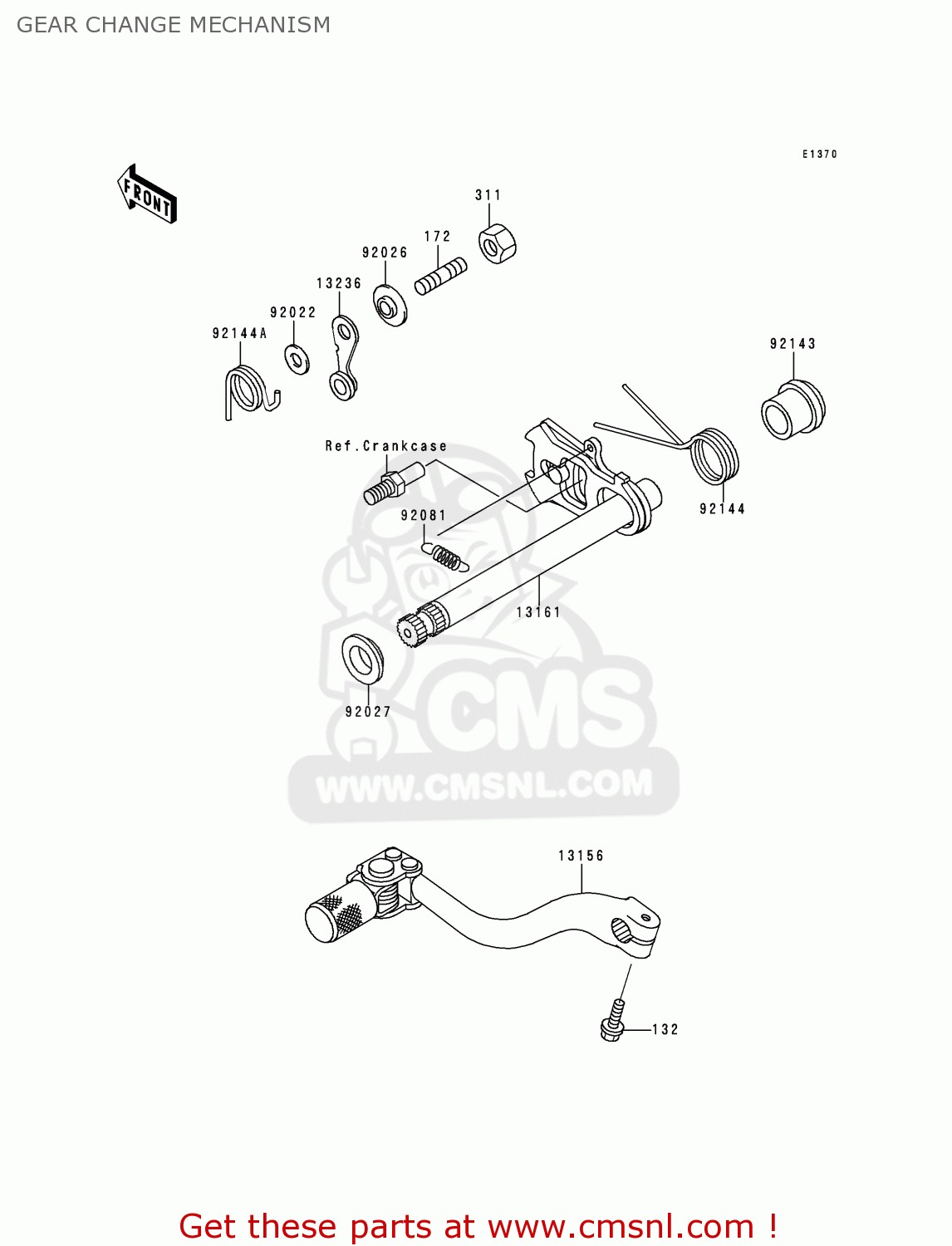

Gear change mechanism diagram KX250-K4 1997 EUROPE FR AS

prices are in EUR

ref

part #

description

quantity

132

132G0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

172

172G0612
ref: 172

BOLT-STUD,6X12

€ 1.00

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

13156

131561347
ref: 13156

LEVER-CHANGE,PEDAL

€ 93.50

13161

131611233
ref: 13161

LEVER-COMP-CHANGE SHA

€ 38.50

13236

132361253
ref: 13236

LEVER-COMP,POSITION

€ 7.50

92022

920221827
ref: 92022

WASHER,6X12.8X1.2

€ 3.00

92026

920261217
ref: 92026

SPACER

€ 3.50

92027

920271512
ref: 92027

COLLAR,CHANGE SHAFT,L

€ 8.00

92081

92081076
ref: 92081

SPRING-CHANG LEVER

€ 3.50

92143

921431498
ref: 92143

COLLAR,RETURN SPRING

€ 7.00

92144

921441485
ref: 92144

SPRING,CHANGE SHAFT R

€ 4.50

92144A

921441997
ref: 92144A

SPRING,LEVER POSITION

€ 6.00
