FRAME

KX250-K4 1997 EUROPE FR AS

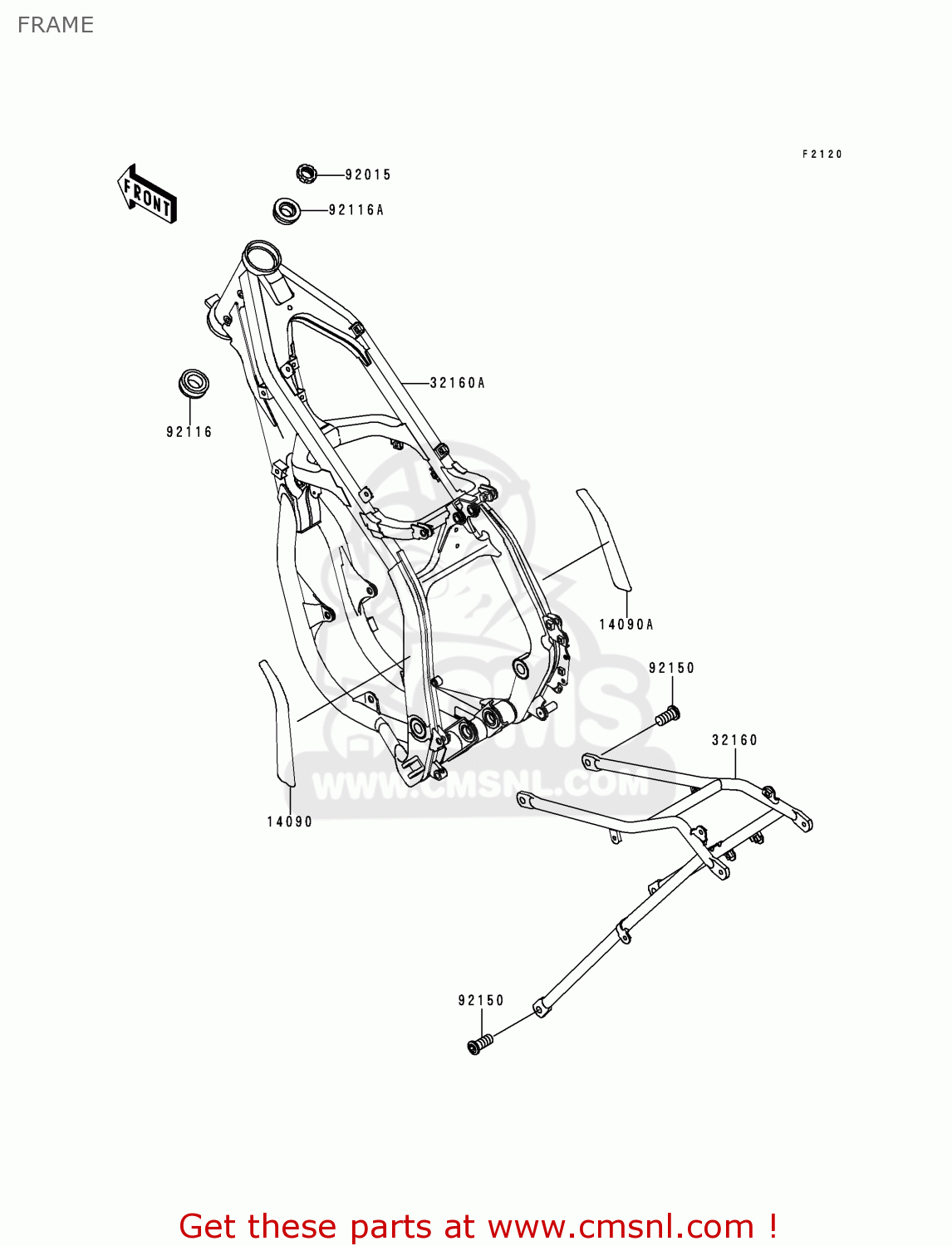

Frame diagram KX250-K4 1997 EUROPE FR AS

FRAME KX250-K4 1997 EUROPE FR AS

FRAME KX250-K4 1997 EUROPE FR AS

prices are in EUR

ref

part #

description

quantity

14090

140901474
ref: 14090

COVER,LH

€ 4.00

14090A

140901475
ref: 14090A

COVER,RH

€ 4.00

32160

321601397CC
ref: 32160

FRAME-COMP,RR,L.GREEN

€ 346.00

32160A

321601456CC
ref: 32160A

FRAME-COMP,FR,L.GREEN

€ 700.00

92015

920151861
ref: 92015

NUT,STEERING STEM,28M

€ 12.50

92116

921161069
ref: 92116

BEARING-ROLLER

€ 69.50

92116A

921161076
ref: 92116A

BEARING-ROLLER,HI-CAP

€ 57.50

92150

921501839
ref: 92150

BOLT

€ 1.50
