FRONT FORK
KX250-K2 1995 EUROPE AS

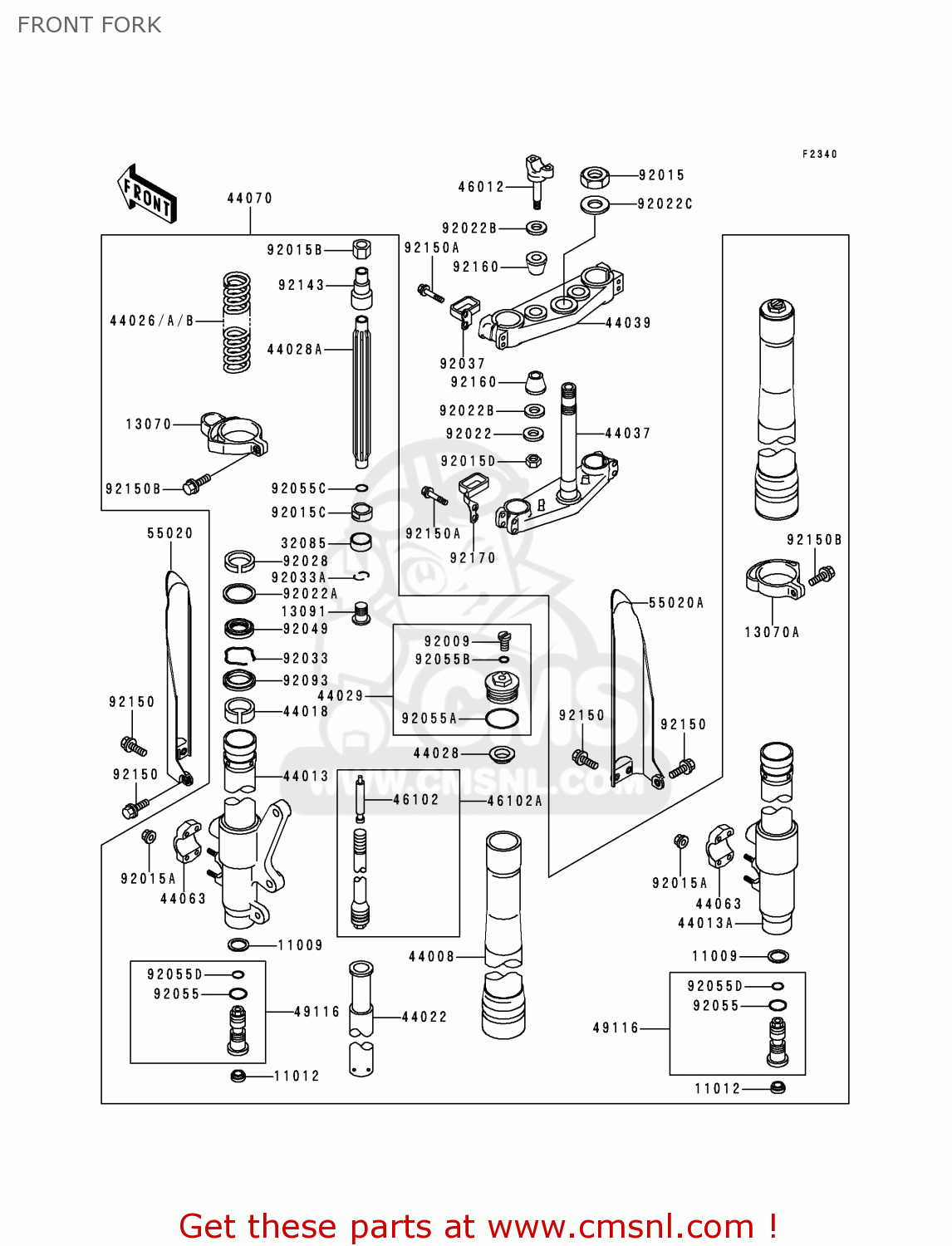

Front fork diagram KX250-K2 1995 EUROPE AS
FRONT FORK KX250-K2 1995 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
11009
110091791
ref: 11009
GASKET (NAS)
€ 2.50
11012
110121692
ref: 11012
CAP
€ 4.00
13070
130701277
ref: 13070
GUIDE,PROTECTOR,LH
€ 18.00
13070A
130701278
ref: 13070A
GUIDE,PROTECTOR,RH
€ 20.00
13091
130911651
ref: 13091
HOLDER
€ 18.00
32085
320851323
ref: 32085
STOPPER
€ 10.50
44008
44008103314
ref: 44008
PIPE-FORK OUTER,GOLD
€ 508.50
44013
440131401
ref: 44013
PIPE-FORK INNER,LH
€ 263.50
44013A
440131402
ref: 44013A
PIPE-FORK INNER,RH
€ 246.50
44018
440181056
ref: 44018
PISTON-FORK,INNER PIP
€ 19.00
44022
440221304
ref: 44022
CYLINDER-FORK
€ 218.50
44026
440261529
ref: 44026
SPRING-FRONT FORK,K=0
€ 61.00
44026A
440261532
ref: 44026A
SPRING-FRONT FORK,K=0
€ 64.50
44026B
440261534
ref: 44026B
SPRING-FRONT FORK,K=0
€ 61.00
44028
440281081
ref: 44028
GUIDE-FORK SPRING
€ 8.50
44028A
440281094
ref: 44028A
GUIDE-FORK SPRING
€ 30.00
44029
440291156
ref: 44029
SEAT-FORK SPRING
€ 83.50
44037
440371329
ref: 44037
HOLDER-FORK UNDER
€ 453.50
44039
440391225
ref: 44039
HOLDER-FORK UPPER
€ 195.00
44063
440631060
ref: 44063
HOLDER-FRONT AXLE
€ 40.00
44070
44070137514
ref: 44070
DAMPER-ASSY,FORK,GOLD
€ 2,753.50
46012
460121264
ref: 46012
HOLDER-HANDLE,LWR
€ 32.50
46102
461021340
ref: 46102
ROD,FORK,INNER
€ 17.00
46102A
461021380
ref: 46102A
ROD,FORK,ASSY
€ 430.50
49116
491161133
ref: 49116
VALVE-ASSY,FORK
€ 117.50
55020
550201492RZ
ref: 55020
GUARD,FORK,LH,WHITE
€ 44.50
55020A
550201493RZ
ref: 55020A
GUARD,FORK,RH,WHITE
€ 44.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151057
ref: 92015
NUT,24MM
€ 10.50
92015A
920151078
ref: 92015A
NUT,6M/M
€ 1.50
92015B
920151905
ref: 92015B
NUT
€ 13.50
92015C
920151945
ref: 92015C
NUT
€ 8.00
92015D
920151962
ref: 92015D
NUT
€ 2.00
92022
920221088
ref: 92022
WASHER,10.2X28X2
€ 3.00
92022A
920221299
ref: 92022A
WASHER
€ 5.50
92022B
920221737
ref: 92022B
WASHER
€ 3.50
92022C
92022250
ref: 92022C
WASHER,PLAIN
€ 3.00
92028
920281670
ref: 92028
BUSHING
€ 17.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92033A
920331271
ref: 92033A
RING-SNAP
€ 3.50
92037
920371627
ref: 92037
CLAMP
€ 19.50
92049
920491373
ref: 92049
SEAL-OIL
€ 19.00
92055
920551062
ref: 92055
RING-O,FORK TOP CAP
€ 3.00
92055A
920551333
ref: 92055A
RING-O,FORK,AIR TUBE
€ 3.00
92055B
920551441
ref: 92055B
RING-O
€ 2.50
92055C
920551442
ref: 92055C
RING-O
€ 4.50
92055D
920551513
ref: 92055D
RING-O,FORK VALVE
€ 2.00
92093
920931342
ref: 92093
SEAL,FORK OUTER TUBE
€ 12.50
92143
921431690
ref: 92143
COLLAR,FORK
€ 21.00
92150
921501435
ref: 92150
BOLT
€ 2.50
92150A
921501516
ref: 92150A
BOLT, FLANGED 8X40
€ 9.50
92150B
921501802
ref: 92150B
BOLT,5X16
€ 3.00
92160
921601544
ref: 92160
DAMPER,HANDLE HOLDER
€ 3.50
92170
921701088
ref: 92170
CLAMP
€ 19.50
