CARBURETOR
KX250-K2 1995 EUROPE AS

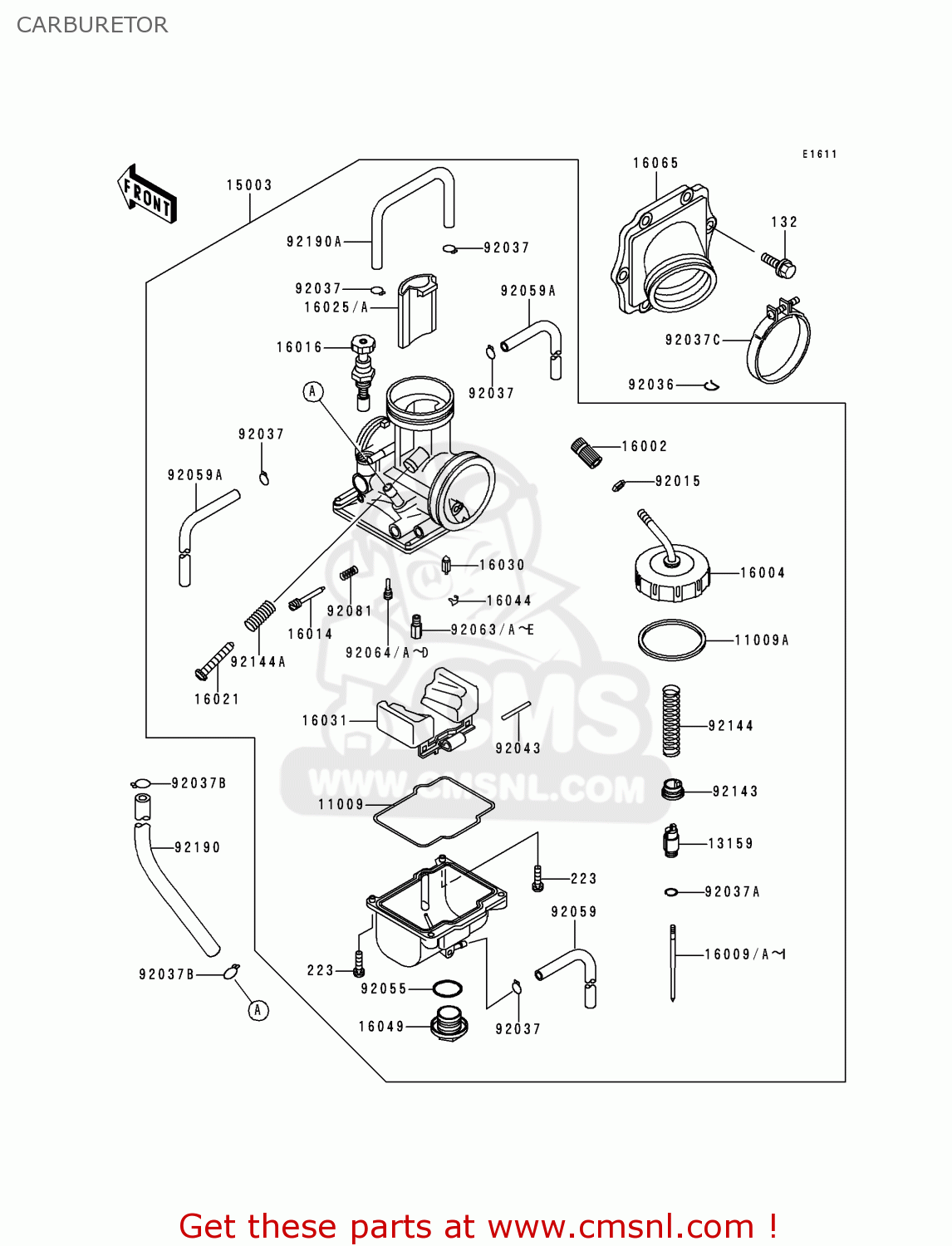

Carburetor diagram KX250-K2 1995 EUROPE AS
CARBURETOR KX250-K2 1995 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
11009
110091716
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
11009A
110091717
ref: 11009A
GASKET,CHAMBER CAP (NAS)
€ 8.00
13159
131591063
ref: 13159
CONNECTOR,THROTTLE CA
€ 13.50
15003
150031165
ref: 15003
CARBURETOR-ASSY
€ 403.50
16002
160021057
ref: 16002
ADJUSTER-CABLE
€ 13.00
16004
160041070
ref: 16004
CAP-CHAMBER
€ 50.50
16009
160091756
ref: 16009
NEEDLE-JET,NOZD
€ 19.00
16009A
160091757
ref: 16009A
NEEDLE-JET,N0ZE
€ 20.00
16009B
160091758
ref: 16009B
NEEDLE-JET,N0ZF
€ 20.00
16009C
160091759
ref: 16009C
NEEDLE-JET,N0ZG
€ 19.00
16009D
160091761
ref: 16009D
NEEDLE-JET,NIED
€ 21.00
16009E
160091762
ref: 16009E
NEEDLE-JET,N1EE
€ 19.00
16009F
160091763
ref: 16009F
NEEDLE-JET,N1EF
€ 19.00
16009G
160091764
ref: 16009G
NEEDLE-JET,N1EG
€ 19.00
16009H
160091814
ref: 16009H
NEEDLE-JET,N0ZC
€ 21.00
16009I
160091815
ref: 16009I
NEEDLE-JET,N1EC
€ 21.00
16014
160141058
ref: 16014
SCREW-PILOT AIR
€ 14.00
16016
160161085
ref: 16016
PLUNGER
€ 30.00
16021
160211161
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16025
160251194
ref: 16025
VALVE-THROTTLE,CA 7
€ 85.50
16025A
160251197
ref: 16025A
VALVE-THROTTLE
€ 89.50
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311067
ref: 16031
FLOAT
€ 43.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16049
160491051
ref: 16049
COVER-MAIN JET
€ 23.50
16065
160651292
ref: 16065
HOLDER-CARBURETOR
€ 75.50
92015
920151772
ref: 92015
NUT,CABLE ADJUST LOCK
€ 3.00
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
920371396
ref: 92037
CLAMP,TUBE
€ 3.50
92037A
920371401
ref: 92037A
CLAMP,JET NEEDLE
€ 2.50
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
92037C
920371486
ref: 92037C
CLAMP,55MM
€ 5.50
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551167
ref: 92055
RING-O,MAIN JET COVER
€ 6.50
92059
920591897
ref: 92059
TUBE,3.5X6.5X330
€ 7.50
92059A
920591898
ref: 92059A
TUBE,4X7X480
€ 10.00
92063
920631367
ref: 92063
JET-MAIN,#158
€ 10.00
92063A
920631368
ref: 92063A
JET-MAIN,#160
€ 10.00
92063B
920631369
ref: 92063B
JET-MAIN,#162
€ 9.50
92063C
920631370
ref: 92063C
JET-MAIN,#165
€ 9.50
92063D
920631371
ref: 92063D
JET-MAIN,#168
€ 10.00
92063E
920631373
ref: 92063E
JET-MAIN,#172
€ 10.50
92064
920641140
ref: 92064
JET-PILOT,#40
€ 11.50
92064A
920641141
ref: 92064A
JET-PILOT,#42
€ 11.50
92064B
920641142
ref: 92064B
JET-PILOT
€ 11.50
92064C
920641143
ref: 92064C
JET-PILOT,#48
€ 11.50
92064D
920641144
ref: 92064D
JET-PILOT
€ 11.00
92081
920811555
ref: 92081
SPRING,ADJUST SCREW
€ 3.50
92143
921431201
ref: 92143
COLLAR,THROTTLE VALVE
€ 15.00
92144
921441305
ref: 92144
SPRING,THROTTLE VALVE
€ 12.50
92144A
921441782
ref: 92144A
SPRING,THROTTLE STOP
€ 11.00
92190
921901528
ref: 92190
TUBE,5.3X10.5X150
€ 3.00
92190A
921901609
ref: 92190A
TUBE,4X7X580
€ 10.00
