SUSPENSION
KX250-J2 1993 KX250 EUROPE AS

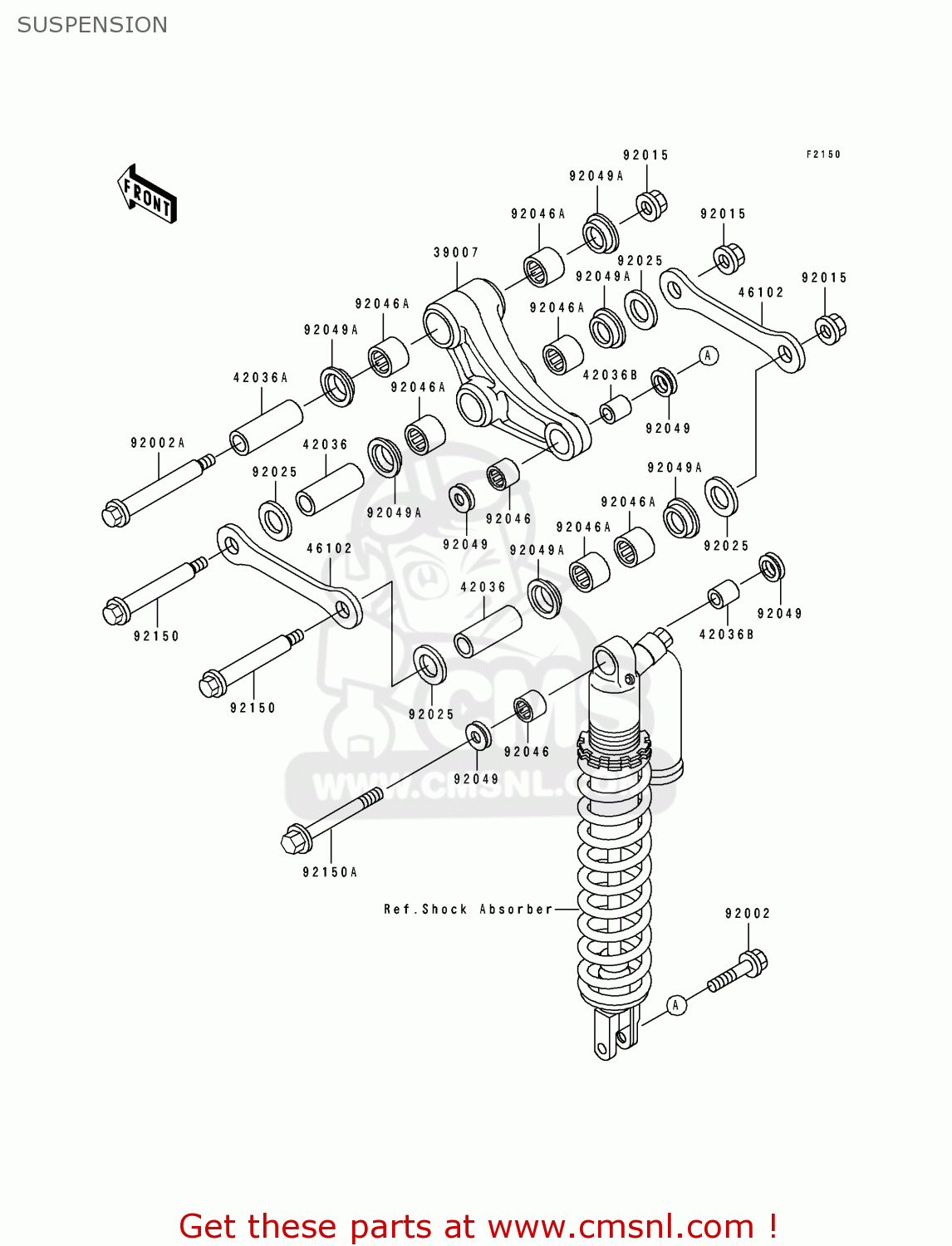

Suspension diagram KX250-J2 1993 KX250 EUROPE AS
SUSPENSION KX250-J2 1993 KX250 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
39007
390071213
ref: 39007
ARM-SUSP,UNI TRAK
€ 123.50
42036
420361245
ref: 42036
SLEEVE,15X22X57
€ 14.50
42036A
420361246
ref: 42036A
SLEEVE,15X22X63
€ 14.50
42036B
420361248
ref: 42036B
SLEEVE,10X16X19
€ 6.50
46102
461021293
ref: 46102
ROD,SUSPENSION
€ 42.00
92002
920021675
ref: 92002
BOLT,10X40
€ 8.50
92002A
920021890
ref: 92002A
BOLT,12MM
€ 14.50
92015
920151433
ref: 92015
NUT,12MM
€ 6.00
92025
920251135
ref: 92025
SHIM,15.3X27.5X0.6
€ 3.50
92046
920461192
ref: 92046
BEARING-NEEDLE,16BM22
€ 19.50
92046A
920461216
ref: 92046A
BEARING-NEEDLE,22BM28
€ 22.50
92049
920491330
ref: 92049
SEAL-OIL
€ 9.00
92049A
920491402
ref: 92049A
SEAL-OIL,MHA22 28 5.7
€ 7.50
92150
921501337
ref: 92150
BOLT
€ 18.00
92150A
921501571
ref: 92150A
BOLT,FLANGED,10X42
€ 7.00
