CYLINDER HEAD/CYLINDER
KX250-J2 1993 KX250 EUROPE AS

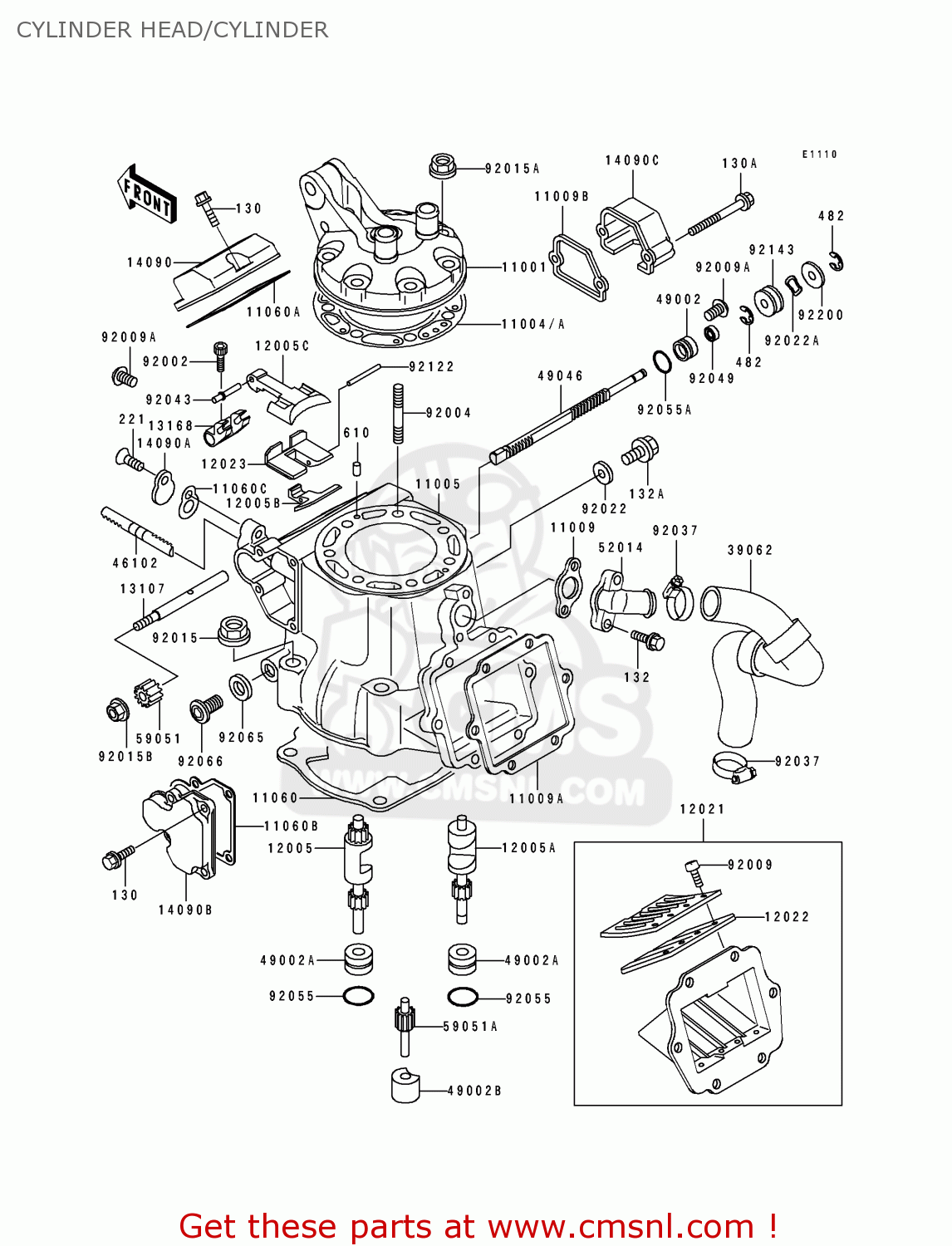

Cylinder head/cylinder diagram KX250-J2 1993 KX250 EUROPE AS
CYLINDER HEAD/CYLINDER KX250-J2 1993 KX250 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
11001
110011384
ref: 11001
HEAD-CYLINDER
€ 171.00
11004
110041240
ref: 11004
GASKET-HEAD,T=0.26 (NAS)
€ 28.00
11004A
110041241
ref: 11004A
GASKET-HEAD,T=0.46 (NAS)
€ 28.00
11005
110051686
ref: 11005
CYLINDER-ENGINE
€ 794.50
11009
110091935
ref: 11009
GASKET,ELBOW (NAS)
€ 3.00
11009A
110091950
ref: 11009A
GASKET,REED VALVE (NAS)
€ 7.50
11009B
110091960
ref: 11009B
GASKET,GOVERNOR COVER (NAS)
€ 3.50
11060
110601147
ref: 11060
GASKET,CYLINDER BASE (NAS)
€ 7.00
11060A
110601289
ref: 11060A
GASKET,VALVE COVER (NAS)
€ 4.50
11060B
110601290
ref: 11060B
GASKET,RESONATOR (NAS)
€ 4.00
11060C
110601346
ref: 11060C
GASKET,GOVERNOR ROD (NAS)
€ 2.00
12005
120051182
ref: 12005
VALVE-EXHAUST,LH
€ 40.50
12005A
120051183
ref: 12005A
VALVE-EXHAUST,RH
€ 38.50
12005B
120051184
ref: 12005B
VALVE-EXHAUST,MAIN
€ 37.50
12005C
120051185
ref: 12005C
VALVE-EXHAUST,MAIN
€ 52.00
12021
120211092
ref: 12021
VALVE-ASSY-REED
€ 159.00
12022
120221069
ref: 12022
VALVE-REED
€ 43.50
12023
120231066
ref: 12023
HOLDER-VALVE,MAIN
€ 66.50
13107
131071284
ref: 13107
SHAFT,MAIN
€ 12.50
13168
131681499
ref: 13168
LEVER,MAIN VALVE
€ 74.50
14090
140901219
ref: 14090
COVER,VALVE COVER
€ 23.00
14090A
140901220
ref: 14090A
COVER,ROD
€ 5.50
14090B
140901226
ref: 14090B
COVER,RESONATOR
€ 29.00
14090C
140901249
ref: 14090C
COVER,GOVERNOR
€ 8.00
39062
390621478
ref: 39062
HOSE-COOLING,PUMP-CYL
€ 25.00
46102
461021332
ref: 46102
ROD
€ 37.00
49002
490021087
ref: 49002
GUIDE-VALVE
€ 11.50
49002A
490021117
ref: 49002A
GUIDE-VALVE
€ 10.00
49002B
490021118
ref: 49002B
GUIDE-VALVE
€ 10.00
49046
490461072
ref: 49046
ROD-GOVERNOR
€ 61.50
52014
520141077
ref: 52014
ELBOW
€ 25.00
59051
590511252
ref: 59051
GEAR-SPUR,MAIN VALVE
€ 19.00
59051A
590511275
ref: 59051A
GEAR-SPUR,IDLE
€ 22.50
92002
920021403
ref: 92002
BOLT,SOCKET,4X8
€ 2.00
92004
920041060
ref: 92004
STUD,8X28.5
€ 3.00
92009
920091371
ref: 92009
SCREW,3X6
€ 2.50
92009A
920091502
ref: 92009A
SCREW
€ 2.50
92015
92015077
ref: 92015
NUT, 10MM
€ 3.00
92015A
920151143
ref: 92015A
NUT,8MM
€ 0.50
130
130G0514
ref: 130
BOLT-FLANGED
€ 2.50
130A
130G0535
ref: 130A
BOLT-FLANGED
€ 2.50
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
132A
132G0810
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
221
221B0612
ref: 221
SCREW-CNTSNK HD,6X12
€ 1.50
482
482J4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
92015B
920151572
ref: 92015B
NUT,6MM
€ 2.50
92022
920221488
ref: 92022
WASHER,8.2X14X1
€ 3.00
92022A
920221978
ref: 92022A
WASHER,WAVE
€ 4.00
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92043
920431470
ref: 92043
PIN,MAIN VALVE
€ 3.00
92049
920491206
ref: 92049
SEAL-OIL,RSO-5.5 11 4
€ 7.50
92055
92055022
ref: 92055
'O' RING
€ 4.00
92055A
920551387
ref: 92055A
RING-O,ID=11.5
€ 2.50
92065
92065073
ref: 92065
GASKET,12.5X18X1,DRAI (NAS)
€ 2.50
92066
920661222
ref: 92066
PLUG,12X10
€ 8.00
92122
921221187
ref: 92122
ROLLER,3X31.8
€ 2.50
92143
921431056
ref: 92143
COLLAR
€ 6.50
92200
922001129
ref: 92200
WASHER,5.6X18X1.2
€ 2.00
