ENGINE COVER(S)
KX125-M3 KX125 2005 USA CANADA

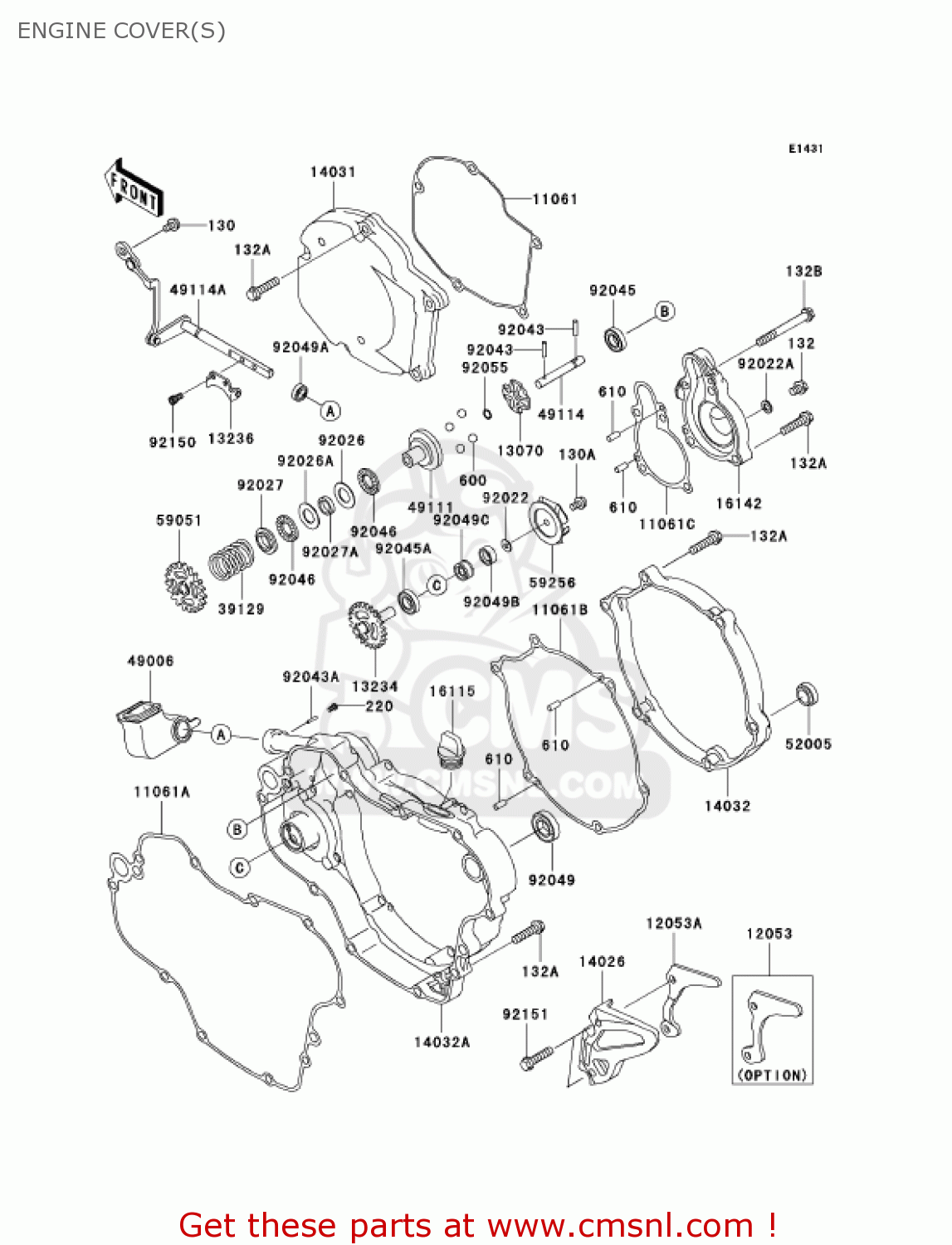

Engine cover(s) diagram KX125-M3 KX125 2005 USA CANADA
ENGINE COVER(S) KX125-M3 KX125 2005 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11061
110610038
ref: 11061
GASKET,GENERATOR COVE (NAS)
€ 12.50
11061A
110611134
ref: 11061A
GASKET,CLUTCH COVER,I (NAS)
€ 22.00
11061B
110611135
ref: 11061B
GASKET,CLUTCH COVER,O (NAS)
€ 16.00
11061C
110611150
ref: 11061C
GASKET (NAS)
€ 5.00
12053
120531465
ref: 12053
(OPTION)
GUIDE-CHAIN,12T
€ 11.50
12053A
120531482
ref: 12053A
GUIDE-CHAIN,13T
€ 11.50
13070
130701122
ref: 13070
GUIDE
€ 45.50
13234
132341117
ref: 13234
SHAFT-COMP
€ 55.50
13236
132361266
ref: 13236
LEVER-COMP,GOVERNOR
€ 8.00
14026
140260013
ref: 14026
COVER-CHAIN
€ 18.00
14031
140310027
ref: 14031
COVER-GENERATOR
€ 48.50
14032
140320045
ref: 14032
COVER-CLUTCH,OUTER
€ 93.50
14032A
140321532
ref: 14032A
COVER-CLUTCH,IN
€ 196.50
16115
16115018
ref: 16115
PLUG,OIL FILLER
€ 7.00
16142
161421173
ref: 16142
COVER-PUMP
€ 107.00
39129
391291035
ref: 39129
SPRING-GOVERNOR
€ 5.00
49006
490061361
ref: 49006
BOOT
€ 13.50
49111
491111051
ref: 49111
HOLDER-GOVERNOR WEIGH
€ 44.00
49114
491141058
ref: 49114
SHAFT-GOVERNOR
€ 19.50
49114A
491141104
ref: 49114A
SHAFT-GOVERNOR
€ 17.50
52005
520051055
ref: 52005
GAUGE,OIL LEVEL
€ 10.50
59051
590511408
ref: 59051
GEAR-SPUR
€ 39.50
59256
592561065
ref: 59256
IMPELLER
€ 25.50
92022
920221380
ref: 92022
WASHER,5.2X13X1
€ 2.50
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92026
920261238
ref: 92026
SPACER,15X28X1
€ 5.50
92026A
920261501
ref: 92026A
SPACER,T=2.0
€ 4.50
92027
920271838
ref: 92027
COLLAR
€ 17.50
92027A
920271839
ref: 92027A
COLLAR,15.2X17X4
€ 8.50
92043
920431256
ref: 92043
PIN,3X12.8
€ 3.00
92043A
920431293
ref: 92043A
PIN,2X9.8
€ 4.00
92045
920451123
ref: 92045
BEARING-BALL,#628
€ 23.50
92045A
920451305
ref: 92045A
BEARING-BALL,608MC3
€ 11.50
92046
920461252
ref: 92046
BEARING-NEEDLE
€ 12.50
92049
92049002
ref: 92049
OIL SEAL SB16244
€ 6.00
92049A
920491207
ref: 92049A
SEAL-OIL,SDO8144
€ 6.50
92049B
920491359
ref: 92049B
SEAL-OIL
€ 6.50
92049C
920491366
ref: 92049C
SEAL-OIL,MHSD8X18X10J
€ 12.50
92055
920551343
ref: 92055
RING-O,5.5X1.5
€ 3.00
130
130G0508
ref: 130
BOLT-FLANGED
€ 0.50
130A
130P0514
ref: 130A
BOLT-FLANGED
€ 2.50
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132G0655
ref: 132B
BOLT-FLANGED-SMALL
€ 2.00
220
220B0306
ref: 220
SCREW-PAN-CROS
€ 0.50
600
600A1000
ref: 600
BALL-STEEL,5/16
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
92150
921501888
ref: 92150
BOLT,SOCKET,4X8
€ 2.00
92151
921511930
ref: 92151
BOLT,6X25
€ 2.00
