CYLINDER HEAD/CYLINDER

KX125-M3 KX125 2005 USA CANADA

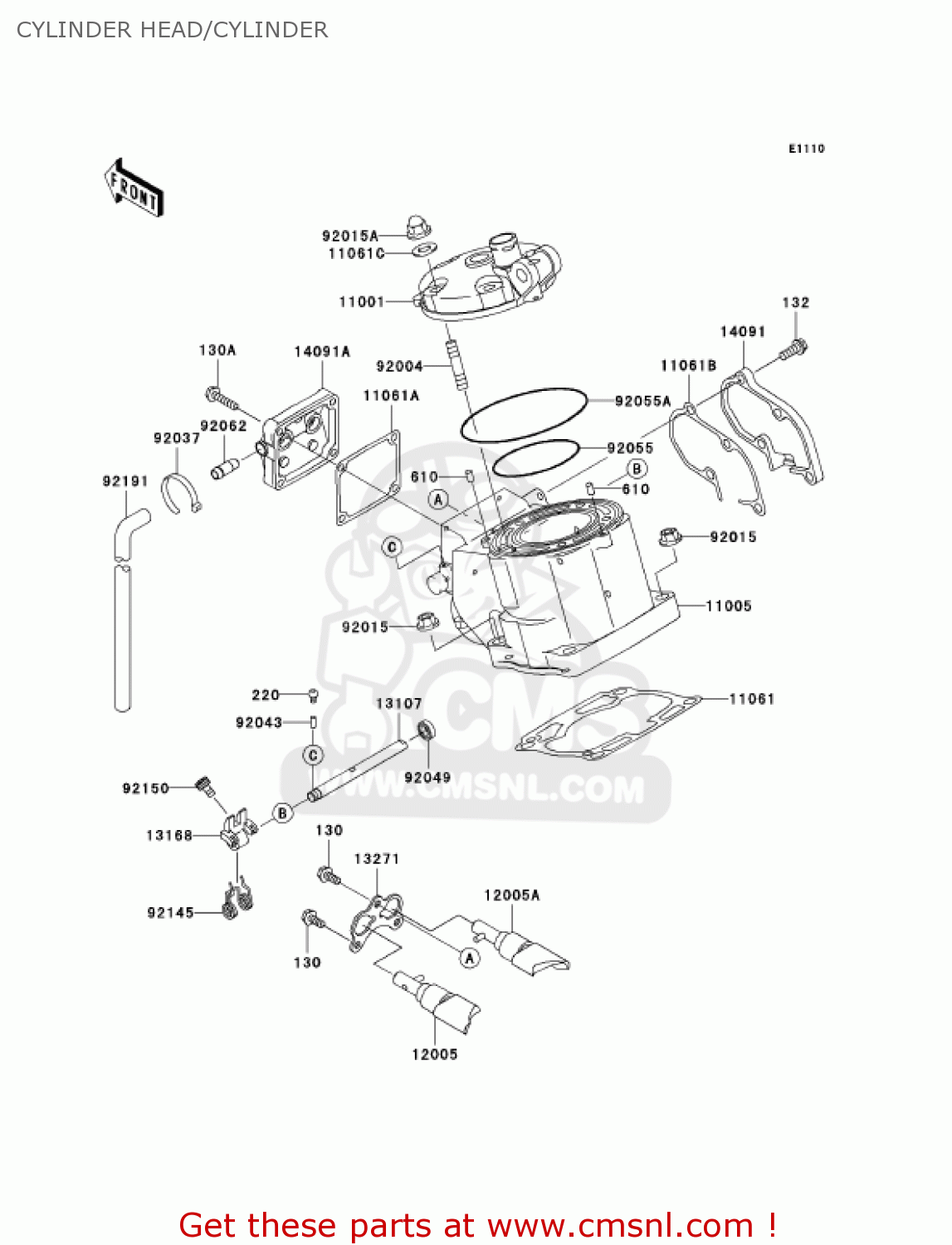

Cylinder head/cylinder diagram KX125-M3 KX125 2005 USA CANADA

CYLINDER HEAD/CYLINDER KX125-M3 KX125 2005 USA CANADA
CYLINDER HEAD/CYLINDER KX125-M3 KX125 2005 USA CANADA
CYLINDER HEAD/CYLINDER KX125-M3 KX125 2005 USA CANADA
prices are in EUR
ref
part #
description
quantity
130
130G0512
ref: 130
BOLT-FLANGED
130G0512
€ 1.00
130A
130G0522
ref: 130A
BOLT-FLANGED,CENTER C
€ 1.00
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
132G0616
€ 1.00
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
220B0406
€ 2.50
610
610A0408
ref: 610
ROLLER,4X8
610A0408
€ 2.50
11001
110010013
ref: 11001
HEAD-CYLINDER
110010013
€ 110.50
11005
110050026
ref: 11005
CYLINDER-ENGINE
€ 621.50
11061
110610039
ref: 11061
GASKET,T=0.37 (NAS)
110610039
€ 10.50
11061A
110611131
ref: 11061A
GASKET,CENTER COVER (NAS)
110611131
€ 3.50
11061B
110611132
ref: 11061B
GASKET,RIGHT COVER (NAS)
110611132
€ 5.00
11061C
110611133
ref: 11061C
GASKET,HEAD (NAS)
110611133
€ 1.50
12005
120050012
ref: 12005
VALVE-EXHAUST,LH
120050012
€ 131.50
12005A
120050014
ref: 12005A
VALVE-EXHAUST,RH
120050014
€ 127.50
13107
131071500
ref: 13107
SHAFT
131071500
€ 38.00
13168
131681747
ref: 13168
LEVER
131681747
€ 35.50
13271
132711823
ref: 13271
PLATE
132711823
€ 5.00
14091
140910077
ref: 14091
COVER,RH
140910077
€ 11.50
14091A
140910173
ref: 14091A
COVER,CNT
140910173
€ 14.50
92004
920041110
ref: 92004
STUD,8X20
920041110
€ 8.00
92015
920151143
ref: 92015
NUT,8MM
920151143
€ 0.50
92015A
920151151
ref: 92015A
NUT,CAP,8MM
920151151
€ 3.00
92037
920371173
ref: 92037
CLAMP,SPARK PLUG CAP
920371173
€ 1.00
92043
920430033
ref: 92043
PIN,3X8.5
920430033
€ 1.00
92049
920491238
ref: 92049
SEAL-OIL,SD088144
920491238
€ 8.50
92055
920551678
ref: 92055
RING-O,62.5X1.9
920551678
€ 6.00
92055A
920551679
ref: 92055A
RING-O,OUT
920551679
€ 4.00
92062
920623711
ref: 92062
NOZZLE
920623711
€ 14.00
92145
921451491
ref: 92145
SPRING
921451491
€ 3.00
92150
921501888
ref: 92150
BOLT,SOCKET,4X8
921501888
€ 2.00
92191
921911692
ref: 92191
TUBE,5.8X10.8X225
921911692
€ 6.00
