REAR HUB

KX125-L4 KX125 2002 USA CANADA

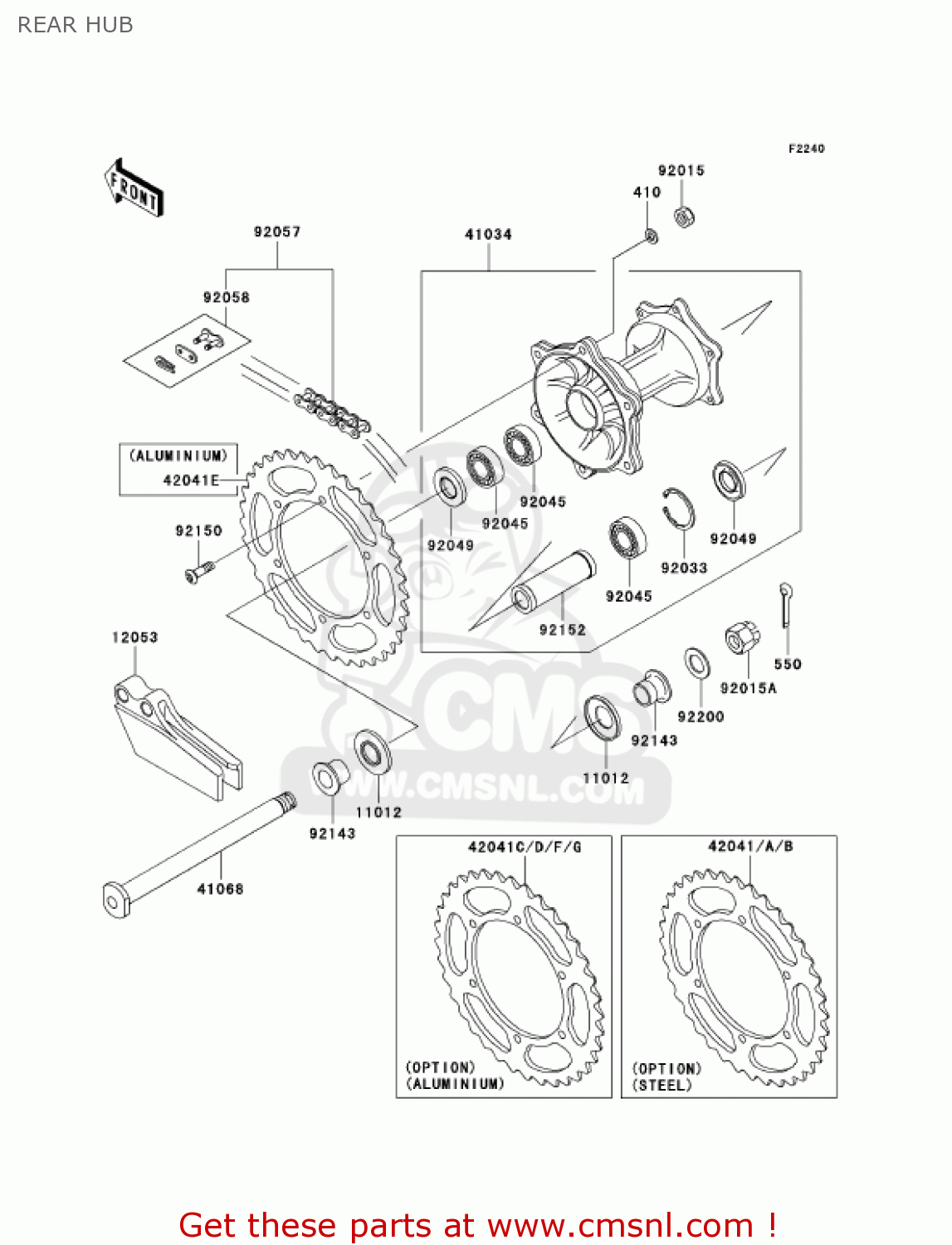

Rear hub diagram KX125-L4 KX125 2002 USA CANADA

REAR HUB KX125-L4 KX125 2002 USA CANADA
REAR HUB KX125-L4 KX125 2002 USA CANADA
REAR HUB KX125-L4 KX125 2002 USA CANADA
prices are in EUR
ref
part #
description
quantity
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
550
550D3025
ref: 550
PIN-COTTER,3.0X25
550D3025
€ 0.50
11012
110121581
ref: 11012
CAP,AXLE
110121581
€ 4.00
12053
120531376
ref: 12053
GUIDE-CHAIN,DRIVE,RR
120531376
€ 56.50
41034
410341301
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 345.00
41068
410681343
ref: 41068
AXLE,RR
410681343
€ 74.00
42041
420411383
ref: 42041
(OPTION)
SPROCKET, HUB, 48T
420411383
€ 38.50
42041A
420411384
ref: 42041A
(OPTION)
SPROCKET-HUB,49T
420411384
€ 38.50
42041B
420411408
ref: 42041B
(OPTION)
SPROCKET-HUB,50T
420411408
€ 37.00
42041C
420411447
ref: 42041C
(OPTION)
SPROCKET-HUB,47T,AL
420411447
€ 80.00
42041D
420411448
ref: 42041D
(OPTION)
SPROCKET-HUB,48T,AL
420411448
€ 80.00
42041E
420411449
ref: 42041E
SPROCKET-HUB,49T,AL
420411449
€ 80.00
42041F
420411450
ref: 42041F
(OPTION)
SPROCKET-HUB,50T,AL
420411450
€ 80.00
42041G
420411451
ref: 42041G
(OPTION)
SPROCKET-HUB,51T,AL
420411451
€ 80.00
92015
920151432
ref: 92015
NUT,8MM
920151432
€ 4.50
92015A
920151885
ref: 92015A
NUT,CASTLE,18MM
920151885
€ 7.50
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92045
920451239
ref: 92045
BEARING-BALL,6004X8JR
920451239
€ 30.00
92049
920491314
ref: 92049
SEAL-OIL,MHSA25 42 6
920491314
€ 9.00
92057
920571458
ref: 92057
CHAIN,DRIVE,DID520DMA
€ 68.50
92058
920581074
ref: 92058
JOINT-CHAIN,DRIVE
920581074
€ 6.50
92143
921431905
ref: 92143
COLLAR,RR AXLE,L=20
921431905
€ 25.00
92150
921501978
ref: 92150
BOLT
921501978
€ 5.50
92152
921521144
ref: 92152
COLLAR,RR BRAKE DRUM,
€ 15.50
92200
922001149
ref: 92200
WASHER,18.5X32X2.3
922001149
€ 3.00
