HANDLEBAR

KX125-L4 KX125 2002 USA CANADA

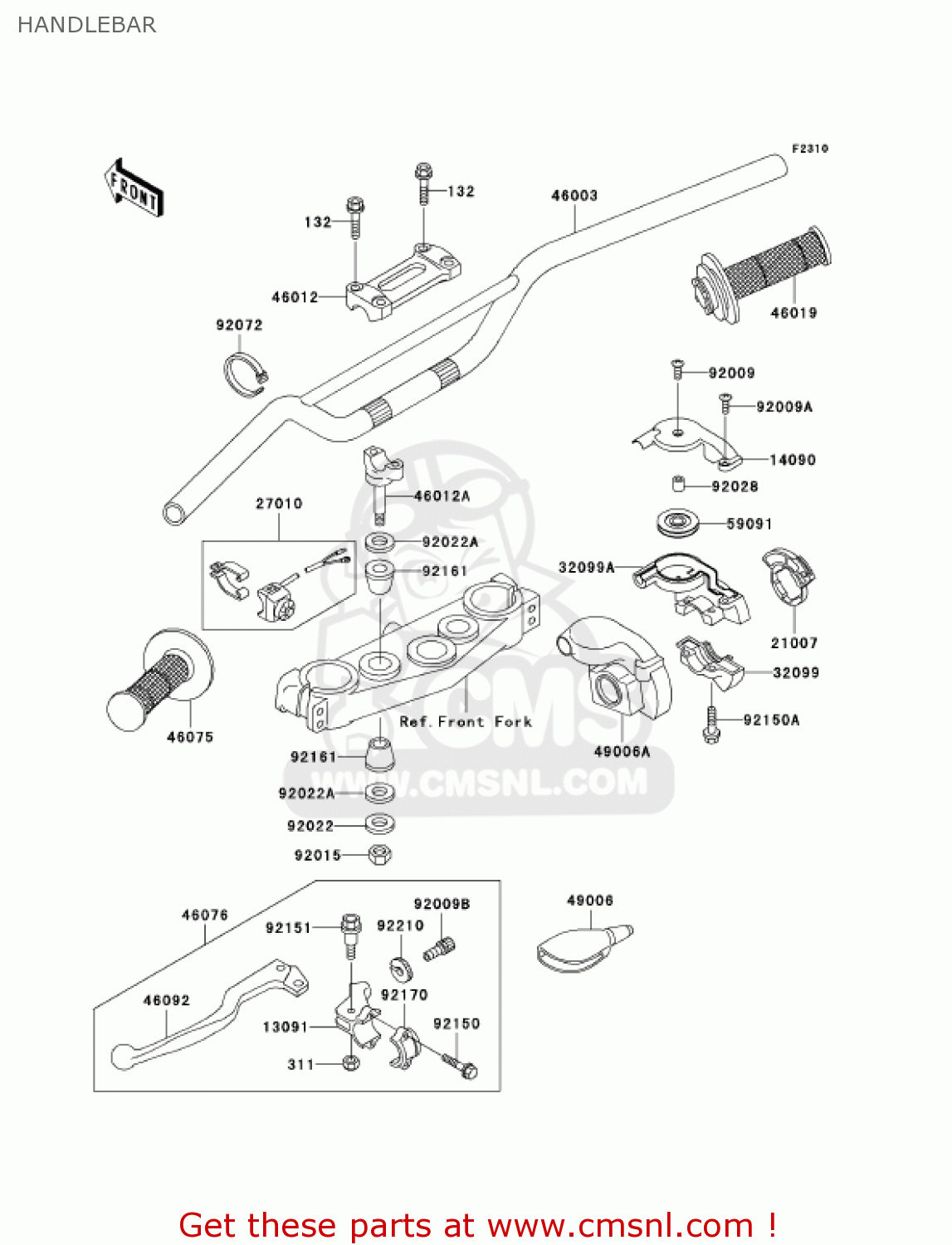

Handlebar diagram KX125-L4 KX125 2002 USA CANADA

HANDLEBAR KX125-L4 KX125 2002 USA CANADA
HANDLEBAR KX125-L4 KX125 2002 USA CANADA
HANDLEBAR KX125-L4 KX125 2002 USA CANADA
prices are in EUR
ref
part #
description
quantity
132
132G0830
ref: 132
BOLT-FLANGED-SMALL
132G0830
€ 2.50
311
311B0500
ref: 311
NUT-HEX
311B0500
€ 0.50
13091
130911728
ref: 13091
HOLDER,CLUTCH LEVER
130911728
€ 38.50
14090
140901161
ref: 14090
COVER,THROTTLE CASE,U
140901161
€ 7.00
21007
210071242
ref: 21007
ROTOR,THROTTLE
210071242
€ 8.50
27010
270101350
ref: 27010
SWITCH,ENGINE STOP
270101350
€ 38.00
32099
320991138
ref: 32099
CASE,THROTTLE,LWR
320991138
€ 19.50
32099A
320991168
ref: 32099A
CASE,THROTTLE,UPP
320991168
€ 41.00
46003
460031567CE
ref: 46003
HANDLE,SILVER
€ 68.00
46012
460121190
ref: 46012
HOLDER-HANDLE,UPP
460121190
€ 47.00
46012A
460121264
ref: 46012A
HOLDER-HANDLE,LWR
460121264
€ 32.50
46019
460191111
ref: 46019
GRIP-ASSY,THROTTLE
460191111
€ 22.00
46075
460751179
ref: 46075
GRIP,LH
460751179
€ 12.00
46076
460761241
ref: 46076
LEVER-ASSY-GRIP,CLUTC
460761241
€ 52.00
46092
460921165
ref: 46092
LEVER-GRIP,CLUTCH
460921165
€ 10.00
49006
490061017
ref: 49006
BOOTS,LEVER HOLDER
490061017
€ 13.00
49006A
490061301
ref: 49006A
BOOT,THROTTLE
490061301
€ 12.00
59091
590911102
ref: 59091
PULLEY,THROTTLE
590911102
€ 7.00
92009
920091674
ref: 92009
SCREW
920091674
€ 3.00
92009A
920091675
ref: 92009A
SCREW
920091675
€ 2.00
92009B
920091970
ref: 92009B
SCREW,CABLE ADJUST,8M
920091970
€ 13.00
92015
920151962
ref: 92015
NUT
920151962
€ 2.00
92022
920221088
ref: 92022
WASHER,10.2X28X2
920221088
€ 3.00
92022A
920221737
ref: 92022A
WASHER
920221737
€ 3.50
92028
920281658
ref: 92028
BUSHING,THROTTLE CASE
920281658
€ 4.00
92072
92072030
ref: 92072
BAND,SHORT
92072030
€ 3.00
92150
921501474
ref: 92150
BOLT,LEVER HOLDER
921501474
€ 3.00
92150A
921501559
ref: 92150A
BOLT
921501559
€ 3.00
92151
921511103
ref: 92151
BOLT,LEVER SET,5MM
921511103
€ 4.50
92161
921611195
ref: 92161
DAMPER
921611195
€ 3.50
92170
921701226
ref: 92170
CLAMP
921701226
€ 18.50
92210
922101307
ref: 92210
NUT,CABLE ADJUST LOCK
€ 7.50
