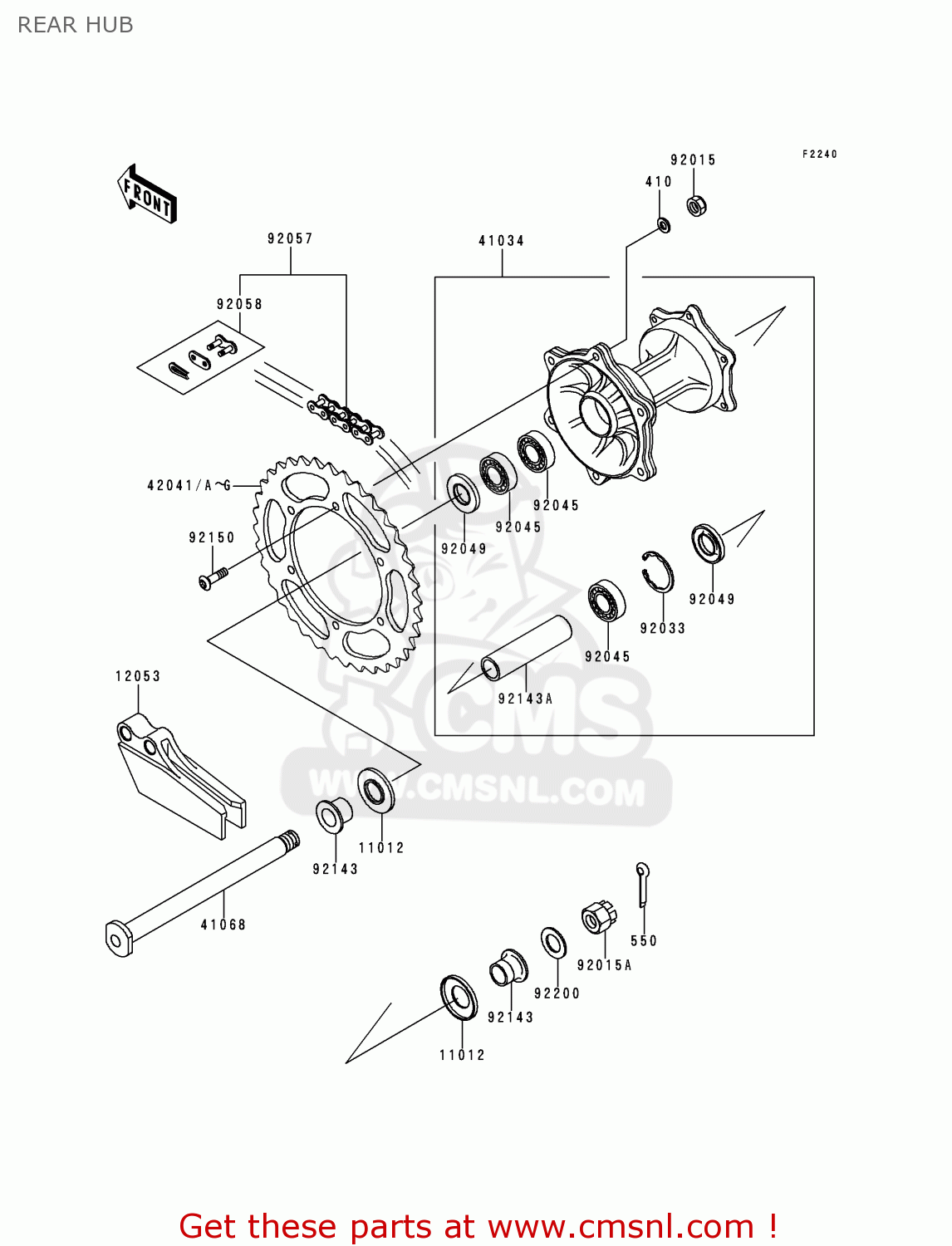

REAR HUB

ref

part #

description

quantity

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

11012

110121581
ref: 11012

CAP,AXLE

€ 4.00

12053

120531376
ref: 12053

GUIDE-CHAIN,DRIVE,RR

€ 56.50

41034

410341270
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 587.50

41068

410681343
ref: 41068

AXLE,RR

€ 74.00

42041

420411382
ref: 42041

SPROCKET-HUB,47T

€ 38.50

42041A

420411383
ref: 42041A

SPROCKET, HUB, 48T

€ 38.50

42041B

420411384
ref: 42041B

SPROCKET-HUB,49T

€ 38.50

42041C

420411447
ref: 42041C

SPROCKET-HUB,47T,AL

€ 80.00

42041D

420411448
ref: 42041D

SPROCKET-HUB,48T,AL

€ 80.00

42041E

420411449
ref: 42041E

SPROCKET-HUB,49T,AL

€ 80.00

42041F

420411450
ref: 42041F

SPROCKET-HUB,50T,AL

€ 80.00

42041G

420411501
ref: 42041G

SPROCKET-HUB,46T,AL

€ 74.50

92015

920151432
ref: 92015

NUT,8MM

€ 4.50

92015A

920151885
ref: 92015A

NUT,CASTLE,18MM

€ 7.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92045

920451239
ref: 92045

BEARING-BALL,6004X8JR

€ 30.00

92049

920491314
ref: 92049

SEAL-OIL,MHSA25 42 6

€ 9.00

92057

920571439
ref: 92057

CHAIN,DRIVE,DID520DMA

€ 52.50

92058

920581074
ref: 92058

JOINT-CHAIN,DRIVE

€ 6.50

92143

921431905
ref: 92143

COLLAR,RR AXLE,L=20

€ 25.00

92143A

921431906
ref: 92143A

COLLAR,RR BRAKE DRUM,

€ 11.50

92150

921501978
ref: 92150

BOLT

€ 5.50

92200

922001149
ref: 92200

WASHER,18.5X32X2.3

€ 3.00
