CYLINDER HEAD/CYLINDER
KX125-K5 1998 EUROPE FR AS

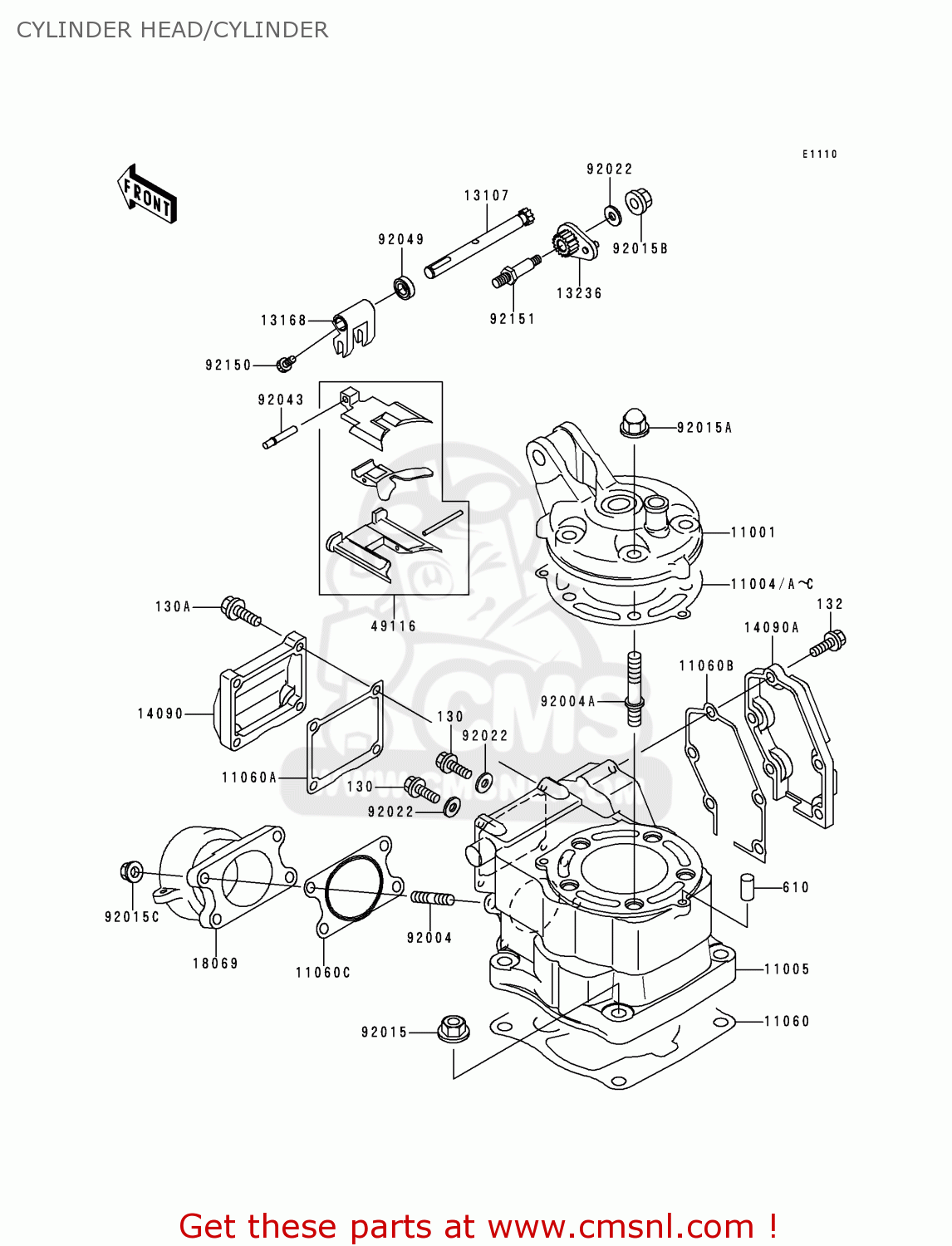

Cylinder head/cylinder diagram KX125-K5 1998 EUROPE FR AS
CYLINDER HEAD/CYLINDER KX125-K5 1998 EUROPE FR AS
×
prices are in EUR
ref
part #
description
quantity
130
130G0508
ref: 130
BOLT-FLANGED
€ 0.50
130A
130G0520
ref: 130A
BOLT-FLANGED
€ 1.00
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
11001
110011435
ref: 11001
HEAD-CYLINDER
€ 148.00
11004
110041252
ref: 11004
EUFR
GASKET-HEAD,T=0.46 (NAS)
€ 24.00
11004A
110041252
ref: 11004A
AS
GASKET-HEAD,T=0.46 (NAS)
€ 24.00
11004B
110041300
ref: 11004B
AS
GASKET-HEAD,T=0.26 (NAS)
€ 19.50
11004C
110041300
ref: 11004C
EUFR
GASKET-HEAD,T=0.26 (NAS)
€ 19.50
11005
110051852
ref: 11005
CYLINDER-ENGINE
€ 502.50
11060
110601769
ref: 11060
GASKET,CYLINDER BASE (NAS)
€ 12.50
11060A
110601788
ref: 11060A
GASKET,CENTER COVER (NAS)
€ 2.50
11060B
110601789
ref: 11060B
GASKET,RH COVER (NAS)
€ 5.50
11060C
110601790
ref: 11060C
GASKET (NAS)
€ 8.50
13107
131071374
ref: 13107
SHAFT
€ 27.50
13168
131681499
ref: 13168
LEVER,MAIN VALVE
€ 74.50
13236
132361308
ref: 13236
LEVER-COMP
€ 23.50
14090
140901828
ref: 14090
COVER,CENTER
€ 9.50
14090A
140901829
ref: 14090A
COVER,RH
€ 11.00
18069
180691140
ref: 18069
HOLDER-EXHAUST PIPE
€ 31.50
49116
491161156
ref: 49116
VALVE-ASSY
€ 129.50
92004
920041154
ref: 92004
STUD,6X18
€ 3.50
92004A
920041236
ref: 92004A
STUD,8X28
€ 3.00
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151151
ref: 92015A
NUT,CAP,8MM
€ 3.00
92015B
920151221
ref: 92015B
NUT,LOCK,5MM
€ 4.00
92015C
920151367
ref: 92015C
NUT,FLANGED,6MM
€ 0.50
92022
920221380
ref: 92022
WASHER,5.2X13X1
€ 2.50
92043
920431470
ref: 92043
PIN,MAIN VALVE
€ 3.00
92049
920491238
ref: 92049
SEAL-OIL,SD088144
€ 8.50
92150
921501888
ref: 92150
BOLT,SOCKET,4X8
€ 2.00
92151
921511257
ref: 92151
BOLT
€ 4.00
