ENGINE COVER
KX125-J2 1993 USA CANADA

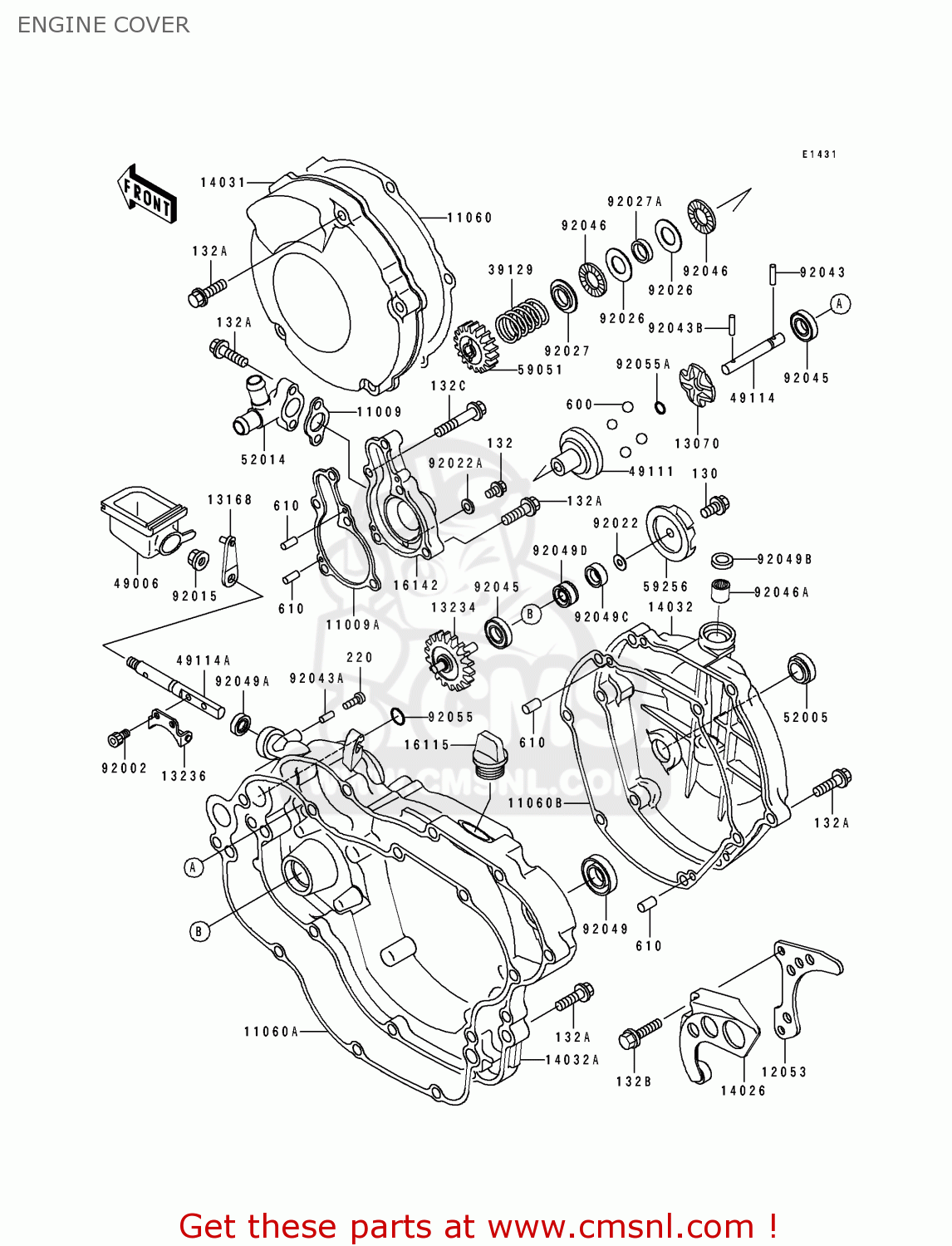

Engine cover diagram KX125-J2 1993 USA CANADA
ENGINE COVER KX125-J2 1993 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091935
ref: 11009
GASKET,ELBOW (NAS)
€ 3.00
11009A
110091936
ref: 11009A
GASKET,PUMP COVER (NAS)
€ 5.00
11060
110601189
ref: 11060
GASKET (NAS)
€ 13.00
11060A
110601190
ref: 11060A
GASKET (NAS)
€ 18.50
11060B
110601191
ref: 11060B
GASKET,CLUTCH COVER (NAS)
€ 8.00
12053
120531288
ref: 12053
GUIDE-CHAIN
€ 8.00
13070
130701122
ref: 13070
GUIDE
€ 45.50
13168
131681525
ref: 13168
LEVER,GOVERNOR
€ 7.00
13234
132341097
ref: 13234
SHAFT-COMP,PUMP
€ 45.50
13236
132361250
ref: 13236
LEVER-COMP,GOVERNOR
€ 7.00
14026
140261159
ref: 14026
COVER-CHAIN
€ 17.00
14031
140311262
ref: 14031
COVER-GENERATOR
€ 45.50
14032
140321315
ref: 14032
COVER-CLUTCH,OUTSIDE
€ 64.00
14032A
140321345
ref: 14032A
COVER-CLUTCH,INSIDE
€ 190.50
16115
16115018
ref: 16115
PLUG,OIL FILLER
€ 7.00
16142
161421084
ref: 16142
COVER-PUMP
€ 104.00
39129
391291007
ref: 39129
SPRING-GOVERNOR
€ 3.50
49006
490061269
ref: 49006
BOOT
€ 7.00
49111
491111051
ref: 49111
HOLDER-GOVERNOR WEIGH
€ 44.00
49114
491141058
ref: 49114
SHAFT-GOVERNOR
€ 19.50
49114A
491141073
ref: 49114A
SHAFT-GOVERNOR
€ 16.50
52005
520051055
ref: 52005
GAUGE,OIL LEVEL
€ 10.50
52014
520141074
ref: 52014
ELBOW
€ 17.00
59051
590511262
ref: 59051
GEAR-SPUR,GOVERNOR
€ 25.00
59256
592561065
ref: 59256
IMPELLER
€ 25.50
92002
920021403
ref: 92002
BOLT,SOCKET,4X8
€ 2.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
920221380
ref: 92022
WASHER,5.2X13X1
€ 2.50
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92026
920261238
ref: 92026
SPACER,15X28X1
€ 5.50
92027
920271838
ref: 92027
COLLAR
€ 17.50
92027A
920271839
ref: 92027A
COLLAR,15.2X17X4
€ 8.50
92043
920431256
ref: 92043
PIN,3X12.8
€ 3.00
92043A
920431293
ref: 92043A
PIN,2X9.8
€ 4.00
92043B
920431319
ref: 92043B
PIN,3X19.8
€ 2.50
92045
920451212
ref: 92045
BEARING-BALL
€ 11.50
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
€ 14.00
92046A
920461176
ref: 92046A
BEARING-NEEDLE
€ 15.50
92049
92049002
ref: 92049
OIL SEAL SB16244
€ 6.00
92049A
920491207
ref: 92049A
SEAL-OIL,SDO8144
€ 6.50
130
130P0514
ref: 130
BOLT-FLANGED
€ 2.50
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132G0630
ref: 132B
BOLT-FLANGED-SMALL
€ 1.50
132C
132G0655
ref: 132C
BOLT-FLANGED-SMALL
€ 2.00
220
220B0306
ref: 220
SCREW-PAN-CROS
€ 0.50
600
600A1000
ref: 600
BALL-STEEL,5/16
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
92049B
920491262
ref: 92049B
SEAL-OIL
€ 4.00
92049C
920491359
ref: 92049C
SEAL-OIL
€ 6.50
92049D
920491366
ref: 92049D
SEAL-OIL,MHSD8X18X10J
€ 12.50
92055
92055086
ref: 92055
RING-O
€ 2.50
92055A
920551343
ref: 92055A
RING-O,5.5X1.5
€ 3.00
