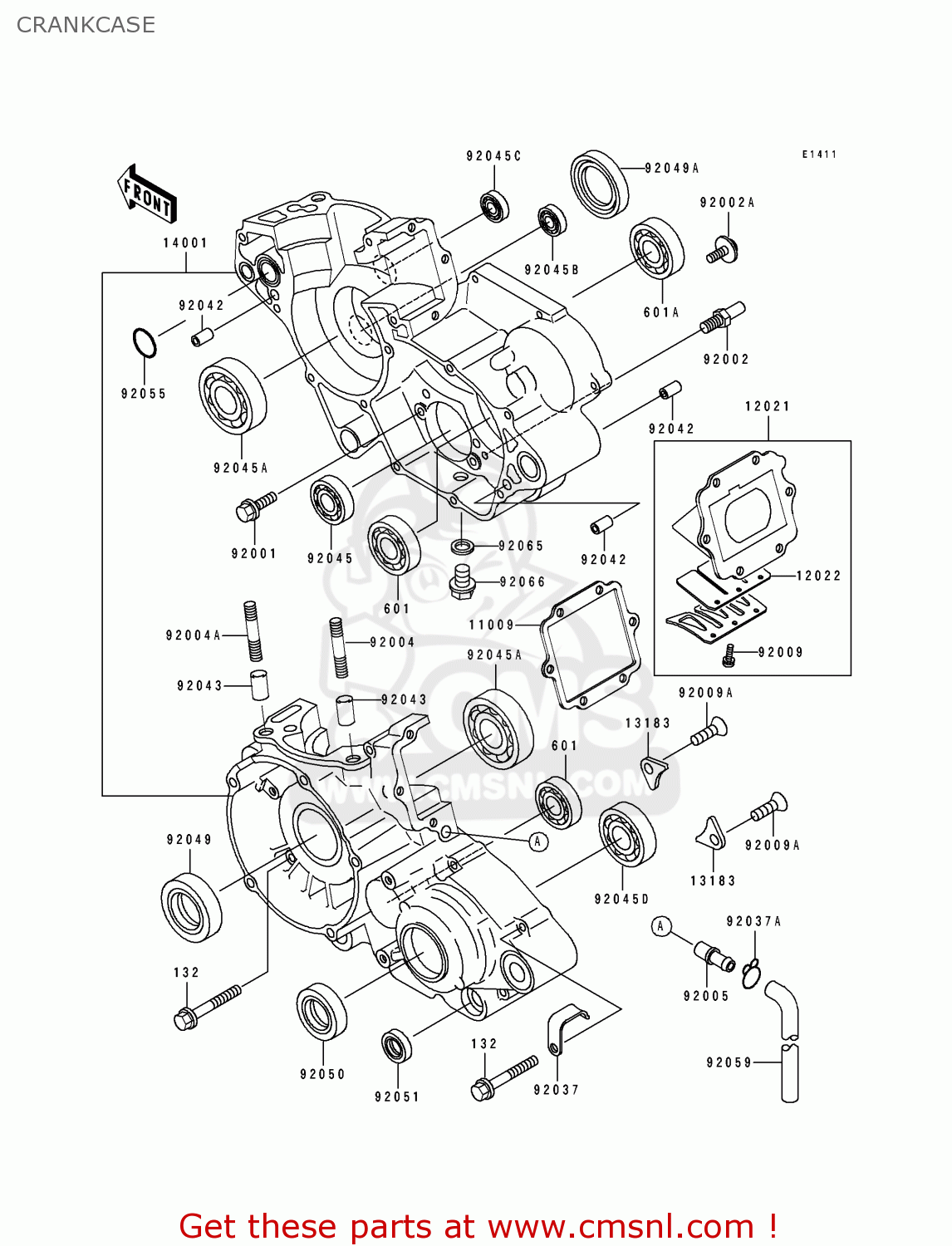

CRANKCASE

ref

part #

description

quantity

132

132G0640
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

601

601B6202
ref: 601

BEARING-BALL,#6202C3

€ 14.50

601A

601B6303
ref: 601A

BEARING-BALL,#6303C3

€ 24.00

11009

110091941
ref: 11009

GASKET,REED VALVE (NAS)

€ 6.00

12021

120211095
ref: 12021

VALVE-ASSY-REED

€ 151.00

12022

120221071
ref: 12022

VALVE-REED

€ 52.50

13183

131831182
ref: 13183

PLATE

€ 3.00

14001

140015313
ref: 14001

SET-CRANKCASE

€ 589.50

92001

920011829
ref: 92001

BOLT,W/WASHER,6X14

€ 2.50

92002

920021601
ref: 92002

BOLT,8X15

€ 5.00

92002A

920021659
ref: 92002A

BOLT

€ 3.00

92004

920041210
ref: 92004

STUD

€ 3.00

92004A

920041211
ref: 92004A

STUD

€ 2.50

92005

920051127
ref: 92005

FITTING,BREATHER

€ 13.00

92009

920091014
ref: 92009

SCREW,REED VALVE

€ 2.00

92009A

920091563
ref: 92009A

SCREW,6X10

€ 2.50

92037

920371318
ref: 92037

CLAMP,HARNESS

€ 4.50

92037A

920371610
ref: 92037A

CLAMP

€ 1.50

92042

92042007
ref: 92042

PIN-DOWEL

€ 4.00

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92045

92045036
ref: 92045

BEARING-BALL,#6905

€ 29.00

92045A

920451209
ref: 92045A

BEARING-BALL

€ 32.50

92045B

920451211
ref: 92045B

BEARING-BALL

€ 11.00

92045C

920451212
ref: 92045C

BEARING-BALL

€ 11.50

92045D

920451252
ref: 92045D

BEARING-BALL,SX04A29C

€ 14.50

92049

920491300
ref: 92049

SEAL-OIL

€ 10.50

92049A

920491301
ref: 92049A

SEAL-OIL

€ 13.50

92050

92050013
ref: 92050

OIL SEAL SC25376

€ 9.50

92051

92051005A
ref: 92051

OIL SEAL,TB13225.5

€ 5.50

92055

92055086
ref: 92055

RING-O

€ 2.50

92059

920591946
ref: 92059

TUBE,6X9X420

€ 9.00

92065

92065058
ref: 92065

GASKET, 10,5X16X1 (NAS)

€ 2.50

92066

920661388
ref: 92066

PLUG,DRAIN

€ 4.00
