MUFFLER
KX125-H1 1990 EUROPE UK AL AS

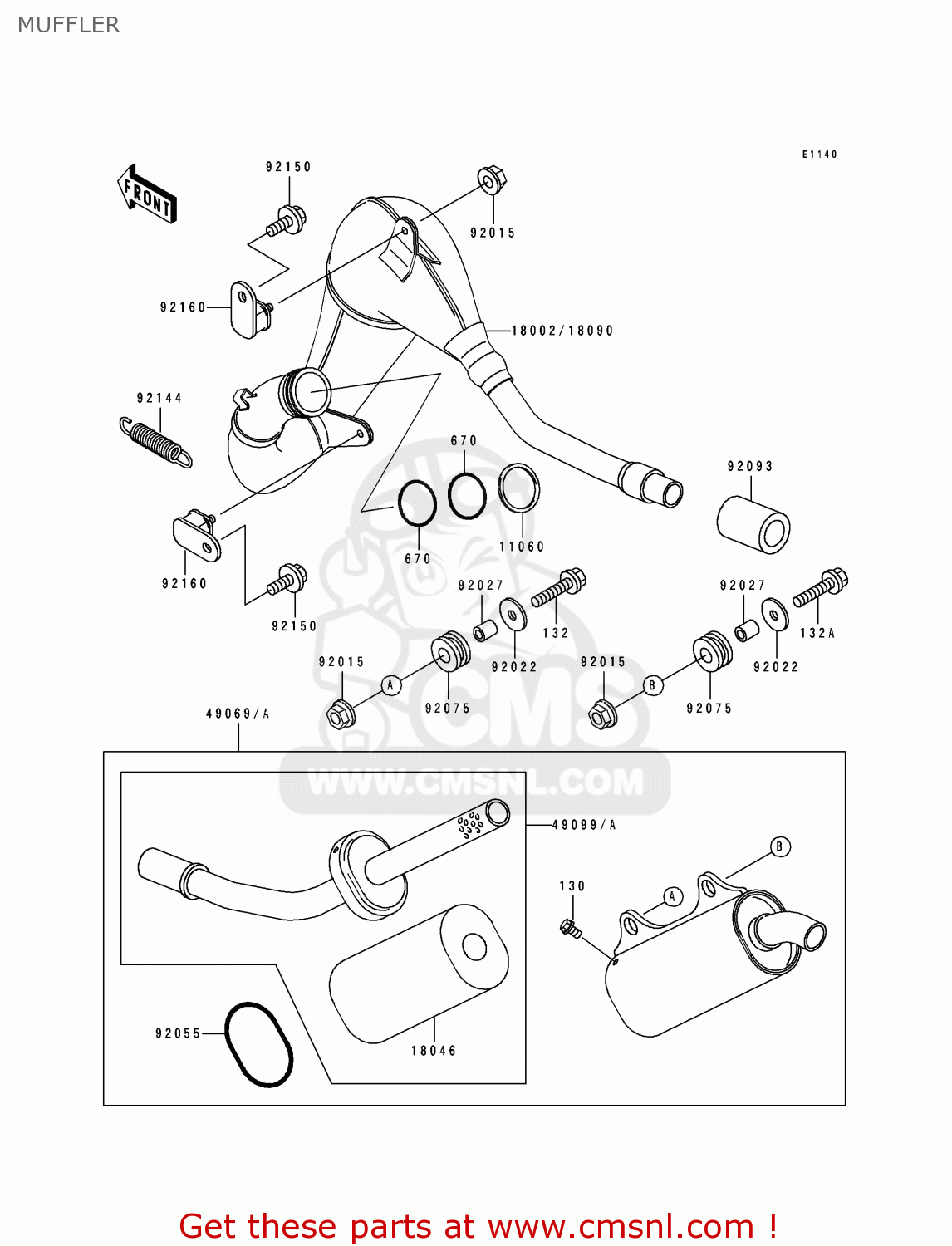

Muffler diagram KX125-H1 1990 EUROPE UK AL AS
MUFFLER KX125-H1 1990 EUROPE UK AL AS
×
prices are in EUR
ref
part #
description
quantity
130
130G0508
ref: 130
BOLT-FLANGED
€ 0.50
132
132G0630
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0640
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
670
670E3039
ref: 670
O RING,39MM
€ 10.50
11060
110091995
ref: 11060
GASKET,EXHAUST PIPE (NAS)
€ 8.50
18002
180021932
ref: 18002
BODY-COMP-MUFFLER
€ 318.00
18046
180461110
ref: 18046
WOOL,MUFFLER BAFFLE P
€ 53.50
49069
490691114
ref: 49069
MUFFLER-ASSY
€ 216.00
49099
490991281
ref: 49099
BAFFLE-PIPE MUFFLER
€ 79.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
92022237
ref: 92022
WASHER-PLAIN
€ 2.50
92027
920271210
ref: 92027
COLLAR,6.8X10X11.5L
€ 7.00
92055
920551461
ref: 92055
RING-O,BAFFLE PIPE
€ 4.50
92075
920751857
ref: 92075
DAMPER,MUFFLER FITTIN
€ 3.50
92093
920931291
ref: 92093
SEAL,MUFFLER CONNECTI
€ 24.50
92144
921441470
ref: 92144
SPRING,EXHAUST CONNEC
€ 4.00
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
92160
921601176
ref: 92160
DAMPER,MUFFLER,FR
€ 19.00
