FRONT FORK(KX125-H1)
KX125-H1 1990 EUROPE UK AL AS

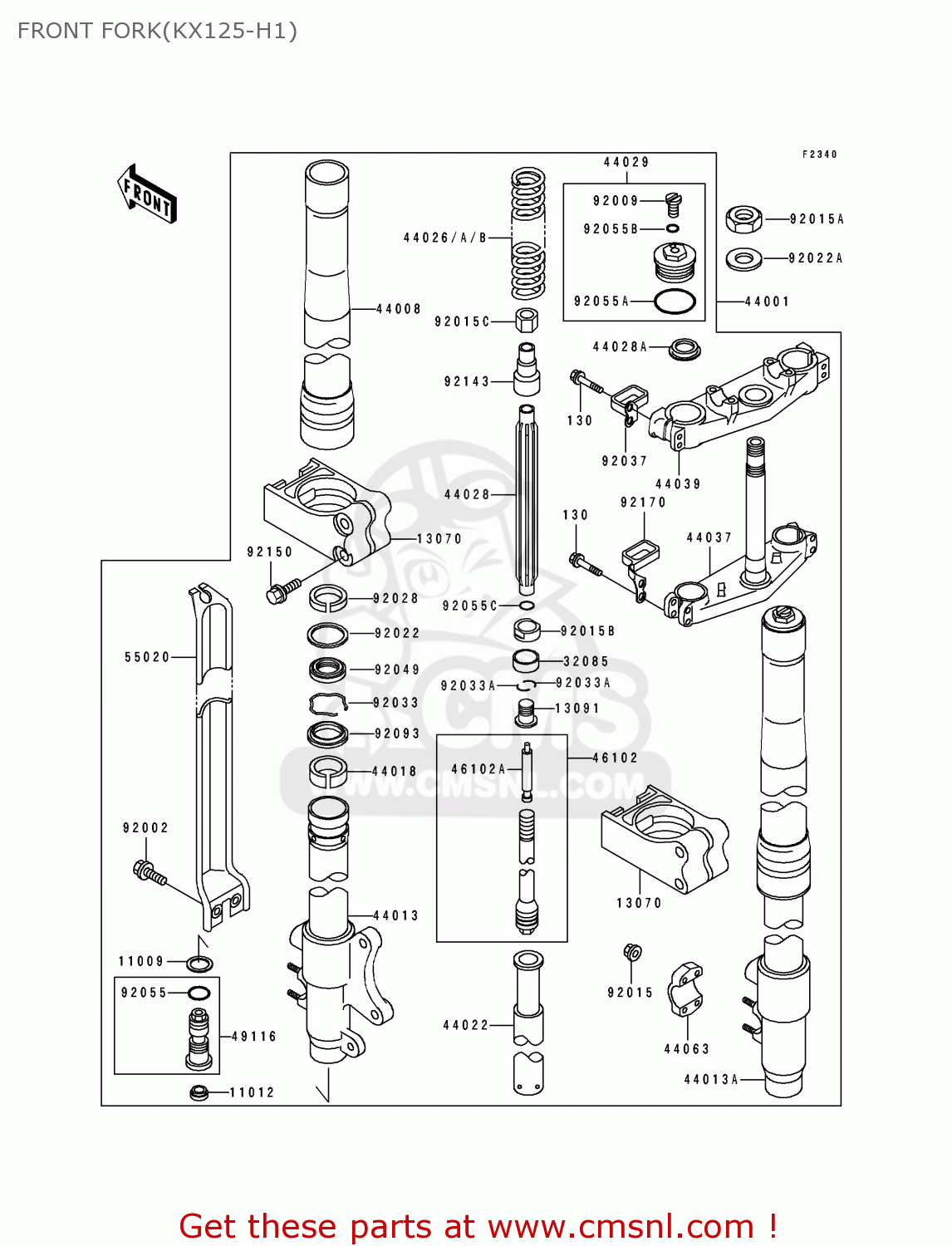

Front fork(kx125-h1) diagram KX125-H1 1990 EUROPE UK AL AS
FRONT FORK(KX125-H1) KX125-H1 1990 EUROPE UK AL AS
×
prices are in EUR
ref
part #
description
quantity
11009
110091791
ref: 11009
GASKET (NAS)
€ 2.50
11012
110121692
ref: 11012
CAP
€ 4.00
13070
130701204
ref: 13070
GUIDE,PROTECTOR
€ 15.50
13091
130911651
ref: 13091
HOLDER
€ 18.00
32085
320851323
ref: 32085
STOPPER
€ 10.50
44001
440011742
ref: 44001
FORK-FRONT
€ 1,955.50
44008
440081004
ref: 44008
PIPE-FORK OUTER
€ 546.50
44013
440131307
ref: 44013
PIPE-FORK INNER,LH
€ 251.50
44013A
440131308
ref: 44013A
PIPE-FORK INNER,RH
€ 251.50
44018
440181054
ref: 44018
PISTON-FORK
€ 33.00
44022
440221248
ref: 44022
CYLINDER-FORK
€ 148.00
44026
440261442
ref: 44026
SPRING-FRONT FORK,K=0
€ 36.00
44026A
440261451
ref: 44026A
SPRING-FRONT FORK,K=0
€ 59.00
44026B
440261453
ref: 44026B
SPRING-FRONT FORK,K=0
€ 66.50
44028
440281069
ref: 44028
GUIDE-FORK SPRING
€ 49.50
44028A
440281070
ref: 44028A
GUIDE-FORK SPRING
€ 4.50
44029
440291141
ref: 44029
SEAT-FORK SPRING
€ 68.50
44037
440371263
ref: 44037
HOLDER-FORK UNDER
€ 441.00
44039
440391189
ref: 44039
HOLDER-FORK UPPER
€ 194.00
44063
440631056
ref: 44063
HOLDER-FRONT AXLE
€ 41.50
46102
461021277
ref: 46102
ROD,FORK
€ 285.00
46102A
461021303
ref: 46102A
ROD,FORK
€ 17.50
49116
491161089
ref: 49116
VALVE-ASSY
€ 106.50
55020
550201384
ref: 55020
GUARD,FORK
€ 32.50
92002
920021460
ref: 92002
BOLT,6X14
€ 3.00
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151653
ref: 92015A
NUT,STEERING STEM,22M
€ 11.50
92015B
920151805
ref: 92015B
NUT
€ 14.50
92015C
920151806
ref: 92015C
NUT
€ 2.50
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
€ 5.50
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92028
920281566
ref: 92028
BUSHING
€ 18.50
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92033A
920331271
ref: 92033A
RING-SNAP
€ 3.50
92037
920371628
ref: 92037
CLAMP
€ 12.50
92049
920491338
ref: 92049
SEAL-OIL
€ 13.00
92055
920551062
ref: 92055
RING-O,FORK TOP CAP
€ 3.00
130
130G0840
ref: 130
BOLT-FLANGED,8X40
€ 1.00
92055A
920551115
ref: 92055A
RING-0,HOSE ASSY
€ 6.50
92055B
920551441
ref: 92055B
RING-O
€ 2.50
92055C
920551442
ref: 92055C
RING-O
€ 4.50
92093
920931305
ref: 92093
SEAL,FORK OUTER TUBE
€ 19.50
92143
921431374
ref: 92143
COLLAR,FORK
€ 18.00
92150
921501270
ref: 92150
BOLT,5X35
€ 3.50
92170
921701088
ref: 92170
CLAMP
€ 19.50
