FRONT FORK
KX125-F1 1988 USA CANADA

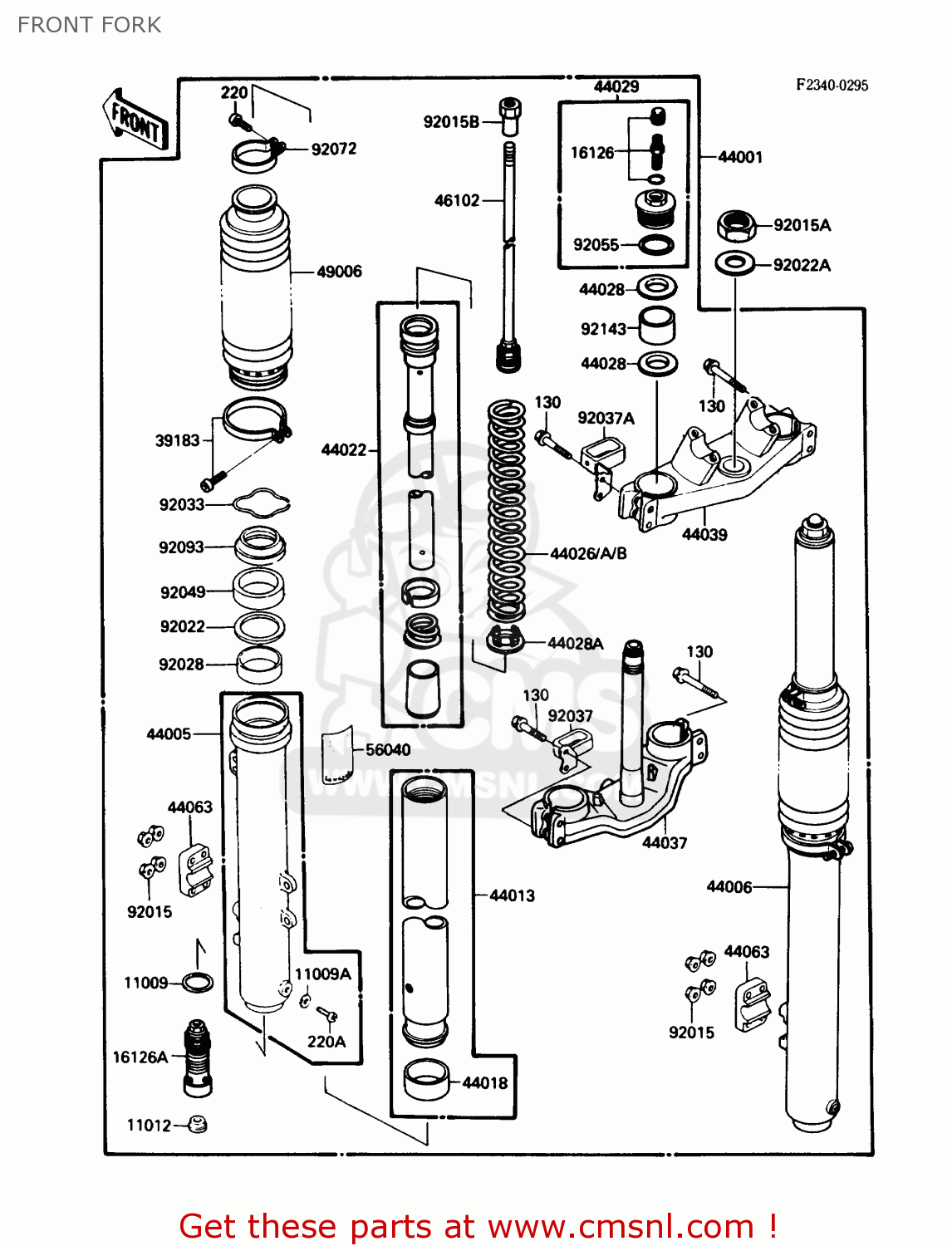

Front fork diagram KX125-F1 1988 USA CANADA
FRONT FORK KX125-F1 1988 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091592
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121381
ref: 11012
CAP,FORK CYLINDER
€ 3.50
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
16126A
161261205
ref: 16126A
VALVE,FORK CYLINDER
€ 172.00
39183
391831054
ref: 39183
BAND-ASSY,BOOT
€ 5.50
44001
440011673
ref: 44001
FORK-FRONT
€ 1,430.00
44005
440051270
ref: 44005
PIPE-LEFT FORK OUTER
€ 301.50
44006
440061267
ref: 44006
PIPE-RIGHT FORK OUTER
€ 246.00
44013
440131276
ref: 44013
PIPE-FORK INNER
€ 215.00
44018
440181005
ref: 44018
BUSHING-FRONT FORK,IN
€ 24.00
44022
440221224
ref: 44022
CYLINDER-FORK
€ 177.50
44026
440261392
ref: 44026
SPRING-FRONT FORK
€ 40.50
44026A
440261393
ref: 44026A
SPRING-FRONT FORK
€ 40.50
44026B
440261395
ref: 44026B
SPRING-FRONT FORK
€ 40.50
44028
440281011
ref: 44028
GUIDE-FORK SPRING
€ 4.00
44028A
440281062
ref: 44028A
GUIDE-FORK SPRING
€ 4.00
44029
440291129
ref: 44029
SEAT-FORK SPRING
€ 52.00
44037
440371237
ref: 44037
HOLDER-FORK UNDER
€ 304.50
44039
440391177
ref: 44039
HOLDER-FORK UPPER
€ 140.50
44063
440631008
ref: 44063
HOLDER-FRONT AXLE
€ 31.00
46102
461021236
ref: 46102
ROD,FORK
€ 99.00
49006
490061239
ref: 49006
BOOT,FORK
€ 46.00
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151653
ref: 92015A
NUT,STEERING STEM,22M
€ 11.50
92015B
920151680
ref: 92015B
NUT
€ 16.50
92022
920221299
ref: 92022
WASHER
€ 5.50
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92028
920281145
ref: 92028
BUSHING
€ 19.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92037
920371627
ref: 92037
CLAMP
€ 19.50
92037A
920371628
ref: 92037A
CLAMP
€ 12.50
92049
920491316
ref: 92049
SEAL-OIL,FORK OUTER T
€ 19.00
92055
920551123
ref: 92055
RING-O
€ 4.00
92072
920721077
ref: 92072
BAND,BOOT
€ 7.00
92093
920931260
ref: 92093
SEAL,FORK DUST
€ 18.00
92143
921431172
ref: 92143
COLLAR,FORK,L=38
€ 3.00
130
130G0840
ref: 130
BOLT-FLANGED,8X40
€ 1.00
220
220B0316
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0408
ref: 220A
SCREW-PAN-CROS
€ 0.50
