CRANKCASE
KX125-F1 1988 USA CANADA

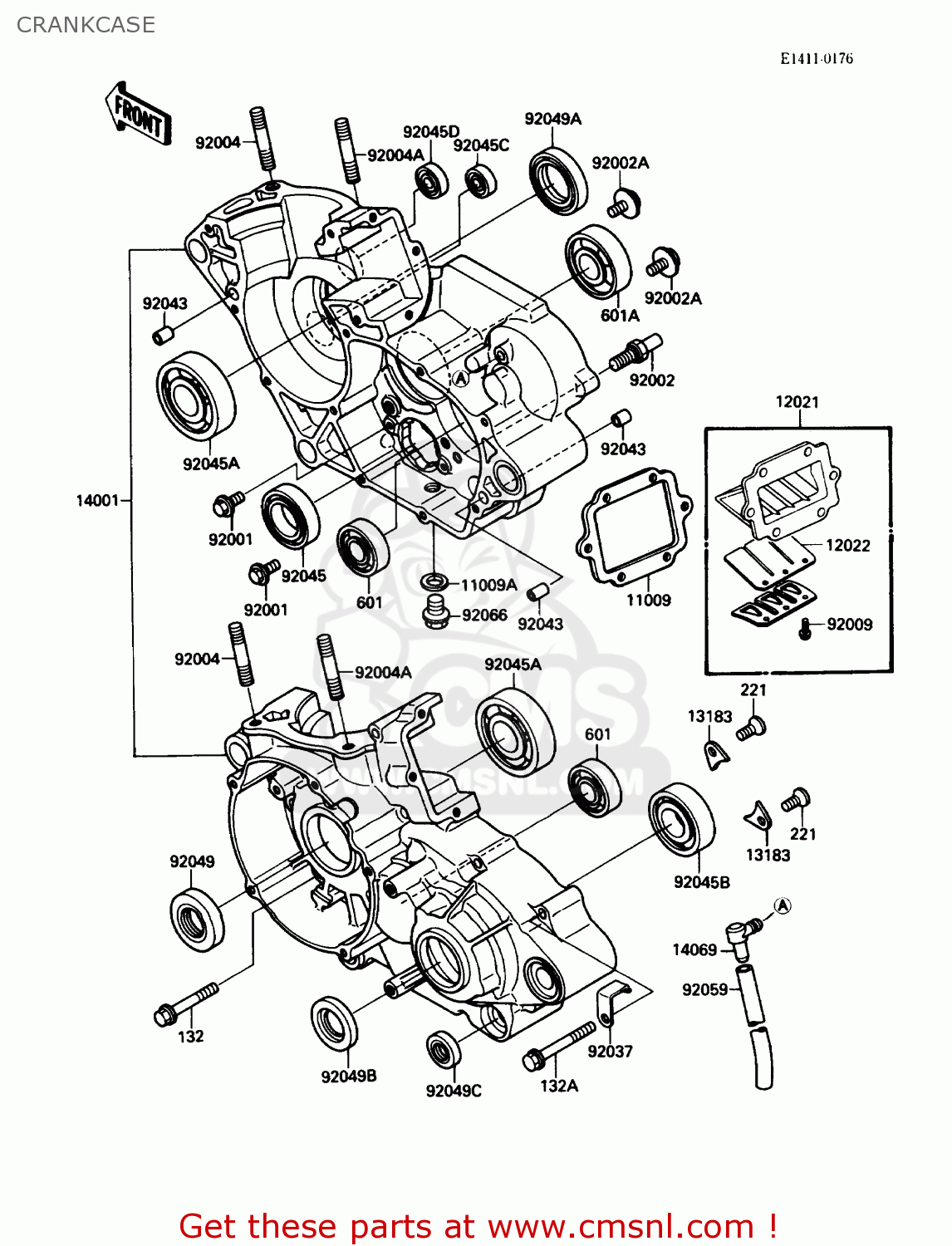

Crankcase diagram KX125-F1 1988 USA CANADA
CRANKCASE KX125-F1 1988 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0640
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132G0650
ref: 132A
BOLT-FLANGED-SMALL
€ 2.00
221
221B0612
ref: 221
SCREW-CNTSNK HD,6X12
€ 1.50
601
601B6202
ref: 601
BEARING-BALL,#6202C3
€ 14.50
601A
601B6303
ref: 601A
BEARING-BALL,#6303C3
€ 24.00
11009
110091263
ref: 11009
GASKET,REED VALVE (MCA)
€ 6.00
11009A
92065058
ref: 11009A
GASKET, 10,5X16X1 (NAS)
€ 2.50
12021
120211069
ref: 12021
VALVE-ASSY-REED
€ 148.00
12022
120221057
ref: 12022
VALVE-REED,CARBON
€ 37.00
13183
131831182
ref: 13183
PLATE
€ 3.00
14001
140015244
ref: 14001
SET-CRANKCASE
€ 493.50
14069
14069003
ref: 14069
BREATHER
€ 7.00
92001
920011829
ref: 92001
BOLT,W/WASHER,6X14
€ 2.50
92002
920021601
ref: 92002
BOLT,8X15
€ 5.00
92002A
920021659
ref: 92002A
BOLT
€ 3.00
92004
920041008
ref: 92004
STUD, 8X25
€ 3.50
92004A
920041142
ref: 92004A
STUD,8X28.5
€ 6.00
92009
920091014
ref: 92009
SCREW,REED VALVE
€ 2.00
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92045
92045036
ref: 92045
BEARING-BALL,#6905
€ 29.00
92045A
920451209
ref: 92045A
BEARING-BALL
€ 32.50
92045B
920451210
ref: 92045B
BEARING-BALL
€ 14.50
92045C
920451211
ref: 92045C
BEARING-BALL
€ 11.00
92045D
920451212
ref: 92045D
BEARING-BALL
€ 11.50
92049
920491300
ref: 92049
SEAL-OIL
€ 10.50
92049A
920491301
ref: 92049A
SEAL-OIL
€ 13.50
92049B
92050013
ref: 92049B
OIL SEAL SC25376
€ 9.50
92049C
92051005A
ref: 92049C
OIL SEAL,TB13225.5
€ 5.50
92059
920591074
ref: 92059
TUBE,6X9X280
€ 9.00
92066
920661241
ref: 92066
PLUG
€ 4.00
