MUFFLER

KX125-C1 1984 UNITED KINGDOM AL USA CN

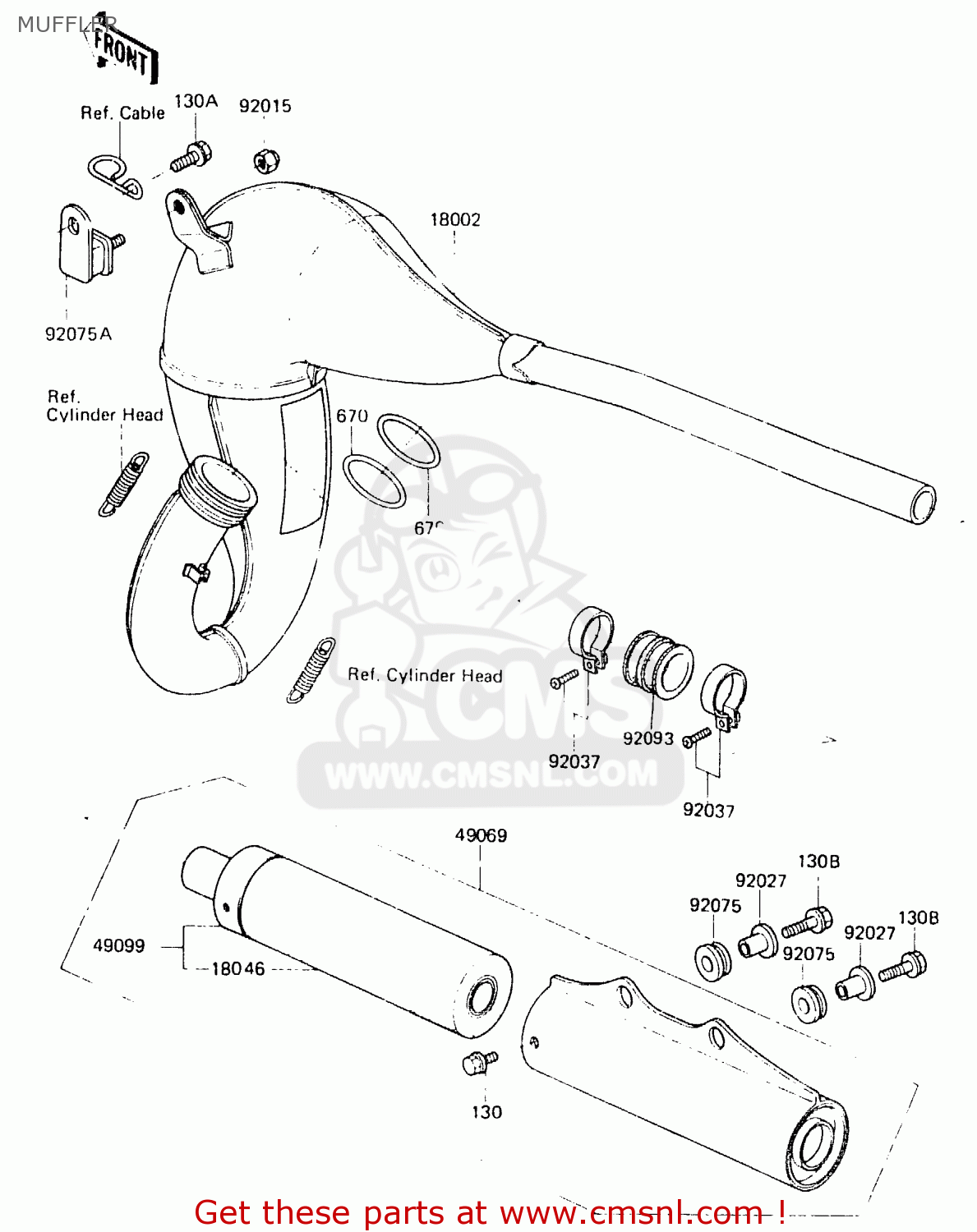

Muffler diagram KX125-C1 1984 UNITED KINGDOM AL USA CN

prices are in EUR

ref

part #

description

quantity

18002

180021463
ref: 18002

BODY-COMP-MUFFLER,F.B

€ 172.50

18046

180461060
ref: 18046

WOOL,MUFFLER BAFFLE P

€ 29.00

49069

490691053
ref: 49069

MUFFLER-ASSY

€ 150.00

49099

490991168
ref: 49099

BAFFLE-PIPE MUFFLER

€ 49.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92027

920271062
ref: 92027

COLLAR,SEAT

€ 4.50

92037

920371129
ref: 92037

CLAMP,40MM

€ 6.00

92075

920751123
ref: 92075

DAMPER,RUBBER

€ 3.00

92075A

920751343
ref: 92075A

DAMPER,MUFFLER

€ 21.00

92093

920931012
ref: 92093

SEAL,EXHAUST PIPE

€ 24.00

130

130G0508
ref: 130

BOLT-FLANGED

€ 0.50

130A

130G0612
ref: 130A

BOLT,FLANGE,6X12

€ 0.50

130B

130G0625
ref: 130B

BOLT,FLANGED,6X25

€ 0.50

670

670E3045
ref: 670

O RING,45MM

€ 11.50

MUFFLER

all assemblies
