CARBURETOR
KX125-C1 1984 UNITED KINGDOM AL USA CN

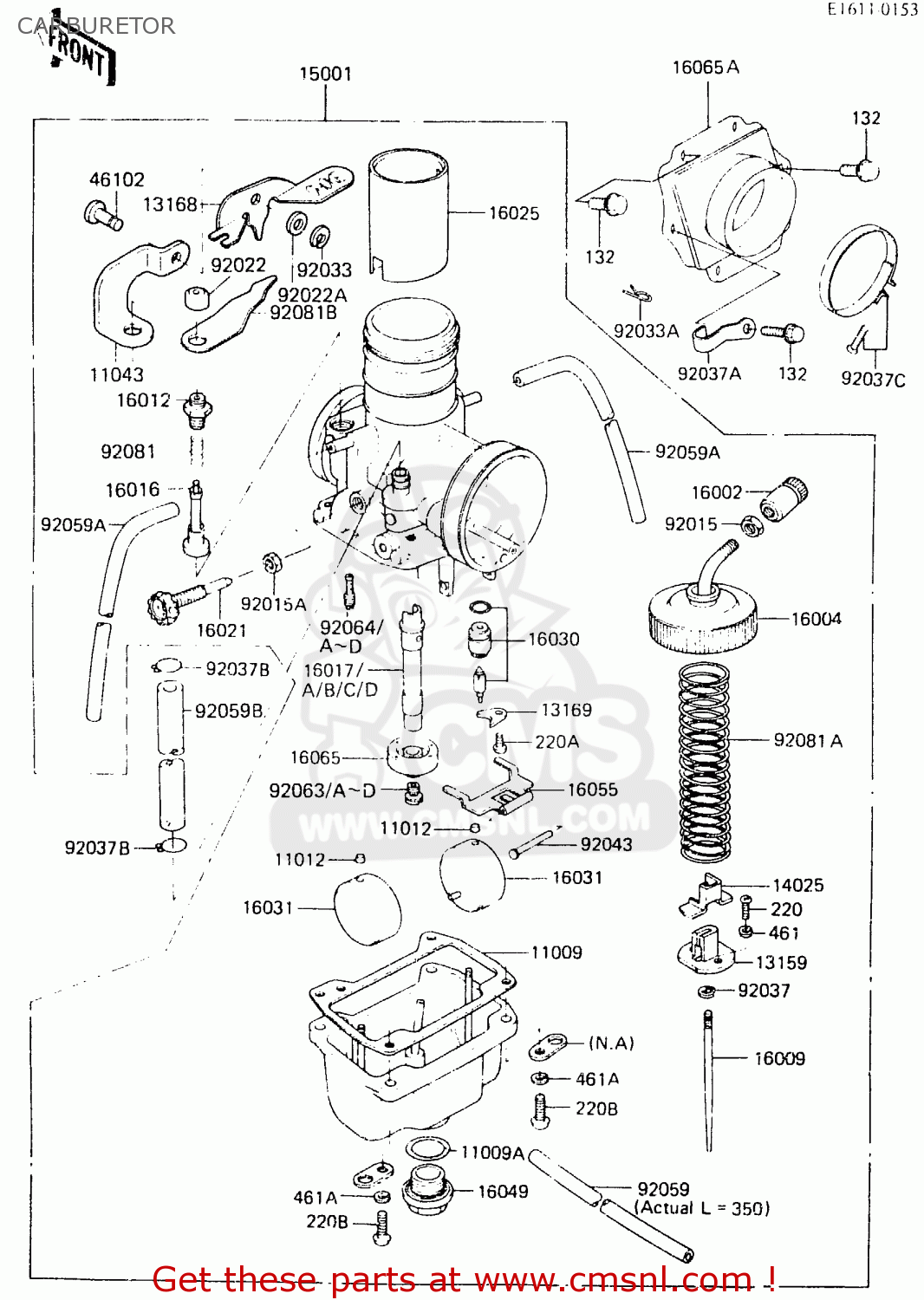

Carburetor diagram KX125-C1 1984 UNITED KINGDOM AL USA CN
CARBURETOR KX125-C1 1984 UNITED KINGDOM AL USA CN
×
prices are in EUR
ref
part #
description
quantity
11009
110091275
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 8.00
11009A
16038009
ref: 11009A
GASKET,MAIN JET COVER
€ 5.50
11012
110121047
ref: 11012
CAP,FLOAT
€ 3.50
11043
110431715
ref: 11043
BRACKET,STARTER PLUNG
€ 16.50
13159
131591010
ref: 13159
CONNECTOR,THROTTLE
€ 9.00
13168
131681233
ref: 13168
LEVER,STARTER
€ 20.50
13169
131691190
ref: 13169
PLATE,LOCK
€ 3.50
14025
140251113
ref: 14025
COVER,THROTTLE VALVE
€ 6.00
15001
160011989
ref: 15001
CARBURETOR
€ 255.00
16002
160021006
ref: 16002
ADJUSTER-CABLE
€ 6.50
16004
160041013
ref: 16004
CAP-CHAMBER,MIXING
€ 34.00
16009
160091226
ref: 16009
NEEDLE-JET,6FL52
€ 19.50
16012
16012019
ref: 16012
CAP-STARTER PLUNGER
€ 12.50
16016
16016011
ref: 16016
PLUNGER
€ 24.50
16017
160171210
ref: 16017
(OPTION)
JET-NEEDLE,Q-6
€ 19.50
16017A
160171248
ref: 16017A
JET-NEEDLE,Q-8
€ 26.50
16017B
160171249
ref: 16017B
(OPTION)
JET-NEEDLE,Q-4
€ 18.50
16017C
160171250
ref: 16017C
(OPTION)
JET-NEEDLE,R-2
€ 26.50
16017D
160171251
ref: 16017D
(OPTION)
JET-NEEDLE,R-0
€ 18.00
16021
160211108
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16025
160251114
ref: 16025
VALVE-THROTTLE,CA.3.0
€ 112.50
16030
160301020
ref: 16030
VALVE-FLOAT,3.3
€ 33.00
16031
16031029
ref: 16031
FLOAT
€ 40.00
16049
16049006
ref: 16049
COVER-MAIN JET
€ 10.50
16055
16055009
ref: 16055
ARM-FLOAT
€ 12.50
16065
160651045
ref: 16065
HOLDER-CARBURETOR,NEE
€ 40.50
16065A
160651070
ref: 16065A
HOLDER-CARBURETOR
€ 45.50
46102
461021121
ref: 46102
ROD
€ 4.00
92015
16003004
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92015A
16003006
ref: 92015A
NUT-CABLE ADJUST LOCK
€ 4.50
92022
16039015
ref: 92022
CAP,STARTER PLUNGER
€ 4.50
92022A
920221586
ref: 92022A
WASHER
€ 4.00
92033
920331171
ref: 92033
RING-SNAP
€ 2.50
92033A
92036018
ref: 92033A
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
92037016
ref: 92037A
CLAMP,WIRING HARNESS
€ 1.50
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92037C
920371484
ref: 92037C
CLAMP,CARBURETOR HOLD
€ 7.50
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92059
920591142
ref: 92059
TUBE,3.5X6.5X410
€ 16.50
92059A
920591292
ref: 92059A
TUBE,4X7X400,OVERFLOW
€ 5.50
92059B
920591431
ref: 92059B
TUBE,5.8X10.8X230
€ 4.50
92063
92063028
ref: 92063
(OPTION)
JET-MAIN,#260
€ 8.50
92063A
92063029
ref: 92063A
(OPTION)
JET-MAIN,#270
€ 10.00
92063B
92063030
ref: 92063B
JET-MAIN,#280
€ 9.00
92063C
92063031
ref: 92063C
(OPTION)
JET-MAIN,#290
€ 8.50
92063D
92063045
ref: 92063D
(OPTION)
MAIN JET #300
€ 6.00
92064
92064021
ref: 92064
(OPTION)
PILOT JET #20 ISO
€ 12.00
92064A
92064022
ref: 92064A
(OPTION)
PILOT JET #30 ISO
€ 11.50
92064B
92064024
ref: 92064B
JET-PILOT,#40
€ 14.00
92064C
92064040
ref: 92064C
(OPTION)
JET-PILOT,#22.5
€ 11.50
92064D
920641033
ref: 92064D
(OPTION)
JET-PILOT,#27.5
€ 11.50
92081
920811181
ref: 92081
SPRING,STARTER PLUNG
€ 3.00
92081A
920811432
ref: 92081A
SPRING,THROTTLE VALVE
€ 9.50
92081B
920811625
ref: 92081B
SPRING,PLATE
€ 11.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0406
ref: 220A
SCREW-PAN-CROS,4X6
€ 2.50
220B
220B0516
ref: 220B
SCREW-PAN-CROS
€ 2.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
€ 0.50
461A
461F0500
ref: 461A
WASHER-SPRING,5MM
€ 0.50
