TRANSMISSION/CHANGE DRUM ('76-'8
KV75A8 1979

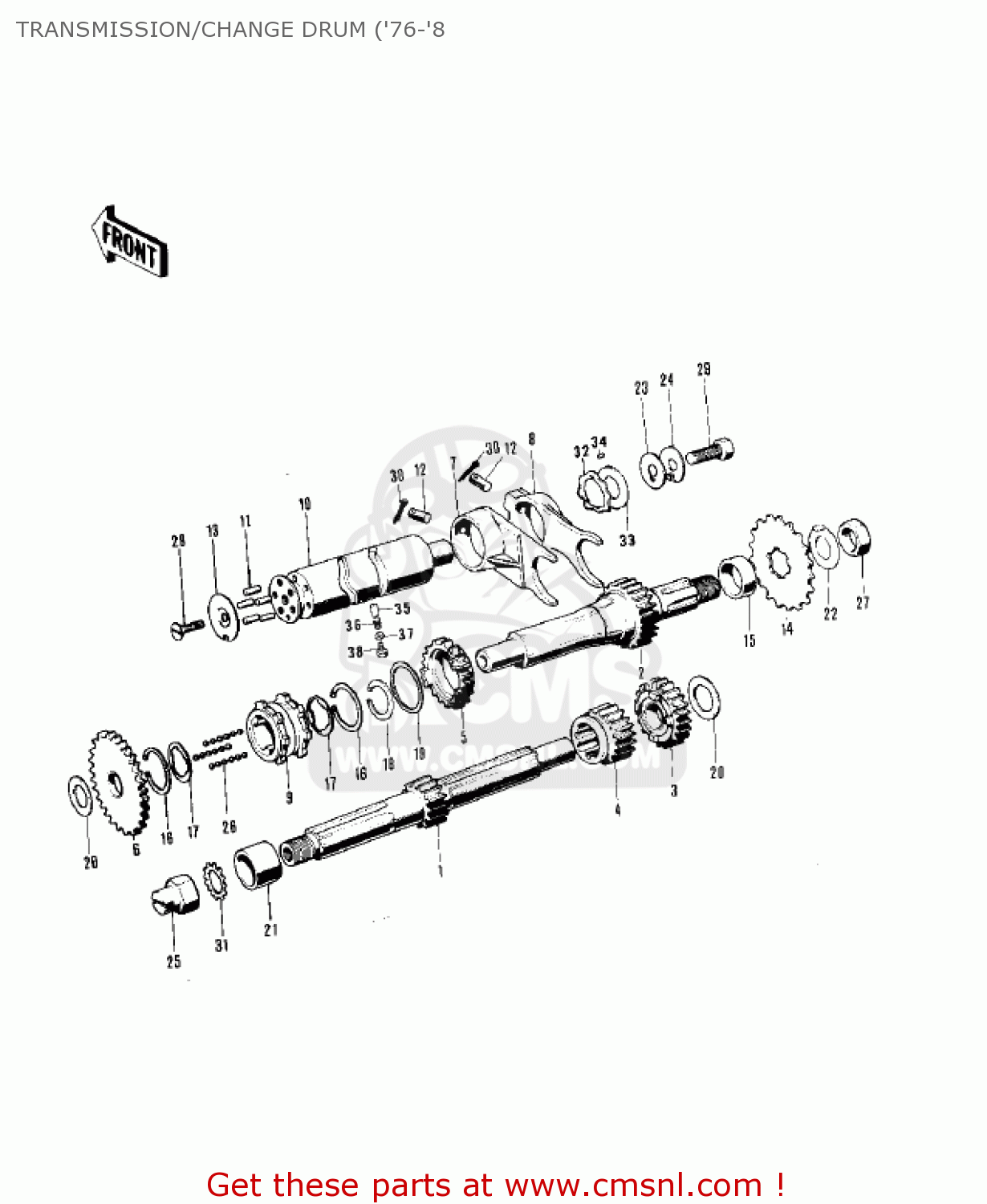

Transmission/change drum ('76-'8 diagram KV75A8 1979
TRANSMISSION/CHANGE DRUM ('76-'8 KV75A8 1979
×
prices are in EUR
ref
part #
description
quantity
1
13127030
ref: 1
11 TEETH
SHAFT-DRIVE
€ 112.00
2
13128029
ref: 2
22 TEETH
SHAFT-OUTPUT
€ 71.00
3
13136034
ref: 3
21 TEETH
TOP GEAR-DRIVE SHAFT
€ 34.00
4
13130003
ref: 4
17 TEETH
2ND GEAR,DRIVE
€ 34.00
5
13131032
ref: 5
26 TEETH
2ND GEAR-OUTPUT SHAFT
€ 65.50
6
13129035
ref: 6
32 TEETH
LOW GEAR-OUTPUT SHAFT
€ 89.00
7
13140033
ref: 7
FORK-SELECTOR
€ 155.50
8
13140034
ref: 8
FORK-SELECTOR
€ 54.50
9
13139004
ref: 9
SHIFTER
€ 115.50
10
132391014
ref: 10
DRUM ASSY,GEAR CHANGE
€ 89.50
10
132391014
ref: 10
KV75-A7,A8
DRUM ASSY,GEAR CHANGE
€ 89.50
10
132391014
ref: 10
KV75-A9
DRUM ASSY,GEAR CHANGE
€ 89.50
11
92043004
ref: 11
PIN-GEAR CHANGE DRUM
€ 2.00
11
92043011
ref: 11
KV75-A8
GEAR CHANGE DRUM PIN
€ 7.50
12
92043005
ref: 12
PIN,DOWEL,8X15
€ 4.50
13
13142002
ref: 13
HOLDER,CHANGE DRUM PI
€ 4.00
14
13144002
ref: 14
13 TEETH
SPROCKET-OUTPUT,13T
€ 26.50
15
92027001
ref: 15
COLLAR-OIL SEAL
€ 7.50
16
92033003
ref: 16
CIRCLIP,26MM
€ 3.50
17
92033004
ref: 17
RING-SNAP
€ 3.50
18
92033025
ref: 18
CIRCLIP,25MM
€ 3.00
19
92022106
ref: 19
WASHER,22.5X30X1
€ 2.50
20
92022174
ref: 20
WASHER-PLAIN
€ 0.50
21
92027002
ref: 21
COLLAR-CLUTCH PINION
€ 4.50
22
92022002
ref: 22
WASHER,CLAW,12.5X24X0
€ 2.50
23
92022175
ref: 23
WASHER-PLAIN,8MM
€ 2.00
24
92024028
ref: 24
WASHER-LOCK,8MM
€ 2.00
25
92015046
ref: 25
NUT-OIL PUMP
€ 8.00
26
600A0500
ref: 26
BALL-STEEL,5/32
€ 0.50
27
314B1200
ref: 27
NUT-HEX-FINE
€ 1.00
27
314B1200
ref: 27
KV75-A9
NUT-HEX-FINE
€ 1.00
28
212B0616
ref: 28
SCREW-CNTSNK HD,6X16
€ 2.00
28
221B0616
ref: 28
KV75-A8
SCREW-CNTSNK HD,6X16
€ 0.50
29
113B0818
ref: 29
BOLT-HEX HEAD,8X18
€ 2.50
29
115G0818
ref: 29
KV75-A7
BOLT SMALL-UPSET
€ 2.50
30
550D3020
ref: 30
PIN-COTTER,3.0X20
€ 2.00
31
464H1200
ref: 31
WASHER-TOOTHED,12MM
€ 2.00
32
13145004
ref: 32
CHANGE DRUM OPERATING DISC
€ 19.00
32
13145007
ref: 32
KV75-A7
DISC, CHANGE DRUM
€ 7.50
33
92026106
ref: 33
WASHER,THRUST
€ 5.50
34
610A0406
ref: 34
ROLLER,4X6
€ 2.50
35
92043076
ref: 35
PIN-NEUTRAL PISTON
€ 8.00
36
92081112
ref: 36
SPRING
€ 4.00
37
92065090
ref: 37
GASKET (NAS)
€ 2.00
38
92001131
ref: 38
BOLT,10MM
€ 14.00
