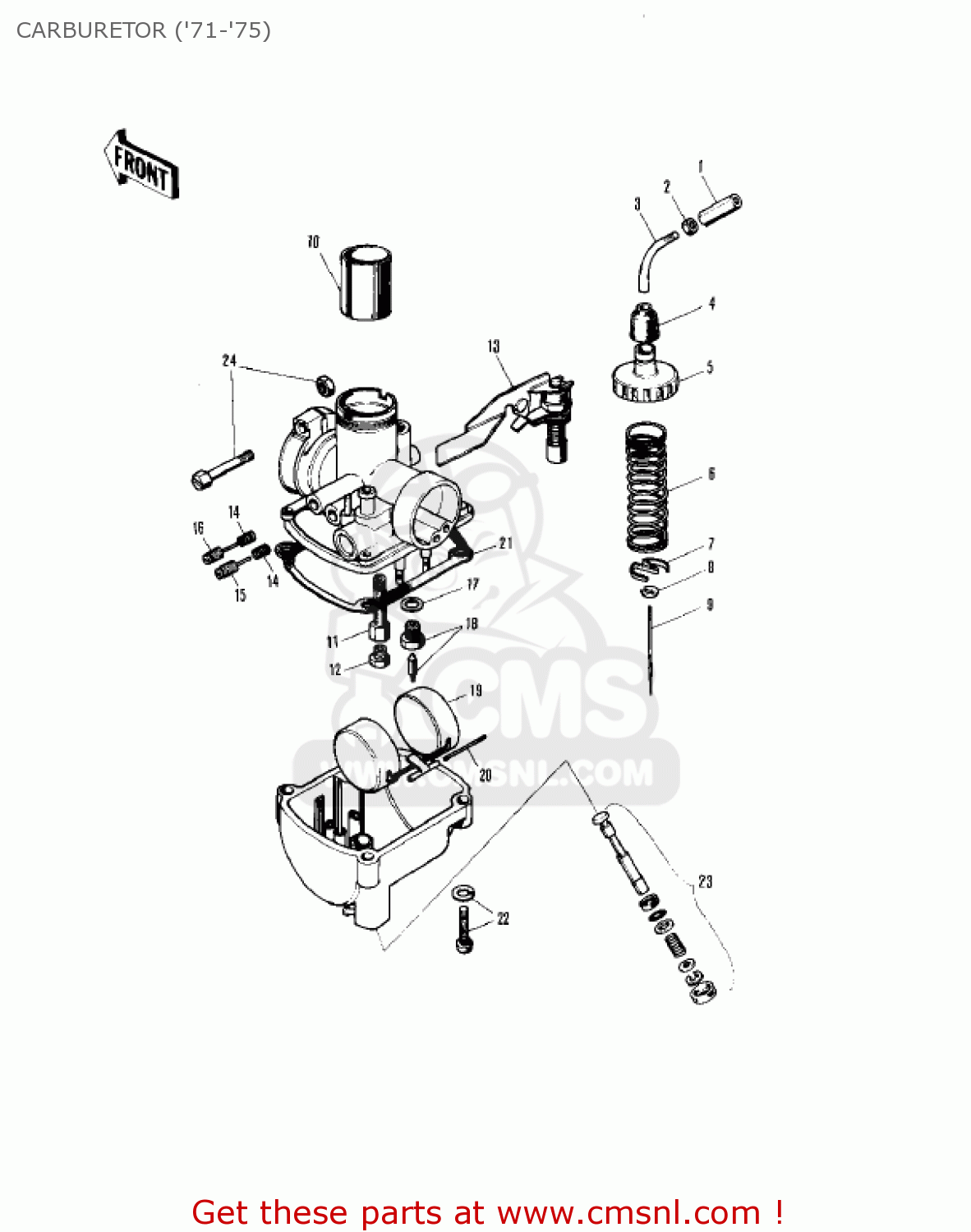

CARBURETOR ('71-'75)

ref

part #

description

quantity

?

16001129
ref: ?
Includes items 1 - 2

CARBURETOR ASSY

€ 97.50

1

16002004
ref: 1

CABLE ADJUSTER

€ 8.00

2

16003004
ref: 2

NUT-CABLE ADJUST LOCK

€ 4.50

3

16077003
ref: 3

GUIDE

€ 0.00

4

16037001
ref: 4

CAP-RUBBER

€ 6.00

5

16005001
ref: 5

TOP-MIXING CHAMBER

€ 4.50

6

16006001
ref: 6

SPRING,THROTTLE VALVE

€ 7.50

7

16007001
ref: 7

SPRING SEAT,THRTL VLV

€ 6.50

8

16008010
ref: 8

CLAMP,E-TYPE

€ 5.00

9

16009042
ref: 9
3G9

JET NEEDLE 3G09

€ 20.50

10

16025038
ref: 10
C.A 20

VALVE-THROTTLE CA2.0

€ 67.00

11

16017051
ref: 11
E-O

NEEDLE JET E-O

€ 24.00

12

92063110
ref: 12

JET,MAIN,#70M

€ 25.00

13

16016009
ref: 13

PLUNGER-STARTER

€ 35.50

14

16022007
ref: 14

SPRING-THR STOP SCREW

€ 5.50

15

16021001
ref: 15

SCREW,THROTTLE STOP

€ 9.00

16

16014002
ref: 16

SCREW-PILOT AIR

€ 11.00

17

16029002
ref: 17

WASHER-VALVE SEAT

€ 2.50

18

16030002
ref: 18

FLOAT VALVE ASSY

€ 22.00

19

16031014
ref: 19

FLOAT

€ 33.00

20

16032003
ref: 20

FLOAT PIN

€ 4.00

21

16019011
ref: 21

GASKET,FLOAT CHAMBER (NAS)

€ 10.00

22

16033012
ref: 22

SCREW-FLOAT CHAMBER

€ 1.00

23

16064001
ref: 23

EJECTOR ASSY-FUEL

€ 39.00

24

16010005
ref: 24

SCREW-CLAMP

€ 2.00
